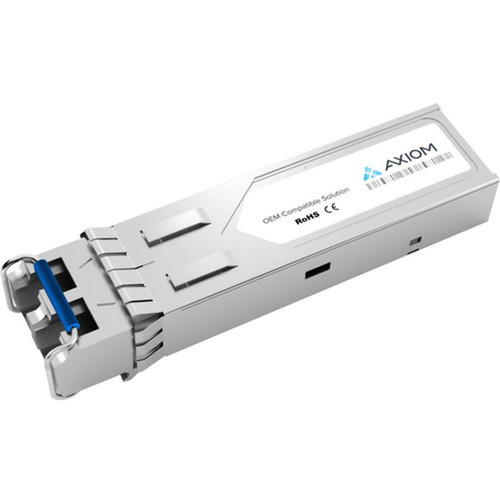

7SN-000-AX Axiom 1000BASE-LX SFP Transceiver for Accedian - Single-Mode LC - 10 km - 1 Gbit/s
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver implements the 1000BASE-LX standard for Gigabit Ethernet over optical fiber. The LC duplex connector interface provides a reliable physical connection to single-mode fiber optic cabling, while the 1310nm wavelength laser transmitter ensures optimal performance for long-distance applications.
The module operates at a maximum data transfer rate of 1 Gbit/s, delivering ten times the throughput of traditional Fast Ethernet connections. This performance level supports bandwidth-intensive applications including data backup, video streaming, and server-to-server communications without creating network bottlenecks.
Key Product Advantages
This transceiver combines extended reach with high-speed performance in a standardized form factor. The 10-kilometer transmission distance eliminates the need for intermediate signal regeneration in most campus and metropolitan deployments, reducing both equipment costs and potential failure points in the network path.
Long-Distance Connectivity
Supports fiber runs up to 10 kilometers, enabling connections between buildings, across campuses, and throughout metropolitan areas without signal degradation.
- Eliminates distance limitations of copper Ethernet
- Reduces need for intermediate networking equipment
- Maintains signal integrity over extended fiber runs
High-Speed Performance
Delivers 1 Gbit/s throughput for bandwidth-intensive applications, providing ten times the performance of standard 100BASE Ethernet connections.
- Supports data-intensive applications
- Reduces network congestion
- Future-proofs network infrastructure
Standards Compliance
MSA compliance ensures interoperability with Accedian equipment and other standards-based networking platforms, simplifying deployment and maintenance.
- Guaranteed compatibility with Accedian platforms
- Simplifies inventory management
- Reduces deployment risks
Deployment / Use Cases
This 1000BASE-LX SFP transceiver is engineered for optical network infrastructure where extended distance and reliable high-speed connectivity are paramount. Its single-mode fiber compatibility makes it particularly suitable for long-haul connections that exceed the capabilities of multimode fiber or copper cabling.
Common deployment scenarios include connecting network switches between buildings on a university campus, linking data centers across a metropolitan area, and establishing backbone connections in enterprise networks. The module also serves well in service provider environments for connecting customer premises equipment to central offices or for building out fiber-to-the-business installations.
Campus Network Backbones
Connect academic buildings, administrative offices, and research facilities across university and corporate campuses with reliable high-speed fiber links.
Data Center Interconnects
Establish connections between data center facilities or between server racks within large data centers where distance and bandwidth requirements exceed copper capabilities.
Highlights
- 1000BASE-LX SFP transceiver specifically compatible with Accedian network equipment
- Single-mode fiber optic support for transmission distances up to 10 kilometers
- LC duplex connector interface for reliable fiber optic connections
- 1 Gbit/s maximum data transfer rate for high-performance networking
- MSA compliant design ensures broad compatibility and interoperability
- Lifetime warranty provides long-term reliability assurance
- Hot-swappable form factor enables easy installation and replacement
- Ideal for data networking and optical network applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 7SN-000-AX |
| Brand Name | Axiom |
| Product Model | 7SN-000-AX |
| Product Name | 1000BASE-LX SFP Transceiver for Accedian - 7SN-000 |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber optic cable does this SFP transceiver support?
This transceiver supports single-mode fiber optic cable, which uses a single wavelength of light to transmit data over longer distances with minimal signal loss. Single-mode fiber is ideal for connections up to 10 kilometers, making it suitable for campus networks, metropolitan area links, and other applications requiring extended reach beyond what multimode fiber or copper cabling can provide.
What is the maximum transmission distance supported by this transceiver?
The Axiom 7SN-000-AX supports transmission distances up to 10 kilometers (approximately 6.21 miles) over single-mode fiber optic cable. This extended reach enables connections between buildings on large campuses, links between data centers in metropolitan areas, and other applications where network equipment must be separated by significant distances while maintaining high-speed connectivity.
Is this SFP transceiver compatible with non-Accedian equipment?
This transceiver is Multi-Source Agreement (MSA) compliant, which means it adheres to industry standards for SFP form factors and electrical interfaces. While specifically designed and tested for Accedian equipment, MSA compliance typically ensures compatibility with other standards-based networking platforms that accept 1000BASE-LX SFP modules. However, for guaranteed performance, we recommend verifying compatibility with your specific networking equipment before deployment.
What data transfer rate does this transceiver support?
This 1000BASE-LX SFP transceiver supports a maximum data transfer rate of 1 Gbit/s (Gigabit per second), which is ten times faster than traditional 100 Mbps Fast Ethernet connections. This Gigabit Ethernet performance enables bandwidth-intensive applications including large file transfers, video streaming, data backups, and server-to-server communications without creating network bottlenecks or performance limitations.
