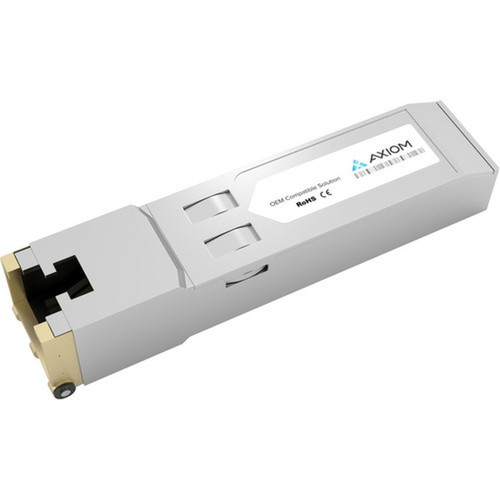

Axiom JC009A-AX 1000BASE-T SFP Transceiver for HP - RJ-45 Gigabit Ethernet - MSA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on 1000Base-T technology, delivering full-duplex Gigabit Ethernet performance over Category 5e or better twisted-pair cabling. The single RJ-45 port supports auto-negotiation and auto-MDI/MDIX, simplifying installation by automatically detecting and adjusting to network speed and cable type.
Built to Multi-Source Agreement standards, the JC009A-AX ensures mechanical and electrical compatibility with HP devices that utilize SFP slots. The module is environmentally friendly, constructed with materials that meet regulatory requirements for reduced ecological impact.
Key Product Advantages
This transceiver offers a straightforward upgrade path for networks needing additional copper-based Gigabit ports without replacing entire switches. Its plug-and-play design minimizes configuration overhead, while the lifetime warranty provides long-term reliability assurance for critical infrastructure deployments.
Cost-Effective Expansion
Leverage existing copper cabling to add Gigabit ports, avoiding the expense of fiber optics and associated transceivers.
- Uses standard Cat5e/Cat6 cables
- No separate media converters needed
HP Compatibility
Specifically tested and validated for HP networking equipment, ensuring stable operation in HP switch and router environments.
- Designed for HP SFP slots
- MSA compliance guarantees fit
Simplified Management
Hot-swappable design allows installation or replacement without powering down the network device, maintaining uptime during maintenance.
- Supports live insertion/removal
- Auto-negotiates link parameters
Deployment / Use Cases
Ideal for expanding Gigabit Ethernet connectivity in enterprise networks, data centers, and campus environments where copper cabling is already deployed. The JC009A-AX transceiver enables network administrators to populate unused SFP slots with copper interfaces, maximizing switch port utilization without investing in new fiber links.
Common applications include connecting servers, workstations, or access switches to core networking gear over distances up to 100 meters per Ethernet segment. It also serves as a backup or alternative interface for network devices that primarily use fiber, providing flexibility in mixed-media environments.
Switch Port Expansion
Add Gigabit RJ-45 ports to HP switches with available SFP slots, extending connectivity for additional devices or network segments.
Copper Uplinks
Establish Gigabit uplinks between switches or routers using existing twisted-pair infrastructure, simplifying network hierarchy upgrades.
Highlights
- 1000Base-T technology for Gigabit Ethernet over twisted pair
- RJ-45 connector supports standard copper cabling
- MSA compliant for broad HP equipment compatibility
- Hot-swappable SFP form factor for easy installation
- Lifetime warranty for long-term reliability
- Environmentally friendly construction
- Auto-negotiation and auto-MDI/MDIX support
- Single-port design for focused connectivity expansion
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | JC009A-AX |
| Brand Name | Axiom |
| Product Name | 1000BASE-T SFP Transceiver for HP - JC009A |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 1 x RJ-45 1000Base-T LAN |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this SFP transceiver?
The Axiom JC009A-AX supports Gigabit Ethernet with a maximum data transfer rate of 1000 Mbps (1 Gbps) over twisted-pair cabling using 1000Base-T technology. This enables high-speed network connections suitable for bandwidth-intensive applications like file transfers, video streaming, and virtual desktop infrastructure.
Is this transceiver compatible with my HP switch?
Yes, this transceiver is designed for HP networking equipment and is MSA compliant, ensuring mechanical and electrical compatibility with HP switches and routers that have standard SFP slots. It has been specifically tested for HP environments, providing a reliable drop-in solution for expanding copper connectivity.
What type of cabling does this transceiver require?
This transceiver uses an RJ-45 connector and supports twisted-pair copper cabling, such as Category 5e, 6, or 6a Ethernet cables. It is designed for standard LAN deployments where copper infrastructure is already in place, allowing Gigabit connectivity over distances up to 100 meters per segment without needing fiber optics.
Does this SFP module support hot-swapping?
Yes, the JC009A-AX is hot-swappable, meaning you can install or remove it from an SFP slot without powering down the networking device. This feature minimizes network downtime during maintenance or upgrades, allowing for seamless expansion or replacement while the switch remains operational.
