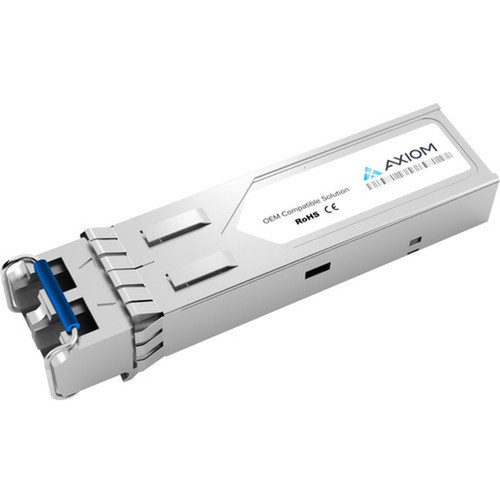

AXIOM MEMORY E1MG-LHB-AX Axiom 1000BASE-ZX SFP Transceiver for Brocade - 120km Single-Mode LC Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This 1000BASE-ZX SFP transceiver operates at 1550nm wavelength for single-mode fiber transmission, supporting data rates up to 1.25Gbps. The module features digital diagnostics monitoring (DDM) capabilities that provide real-time performance data including temperature, voltage, laser bias current, transmit power, and receive power for proactive network management.
The transceiver complies with MSA (Multi-Source Agreement) standards, ensuring mechanical and electrical compatibility with a wide range of networking equipment. With a power consumption of less than 1W, it operates efficiently while maintaining signal integrity over extended distances.
Relevant factors for this section include Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This transceiver combines extended reach with reliable performance in a compact, energy-efficient package. The 120km transmission distance eliminates the need for intermediate signal regeneration in most deployment scenarios, reducing infrastructure complexity and operational costs.
Brocade Compatibility
Specifically engineered for Brocade networking equipment, this transceiver ensures seamless integration and reliable performance in Brocade switch and router environments without compatibility concerns.
- Direct replacement for Brocade SFP modules
- No firmware updates required
- Full feature support
Long-Distance Performance
The 120km reach capability enables connectivity between geographically dispersed sites without signal degradation, maintaining data integrity across metropolitan and regional networks.
- Single-mode fiber optimization
- Low dispersion characteristics
- Stable signal over distance
Deployment / Use Cases
This 1000BASE-ZX SFP transceiver serves as a critical component in network infrastructure requiring extended fiber connectivity. Its 120km reach makes it particularly valuable for connecting separate buildings within a campus, linking data centers across a metropolitan area, or establishing point-to-point connections between remote facilities.
Common deployment scenarios include backbone connections between core switches, uplinks from distribution to core layers, and inter-building links in educational, healthcare, and corporate campuses. The module also supports service provider applications such as connecting central offices to remote terminals or establishing last-mile fiber connections.
Campus Network Backbone
Connect multiple buildings across large campuses while maintaining high-speed Gigabit Ethernet performance and minimizing latency between network segments.
Data Center Interconnect
Establish reliable links between geographically separated data centers for disaster recovery, load balancing, and data replication applications.
Physical Profile
The compact SFP form factor measures just 0.53" wide by 0.49" high by 2.21" deep (13.40mm x 12.50mm x 56.10mm), allowing high-density deployment in switch chassis with limited space. Weighing only 0.59 ounces (16.78 grams), the module adds minimal load to equipment while the durable construction ensures reliable operation in various environmental conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.49" (12.50 mm), 0.53" (13.40 mm), 2.21" (56.10 mm), 0.59 oz (16.78 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.21" (56.10 mm)
- Height
- 0.49" (12.50 mm)
- Weight
- 0.59 oz (16.78 g)
Highlights
- 1000BASE-ZX SFP transceiver optimized for Brocade networking equipment
- 120km maximum transmission distance over single-mode fiber
- LC connector interface for secure fiber termination
- Gigabit Ethernet performance at 1.25Gbps data rate
- MSA compliant for broad equipment compatibility
- Digital diagnostics monitoring (DDM) capabilities
- Compact SFP form factor for high-density deployment
- Environmentally friendly design and manufacturing
- Hot-swappable for easy installation and maintenance
- 1550nm wavelength operation for single-mode fiber
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | E1MG-LHB-AX |
| Brand Name | Axiom |
| Product Model | E1MG-LHB-AX |
| Product Name | 1000BASE-ZX SFP Transceiver for Brocade (120km) - E1MG-LHB |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000BASE-ZX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.49" (12.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.21" (56.10 mm) |
| Weight (Approximate) | 0.59 oz (16.78 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
FAQ
What is the maximum transmission distance of this SFP transceiver?
This 1000BASE-ZX SFP transceiver supports transmission distances up to 120 kilometers over single-mode fiber. This extended reach makes it suitable for connecting geographically dispersed network segments without requiring intermediate signal regeneration equipment, which simplifies network architecture and reduces operational costs.
Is this transceiver compatible with Brocade networking equipment?
Yes, the Axiom E1MG-LHB-AX is specifically engineered for Brocade switches and routers. It provides full compatibility with Brocade SFP slots and maintains all functionality expected from Brocade-certified transceivers, including digital diagnostics monitoring and hot-swap capability without requiring firmware updates.
What type of fiber connector does this transceiver use?
This transceiver uses LC connectors, which provide secure fiber termination with low insertion loss. The LC interface is industry-standard for SFP modules and offers reliable connectivity while supporting the high-performance requirements of 1000BASE-ZX transmission over single-mode fiber.
What is the difference between 1000BASE-ZX and other Gigabit Ethernet standards?
1000BASE-ZX is specifically designed for long-distance transmission over single-mode fiber, supporting distances up to 120km compared to shorter-reach standards like 1000BASE-LX (10km) or 1000BASE-SX (550m). It operates at 1550nm wavelength and is optimized for extended fiber runs in metropolitan and campus network environments.
Does this SFP support digital diagnostics monitoring?
Yes, this transceiver includes digital diagnostics monitoring (DDM) capabilities that provide real-time performance data. You can monitor temperature, voltage, laser bias current, transmit power, and receive power through compatible network management systems, enabling proactive maintenance and troubleshooting of fiber links.
What applications is this transceiver best suited for?
This 1000BASE-ZX SFP transceiver is ideal for long-distance network connections including campus backbones, metropolitan area networks, data center interconnects, and point-to-point links between remote facilities. Its 120km reach and Brocade compatibility make it particularly valuable for enterprise networks, educational campuses, healthcare systems, and service provider deployments requiring reliable extended fiber connectivity.
