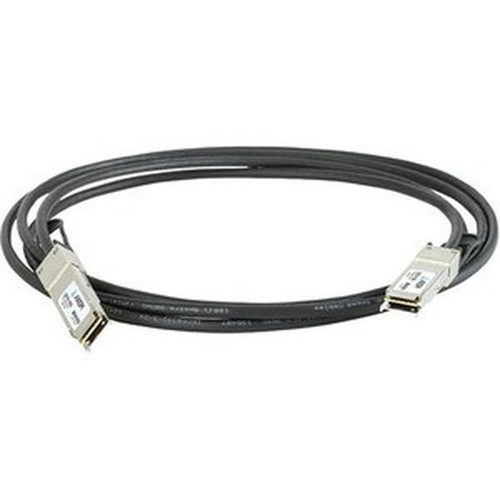

Axiom CABQQ100G-5M-AX 100GBASE-CR4 QSFP28 Passive DAC Cable - 5m (16. 4 ft) Twinaxial Arista Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DAC cable operates at 100 Gbit/s using the 100GBASE-CR4 Ethernet standard, which divides the 100 Gb/s signal across four lanes of 25 Gb/s each over twinaxial copper. The QSFP28 form factor supports high-density port configurations, allowing for efficient use of rack space in modern data centers.
The passive electrical design eliminates active components, resulting in lower power consumption and reduced latency compared to active optical cables. The twinaxial construction provides excellent signal integrity over the 5-meter distance, maintaining stable performance without signal degradation.
Key Product Advantages
This cable offers several advantages for network administrators seeking reliable, high-performance interconnects. Its passive twinaxial design ensures robust connectivity without the complexity and cost of optical transceivers and fiber cables.
Cost-Effective High-Speed Connectivity
Provides 100 Gb/s performance at a lower total cost of ownership compared to active optical solutions, with no separate transceivers required.
- No external power needed
- Lower latency than active cables
- Reduced component count
Arista-Optimized Compatibility
Engineered specifically for seamless integration with Arista networking equipment, ensuring reliable operation in Arista-based network environments.
- Tested for Arista compatibility
- Reliable signal integrity
- Hot-pluggable support
Durable Twinaxial Construction
The twinaxial cable design provides excellent electromagnetic interference (EMI) resistance and mechanical durability for data center environments.
- Robust physical construction
- Stable signal transmission
- Suitable for high-density deployments
Deployment / Use Cases
This 100GBASE-CR4 QSFP28 DAC cable is ideal for connecting network equipment within the same rack or between adjacent racks in data center environments. Its 5-meter length provides flexibility for various rack configurations while maintaining signal integrity.
Common deployment scenarios include connecting top-of-rack switches to servers, linking spine and leaf switches in leaf-spine architectures, and interconnecting network appliances that require high-speed backplane connections. The cable is particularly valuable in Arista-based networks where compatibility and performance are critical.
Data Center Rack Interconnects
Connect switches and servers within the same rack or between adjacent racks without the expense of optical transceivers.
High-Performance Computing Clusters
Provide low-latency, high-bandwidth connections between compute nodes and storage systems in HPC environments.
Highlights
- 100 Gbit/s data transfer rate using 100GBASE-CR4 standard
- QSFP28 connectors on both ends for high-density deployments
- 5-meter (16.4-foot) twinaxial direct attach copper cable
- Passive design requires no external power source
- Specifically compatible with Arista networking equipment
- Hot-pluggable support for easy installation and maintenance
- Twinaxial construction for excellent signal integrity
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | CABQQ100G-5M-AX |
| Brand Name | Axiom |
| Product Name | 100GBASE-CR4 QSFP28 Passive DAC Cable Arista Compatible 5m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 16.4 ft |
| Connector Type on First End | QSFP28 Network - Male |
| Connector on First End Details | 1 x QSFP28 Network - Male |
| Connector Type on Second End | QSFP28 Network - Male |
| Connector on Second End Details | 1 x QSFP28 Network - Male |
| Device Supported | Network Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Passive |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this DAC cable can reliably support?
This 100GBASE-CR4 QSFP28 passive DAC cable is designed for short-reach applications up to 5 meters (16.4 feet). The twinaxial copper construction maintains signal integrity within this distance without requiring signal regeneration or active components. For longer distances, active optical cables or fiber optic transceivers would be more appropriate.
Is this cable compatible with non-Arista networking equipment?
While specifically engineered and tested for Arista compatibility, this QSFP28 DAC cable uses standard 100GBASE-CR4 signaling and may work with other vendors' equipment that supports the same standard. However, for guaranteed performance, it's recommended to verify compatibility with your specific network device manufacturer before deployment.
What does 'passive' mean in the context of this DAC cable?
A passive DAC cable contains no active electronic components for signal processing or regeneration. It relies on the electrical properties of the copper conductors to transmit signals, resulting in lower power consumption, reduced latency, and simpler design compared to active cables. The passive design makes this cable more reliable with fewer potential points of failure.
Can this cable be used for 40GbE connections?
No, this cable is specifically designed for 100GbE (100 Gigabit Ethernet) connections using the 100GBASE-CR4 standard. While QSFP28 ports are backward compatible with some QSFP+ devices in certain configurations, this cable is optimized for 100GbE operation and should not be used for 40GbE applications, which require different signaling standards and cable specifications.
