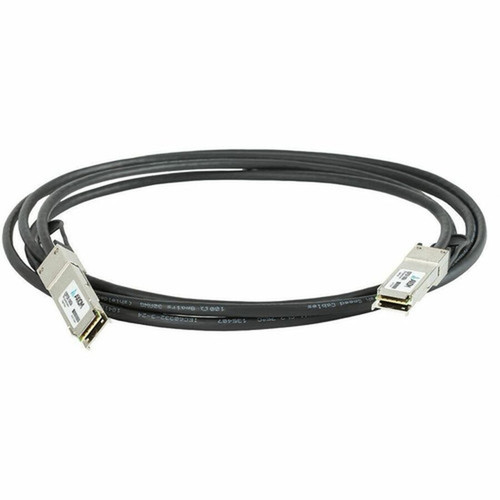

Axiom 100G-QSFPQSFPP0301AX 100GBASE-CR4 QSFP28 Passive DAC Cable - Twinaxial - 3m - 9. 8 ft - Brocade Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable operates at 100 Gbit/s using the 100GBASE-CR4 standard, which utilizes four lanes of 25 Gbit/s over twinaxial copper. The QSFP28 connectors support hot-pluggable installation, allowing for easy maintenance and upgrades without network downtime. The passive design means the cable does not require external power, reducing complexity and potential points of failure.
The twinaxial construction provides excellent signal integrity for high-speed data transmission while maintaining flexibility for cable management. With a weight of 8 ounces (226.80 grams), this cable is lightweight yet durable enough for data center environments.
Key Product Advantages
This DAC cable delivers several advantages for network administrators seeking reliable high-speed connectivity. The passive twinaxial design eliminates the need for signal conditioning electronics, resulting in lower power consumption and reduced heat generation compared to active cables or optical transceivers.
Cost-Effective 100GbE Connectivity
Provides 100 Gbit/s performance at a lower total cost of ownership than optical solutions, with no separate transceivers required.
- Eliminates transceiver costs
- Lower power consumption
- Simplified inventory management
Brocade Compatibility
Specifically tested and verified for compatibility with Brocade networking equipment, ensuring reliable operation in Brocade-based environments.
- Verified interoperability
- Reduced compatibility concerns
- Optimized for Brocade platforms
Deployment / Use Cases
This cable is ideal for connecting top-of-rack switches to aggregation switches in data center environments, particularly where distances between devices are within 3 meters. The 100GBASE-CR4 specification makes it suitable for spine-leaf architectures, high-performance computing clusters, and storage area networks requiring high-bandwidth interconnects.
Network administrators can use this cable for switch-to-switch connections in Brocade environments, for connecting routers to core switches in enterprise networks, or for establishing high-speed links between network appliances in rack-mounted configurations. The passive design makes it particularly suitable for environments where power efficiency and reliability are priorities.
Physical Profile
The cable measures 3 meters (9.8 feet) in length, providing sufficient reach for most within-rack or adjacent-rack connections while minimizing cable clutter. The twinaxial construction offers flexibility for routing through cable management systems while maintaining signal integrity at 100 Gbit/s speeds. The QSFP28 connectors feature a secure latching mechanism to prevent accidental disconnection in vibration-prone environments.
- Weight
- 8 oz (226.80 g)
- Length
- 9.8 ft (3 m)
Highlights
- 100 Gbit/s data transfer rate using 100GBASE-CR4 standard
- QSFP28 male connectors on both ends for direct device connection
- 3-meter (9.8-foot) twinaxial cable for short-reach applications
- Passive design requires no external power or signal conditioning
- Brocade compatible for reliable operation in Brocade environments
- Hot-pluggable QSFP28 connectors for easy installation and maintenance
- Supports network devices, routers, and switches
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 100G-QSFPQSFPP0301AX |
| Brand Name | Axiom |
| Product Name | 100GBASE-CR4 QSFP28 Passive DAC Cable Brocade Compatible 3m |
| Package Type | OEM |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | QSFP28 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x QSFP28 Network - Male |
| Connector Type on Second End | QSFP28 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x QSFP28 Network - Male |
| Device Supported | Network Device,Router,Switch |
| Data Transfer Rate | 100 Gbit/s |
| Features | Passive |
| Physical Characteristics | |
| Weight (Approximate) | 8 oz (226.80 g) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this DAC cable?
This cable supports data transfer rates up to 100 Gbit/s using the 100GBASE-CR4 standard. It utilizes four lanes of 25 Gbit/s each over twinaxial copper to achieve this high-speed performance, making it suitable for demanding network applications requiring substantial bandwidth between connected devices.
What types of devices is this cable compatible with?
The cable is compatible with network devices, routers, and switches that support QSFP28 interfaces. It has been specifically tested and verified for compatibility with Brocade equipment, ensuring reliable operation in Brocade-based networking environments. The QSFP28 connectors provide a standardized interface for connecting compatible devices over short distances.
What does 'passive' mean for this DAC cable?
A passive DAC cable contains only copper wiring without any signal conditioning electronics or retimers. This means the cable does not require external power, resulting in lower power consumption, reduced heat generation, and typically lower cost compared to active cables. Passive cables are ideal for short-distance connections where signal integrity can be maintained without electronic amplification.
What is the cable length and type?
This cable measures 3 meters (9.8 feet) in length and uses twinaxial construction. Twinaxial cable consists of two inner conductors surrounded by insulation and shielding, providing excellent signal integrity for high-speed data transmission. The 3-meter length is suitable for within-rack or adjacent-rack connections in data center environments.
