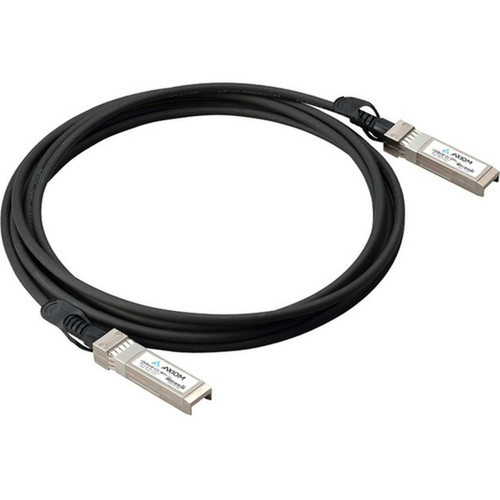

Axiom AT-SP10TW5-AX 10GBASE-CU SFP+ Passive DAC Cable - 16. 4 ft (5 m) Twinaxial Network Cable for Allied Telesis
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable operates on the 10GBASE-CU standard, which defines 10 Gigabit Ethernet over copper twinaxial cabling. The passive design means it does not require external power, relying instead on the SFP+ ports for signal transmission. This results in lower heat generation and improved reliability in dense network configurations.
The SFP+ connectors on both ends are keyed to prevent incorrect insertion and ensure a secure connection. Each connector supports the full 10 Gbit/s bandwidth, enabling seamless data flow between devices. The cable's construction minimizes electromagnetic interference, maintaining signal clarity across its entire length.
Key Product Advantages
This DAC cable offers several distinct advantages for network administrators and IT professionals. Its passive design reduces overall power draw and cooling requirements in rack-mounted environments, while the direct-attach configuration eliminates the need for separate optical transceivers, lowering both cost and complexity.
High-Speed Performance
Delivers consistent 10 Gbit/s throughput with minimal latency, supporting bandwidth-intensive applications like virtualization, storage networking, and high-performance computing.
- 10 Gbit/s data transfer rate
- Low-latency twinaxial construction
- Ideal for short-distance links
Simplified Deployment
The plug-and-play design requires no configuration or external power, allowing for quick installation and reduced maintenance overhead in dynamic network environments.
- No separate transceivers needed
- Direct SFP+ port compatibility
- Reduced cable clutter
Deployment / Use Cases
This cable is particularly well-suited for connecting switches to routers, servers to top-of-rack switches, or any two SFP+ enabled devices within a 5-meter range. Its 16.4 ft length provides flexibility in rack layouts while maintaining signal integrity.
Common deployment scenarios include linking Allied Telesis switches in a stacked configuration, connecting storage arrays to network switches in a SAN environment, or establishing high-speed links between network appliances in a data center. The cable's passive nature makes it ideal for environments where power efficiency and reliability are priorities.
Data Center Interconnects
Use for short-distance connections between switches and servers where low latency and high bandwidth are required for applications like database clustering or virtual machine migration.
Enterprise Networking
Ideal for connecting network equipment in server rooms, wiring closets, or between adjacent racks where fiber optic cables would be unnecessary or cost-prohibitive.
Highlights
- 16.4 ft (5 m) twinaxial cable for 10 Gbit/s data transfer
- SFP+ connectors on both ends for direct device connection
- Passive design requires no external power source
- Compatible with routers, switches, and network devices
- 10GBASE-CU standard for reliable Ethernet over copper
- Specifically designed for Allied Telesis equipment
- Lifetime limited warranty for long-term reliability
- Reduces latency compared to active optical solutions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | AT-SP10TW5-AX |
| Brand Name | Axiom |
| Product Name | 10GBASE-CU SFP+ Passive DAC Cable for Allied Telesis 5m - AT-SP10TW5 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 16.4 ft (5 m) |
| Connector Type on First End | SFP+ Network |
| Connector on First End Details | 1 x SFP+ Network |
| Connector Type on Second End | SFP+ Network |
| Connector on Second End Details | 1 x SFP+ Network |
| Device Supported | Router,Switch,Network Device |
| Data Transfer Rate | 10 Gbit/s |
| Features | Passive |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this DAC cable?
This cable supports data transfer rates up to 10 Gbit/s (10 Gigabits per second), which is suitable for high-bandwidth applications like server-to-switch connections, storage area networks, and data center interconnects. The 10GBASE-CU standard ensures reliable performance over its twinaxial copper construction.
What devices are compatible with this SFP+ DAC cable?
The cable is designed for use with routers, switches, and other network devices that have SFP+ ports. It is specifically compatible with Allied Telesis equipment, but may work with other brands that support the 10GBASE-CU standard and passive DAC cables. Always verify compatibility with your specific device's documentation.
What does 'passive' mean for this DAC cable?
A passive DAC cable does not contain active electronic components that require external power. It relies on the SFP+ ports at each end to drive the signal, resulting in lower power consumption, reduced heat generation, and generally higher reliability compared to active cables. This makes it ideal for environments where power efficiency is important.
What is the cable length and why is it important?
The cable is 16.4 ft (5 m) long, which is optimal for connecting devices within the same rack or between adjacent racks in data center environments. This length balances flexibility in placement with maintaining signal integrity for 10 Gbit/s transmission over copper, as longer passive DAC cables may experience signal degradation.
