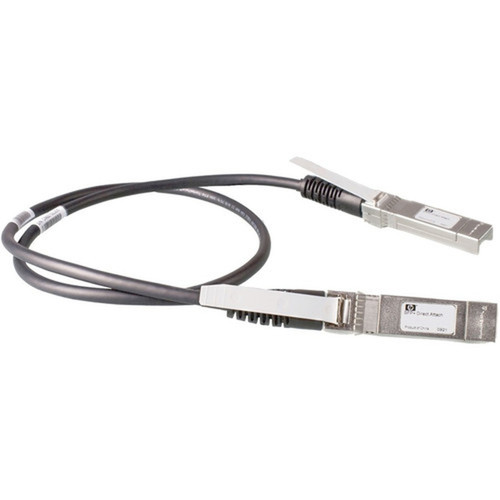

Axiom JH693A-AX 10GBASE-CU SFP+ Passive DAC Twinax Cable - 1. 6 ft / 0. 5m Black Direct Attach Copper Cable HP Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This 10GBASE-CU compliant cable implements the SFP+ direct attach copper specification for 10 Gigabit Ethernet connections. The twinaxial cable design supports passive operation without requiring external power, simplifying deployment while reducing points of failure in network topology.
The cable maintains signal quality through its shielded construction, ensuring reliable data transmission between compatible SFP+ ports. With identical SFP+ connectors on both ends, installation requires no configuration or polarity considerations beyond proper port insertion.
Key Product Advantages
This direct attach copper cable offers several advantages for network administrators seeking reliable short-distance 10GbE connectivity. The passive design eliminates power requirements while maintaining compatibility with HP and other network devices supporting the SFP+ DAC standard.
Simplified Connectivity
Direct SFP+ to SFP+ connection eliminates transceiver costs and reduces latency compared to fiber solutions for short runs.
- No separate transceivers required
- Lower latency than optical alternatives
- Reduced power consumption
HP Compatibility
Engineered for compatibility with HP networking equipment, ensuring reliable performance in mixed-vendor environments where HP infrastructure is deployed.
- Tested for HP compatibility
- Reliable signal integrity
- Enterprise-grade construction
Deployment / Use Cases
The 1.6-foot length makes this cable ideal for connecting adjacent devices in rack-mounted configurations. Common deployment scenarios include switch-to-switch connections within the same rack, server-to-top-of-rack switch links, and storage array connectivity in consolidated data center environments.
This cable supports 10 Gigabit Ethernet applications where short-distance, high-bandwidth connections are required without the complexity of fiber optic cabling. The passive twinaxial design is particularly suitable for data center interconnects, high-performance computing clusters, and enterprise network backbones where reliability and simplicity are paramount.
Physical Profile
The black twinaxial cable features a durable jacket that provides both physical protection and EMI shielding. With a compact diameter and flexible construction, the cable routes easily in crowded rack environments while maintaining proper bend radius for signal integrity. The lightweight design at approximately 90.7 grams minimizes stress on SFP+ ports during installation and reduces overall cable management challenges.
- Weight
- 90.7 g
- Length
- 1.6 ft
Highlights
- 10GBASE-CU compliant for 10 Gigabit Ethernet connectivity
- 1.6-foot / 0.5-meter length ideal for rack-mounted equipment
- SFP+ connectors on both ends for direct device connection
- Passive twinaxial design requires no external power
- HP compatible for reliable performance in enterprise networks
- Black color for professional installation appearance
- Lightweight at approximately 90.7 grams for easy handling
- Supports 10 Gbit/s data transfer rates
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | JH693A-AX |
| Brand Name | Axiom |
| Product Name | 10GBASE-CU SFP+ Passive DAC Twinax Cable HP Compatible 0.5m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 1.6 ft |
| Connector Type on First End | SFP+ Network |
| Connector on First End Details | 1 x SFP+ Network |
| Connector Type on Second End | SFP+ Network |
| Connector on Second End Details | 1 x SFP+ Network |
| Device Supported | Network Device |
| Data Transfer Rate | 10 Gbit/s |
| Features | Passive |
| Physical Characteristics | |
| Product Color | Black |
| Weight (Approximate) | 90.7 g |
FAQ
What is the maximum distance this cable supports?
This 1.6-foot direct attach copper cable is designed for short-distance connections typically within the same rack or between adjacent equipment. While the 10GBASE-CU specification supports distances up to 7 meters with passive cables, this specific model is optimized for the 1.6-foot length, making it ideal for connecting devices in close proximity where minimal cable length reduces clutter and signal attenuation.
Does this cable require separate SFP+ transceivers?
No, this is a direct attach copper cable with integrated SFP+ connectors on both ends. The cable connects directly between SFP+ ports on compatible network devices without requiring separate transceivers. This integrated approach reduces cost, simplifies inventory management, and eliminates potential compatibility issues between transceivers and cables in 10GbE deployments.
What types of devices is this cable compatible with?
The cable is compatible with network devices featuring SFP+ ports that support the 10GBASE-CU direct attach copper standard. This includes switches, routers, servers, and storage arrays from HP and other manufacturers implementing the SFP+ DAC specification. The passive design ensures broad compatibility without requiring device-specific configuration or power considerations beyond standard SFP+ port capabilities.
What does 'passive' mean for this DAC cable?
Passive indicates the cable contains no active electronics or signal conditioning components. The twinaxial conductors transmit signals directly between devices without amplification or retiming. This results in lower power consumption, reduced heat generation, and increased reliability compared to active cables, though with distance limitations typically under 7 meters for 10GbE applications.
