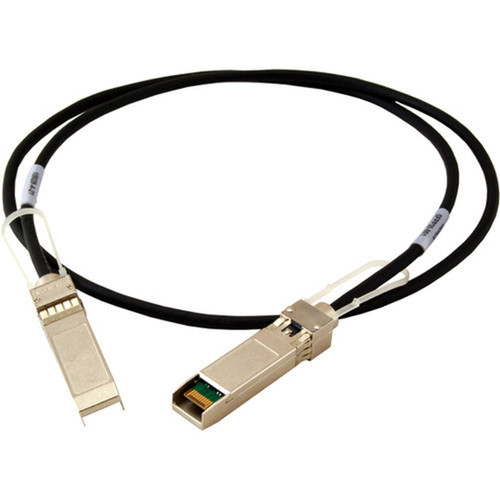

Axiom DAC-10G-SFP-07M-AX 10GBASE-CU SFP+ Passive DAC Twinax Cable - 23 ft - 7m - Gold-Plated - Shielded - Cisco Nexus Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This direct attach cable operates at a data transfer rate of 10 Gbit/s, supporting high-speed networking standards for backbone and aggregation links. The twinaxial cable type is optimized for short-reach copper connections up to 10 meters, making it ideal for top-of-rack switching, server-to-switch interconnects, and intra-rack deployments where low latency and simplicity are priorities.
The cable features SFP+ connectors on both ends, each with a single SFP+ network interface. Gold contact plating reduces insertion loss and maintains signal integrity across repeated mating cycles. Full shielding protects against electromagnetic interference (EMI) and crosstalk, ensuring stable performance in electrically noisy environments.
Key Product Advantages
This cable simplifies 10GbE deployments by providing a plug-and-play alternative to fiber optic modules and separate cabling. Its passive twinax construction delivers lower power consumption and reduced heat generation compared to active cables, contributing to improved energy efficiency in high-density setups.
Direct Attach Efficiency
Eliminates the need for separate SFP+ transceivers and fiber patch cables, reducing component count, cost, and points of failure in your network infrastructure.
- Lower total cost of ownership
- Simplified inventory management
- Reduced installation time
Reliable Performance
Shielded twinaxial design with gold-plated connectors ensures consistent signal quality and durability for mission-critical data center and enterprise applications.
- Minimized EMI/RFI interference
- Enhanced corrosion resistance
- Stable 10GbE throughput
Deployment / Use Cases
This cable is specifically validated for compatibility with Cisco Nexus 2000 and 5000 series switches, making it a trusted choice for Cisco-based data center fabrics, unified computing systems, and virtualized server environments. Its 23-foot length provides flexibility for connections within racks or between adjacent racks in server rooms and network closets.
Typical use cases include connecting blade servers to top-of-rack switches, linking aggregation switches to core switches, and establishing high-speed interconnects for storage area networks (SAN) and network-attached storage (NAS) systems. The passive design is well-suited for environments where power efficiency and minimal latency are critical, such as financial trading platforms, high-performance computing clusters, and media streaming infrastructures.
Highlights
- 23-foot (7-meter) 10GBASE-CU SFP+ passive direct attach copper twinax cable
- Data transfer rate of 10 Gbit/s for high-speed network backbone connections
- SFP+ connectors on both ends with gold-plated contacts for reliable conductivity
- Full shielding protects against electromagnetic interference and crosstalk
- Passive design requires no external power, reducing energy consumption and heat
- Compatible with Cisco Nexus 2000 and 5000 series switches
- Twinaxial cable type optimized for short-reach copper links up to 10 meters
- Environmentally friendly construction with a lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | DAC-10G-SFP-07M-AX |
| Brand Name | Axiom |
| Product Name | 10GBASE-CU SFP+ Passive DAC Twinax Cable Transition Networks Compat 7m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 23 ft |
| Connector Type on First End | SFP+ Network |
| Connector on First End Details | 1 x SFP+ Network |
| Connector Type on Second End | SFP+ Network |
| Connector on Second End Details | 1 x SFP+ Network |
| Contact Plating | Gold |
| Shielding | Yes |
| Device Supported | Network Device |
| Data Transfer Rate | 10 Gbit/s |
| Features | Passive |
| Miscellaneous | |
| Compatibility | Cisco - Nexus 2000, 5000 Series Switches |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this cable supports for 10GbE connections?
This 23-foot (7-meter) twinax cable is designed for short-reach copper connections, typically supporting distances up to 10 meters as per 10GBASE-CU standards. It is ideal for intra-rack or adjacent-rack deployments in data centers, providing low-latency links between switches and servers without the need for fiber optics.
Does this cable require external power or active electronics?
No, this is a passive direct attach cable. It draws minimal power directly from the SFP+ ports on your connected devices, eliminating the need for external power supplies or active signal conditioning. This passive design reduces power consumption, heat generation, and points of failure compared to active cables or fiber transceiver solutions.
Which Cisco switch models is this cable compatible with?
The cable is validated for compatibility with Cisco Nexus 2000 series fabric extenders and Nexus 5000 series switches. These switches are commonly used in data center unified fabric deployments, making this cable a reliable choice for building high-performance, low-latency network backbones in Cisco environments.
What are the benefits of gold-plated connectors on this cable?
Gold plating on the SFP+ connectors enhances electrical conductivity, reduces insertion loss, and provides superior corrosion resistance. This ensures stable signal transmission over repeated mating cycles and extends the cable's lifespan in humid or demanding operational conditions, maintaining consistent 10GbE performance.
