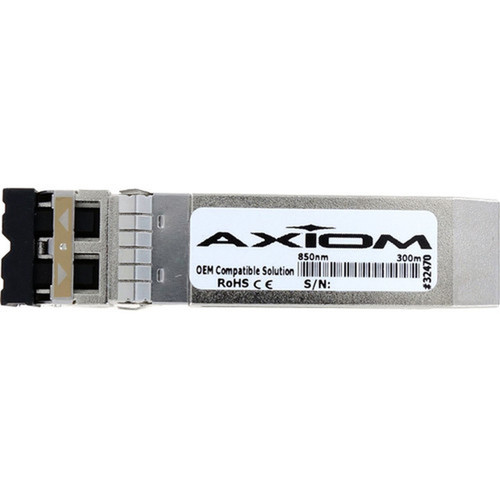

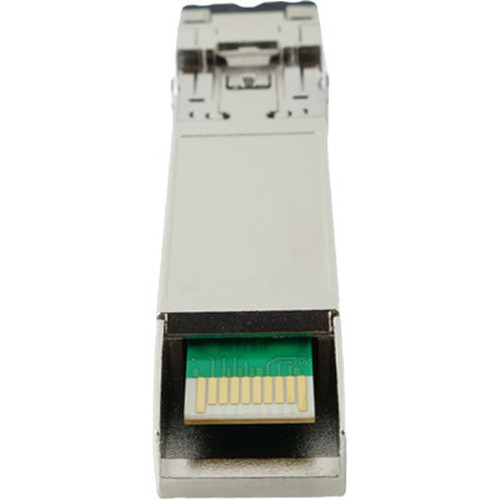

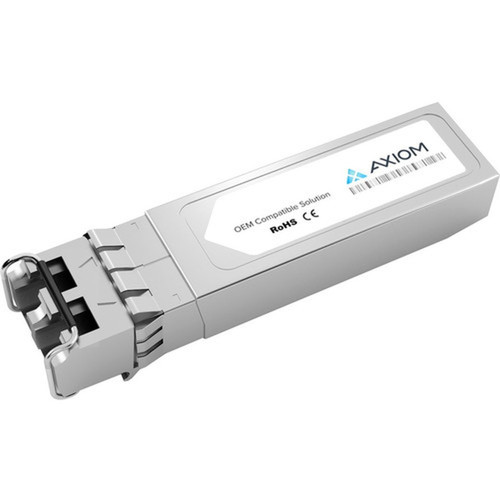

AXIOM MEMORY 44W4408-AX Axiom 10GBASE-SR SFP+ Transceiver for IBM - 1-Port LC Multi-mode Fiber 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver operates on the 10GBASE-SR standard, providing 10 Gbps data rates over multi-mode fiber optic cables. It features a single LC port for optical connectivity, supporting the thicker diameter of multi-mode fiber to carry multiple wavelengths of light for enhanced bandwidth and data fidelity.
The module is fully compliant with industry MSA specifications, ensuring mechanical and electrical compatibility with a wide range of networking hardware. It is also RoHS certified, meeting environmental standards by restricting hazardous substances in its construction.
Key Product Advantages
This transceiver offers optimized network performance with 10 Gigabit Ethernet connectivity, enabling high-speed data transfer for demanding enterprise and data center environments. Its multi-mode fiber support allows for cost-effective deployments over shorter distances while maintaining high bandwidth capacity.
IBM Compatibility
Specifically validated for IBM systems, including 44W4408 and 44W4411 models, ensuring seamless integration and reliable operation in IBM networking infrastructures.
High Bandwidth Support
Leverages multi-mode fiber optic technology to carry multiple light wavelengths, supporting greater information capacity and improved signal fidelity for data-intensive applications.
Deployment / Use Cases
Ideal for data networking and optical network applications where 10 Gigabit Ethernet performance is required. Common use cases include connecting switches, routers, and servers in enterprise data centers, campus networks, and storage area networks (SANs) that utilize IBM-compatible hardware.
This transceiver is particularly suited for environments leveraging multi-mode fiber infrastructure for short to medium-distance connections, such as within server racks, between adjacent buildings, or in high-performance computing clusters. Its compact design makes it easy to deploy in high-density network configurations.
Physical Profile
The transceiver measures 0.53" wide, 0.49" high, and 2.21" deep (13.40 mm x 12.50 mm x 56.10 mm), with an approximate weight of 0.59 oz (16.78 g). This compact SFP+ form factor allows for efficient use of switch and router port space, supporting high-density installations without compromising performance or reliability.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.21" (56.10 mm)
- Height
- 0.49" (12.50 mm)
- Weight
- 0.59 oz (16.78 g)
Highlights
- 10 Gigabit Ethernet connectivity for high-speed data transfer
- LC connector interface for reliable optical fiber connections
- Multi-mode fiber optic support for cost-effective deployments
- MSA compliant for broad hardware compatibility
- RoHS certified for environmental safety
- Compact SFP+ form factor for space-efficient installations
- Specifically compatible with IBM 44W4408 and 44W4411 systems
- Ideal for data networking and optical network applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 44W4408-AX |
| Brand Name | Axiom |
| Product Model | 44W4408-AX |
| Product Name | 10GBASE-SR SFP+ Transceiver for IBM - 44W4408, 44W4411 |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBASE-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.49" (12.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.21" (56.10 mm) |
| Weight (Approximate) | 0.59 oz (16.78 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What is the primary use of this SFP+ transceiver?
This Axiom 44W4408-AX transceiver is designed for 10 Gigabit Ethernet connectivity over multi-mode fiber optic cabling in data networking and optical network applications. It is specifically compatible with IBM systems, including models 44W4408 and 44W4411, making it suitable for enterprise data centers, campus networks, and other environments requiring high-speed optical connections.
What type of fiber optic cable does this transceiver support?
The transceiver supports multi-mode fiber optic cable, which features a thicker diameter to carry multiple wavelengths of light. This allows for high bandwidth capacity and improved data fidelity over shorter distances, making it a cost-effective solution for many enterprise networking deployments where 10 Gigabit Ethernet performance is required.
Is this transceiver compatible with non-IBM networking equipment?
Yes, this transceiver is MSA (Multi-Source Agreement) compliant, which ensures mechanical and electrical compatibility with a wide range of networking hardware beyond just IBM systems. However, it has been specifically validated for IBM 44W4408 and 44W4411 models, so for optimal performance in IBM environments, this compatibility is assured.
