Product Features
Technical Overview

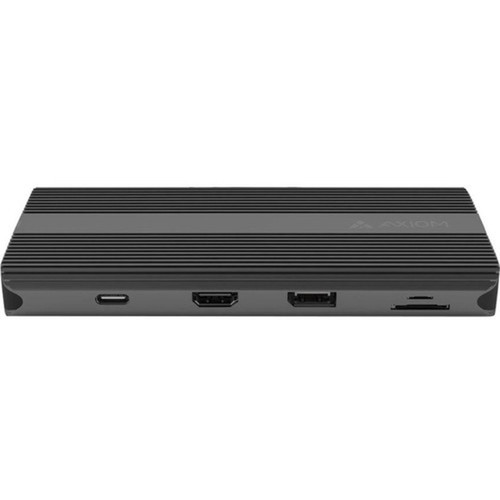

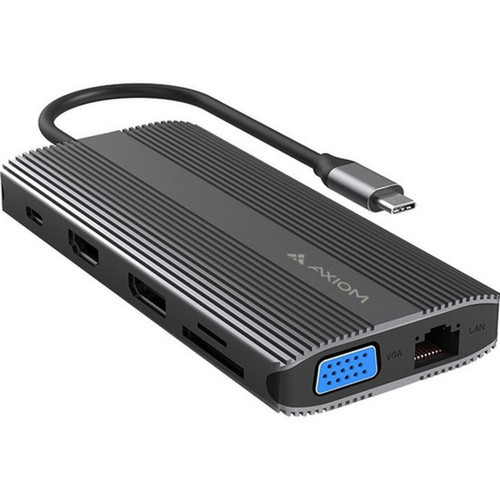

This docking station supports two external displays at up to 4K resolution (3840 x 2160) through its HDMI, DisplayPort 1.2, and VGA outputs. The USB-C host interface provides both data transfer and up to 100W of power delivery to charge compatible devices while maintaining connectivity.
Network performance is ensured through integrated Gigabit Ethernet, while the memory card reader supports both SD and microSD formats. The port selection includes two USB 3.0 ports and one USB 2.0 port for peripheral connectivity, plus an audio line-out for external speakers or headphones.
Relevant factors for this section include Connectivity Technology, Number of Displays Supported, Supported Resolutions, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Axiom docking station stands out with its balanced combination of display capabilities, connectivity options, and power delivery in a space-efficient form factor. The 100W power supply ensures reliable operation while charging connected devices, making it particularly valuable for mobile professionals.
Display Flexibility
Support for two 4K displays through multiple output types provides versatile monitor configuration options for extended desktop setups or presentation scenarios.
- HDMI for modern displays
- DisplayPort 1.2 for high-resolution support
- VGA for legacy monitor compatibility
Comprehensive Connectivity
The integrated Gigabit Ethernet port ensures stable network performance, while the memory card reader eliminates the need for separate adapters when transferring media files.
- Wired network reliability
- Direct media access
- Multiple USB tiers for different speed needs
Deployment / Use Cases
The 12N1USBCHPV5CAXD-AX docking station is designed for professionals who transition between mobile and desktop work environments. Its compact dimensions (5.16" x 2.40" x 0.67") make it easily portable while providing full desktop expansion capabilities when needed.
Ideal deployment scenarios include hot-desking environments where users need quick connectivity setup, home office configurations requiring multiple monitor support, and creative workflows that benefit from direct memory card access. The gray finish blends seamlessly with most workstation aesthetics.
Relevant factors for this section include Connectivity Technology, Number of Displays Supported, Supported Resolutions, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Mobile Professional Setup
Quickly convert a notebook into a dual-monitor workstation with wired networking and peripheral connectivity for productivity-focused tasks.
Media Workflow Enhancement
Direct SD/microSD card access combined with high-resolution display support accelerates photo and video editing processes.
Physical Profile
The docking station features a compact gray enclosure measuring 5.16 inches in height, 2.40 inches in width, and 0.67 inches in depth. This slim profile allows for flexible placement on desks or mounting behind monitors while maintaining all essential connectivity functions. The neutral gray color ensures compatibility with various workspace designs.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.16" (131 mm), 2.40" (61 mm), 0.67" (17 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.40" (61 mm)
- Depth
- 0.67" (17 mm)
- Height
- 5.16" (131 mm)
Highlights
- Dual 4K display support through HDMI, DisplayPort, and VGA outputs
- USB-C host interface with 100W power delivery capability
- Integrated Gigabit Ethernet for reliable wired networking
- SD and microSD memory card reader for direct media access
- Multiple USB ports including USB 3.0 for high-speed data transfer
- Audio line-out for external speaker or headphone connection
- Compact gray enclosure measuring 5.16" x 2.40" x 0.67"
- 3-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 12N1USBCHPV5CAXD-AX |
| Brand Name | Axiom |
| Product Name | Docking Station |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Memory Card Reader | Yes |
| Memory Card Supported | SD,microSD |
| Device Supported | Notebook,Workstation |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Audio Line Out | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x Type-C interface: data interface |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Number of DisplayPorts | 1 |
| DisplayPort | Yes |
| DisplayPort Version | 1.2 |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Product Color | Gray |
| Height | 5.16" (131 mm) |
| Width | 2.40" (61 mm) |
| Depth | 0.67" (17 mm) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many external displays can this docking station support simultaneously?
The Axiom 12N1USBCHPV5CAXD-AX docking station supports two external displays simultaneously. These displays can be connected through the available HDMI, DisplayPort, or VGA outputs, with maximum resolution support of 3840 x 2160 (4K) for each display when using compatible connections.
What type of host connection does this docking station require?
This docking station connects to your notebook or workstation through a single USB Type-C cable. This connection provides both data transfer capabilities and up to 100W of power delivery to charge compatible devices while maintaining all docking station functions.
Does this docking station include wired Ethernet connectivity?
Yes, the docking station features integrated Gigabit Ethernet through an RJ-45 port. This provides reliable wired network connectivity with speeds up to 1000 Mbps, which is particularly valuable for stable video conferencing, large file transfers, or environments where Wi-Fi performance may be inconsistent.
What memory card formats does the integrated reader support?
The built-in memory card reader supports both SD and microSD card formats. This allows direct access to media files without requiring separate card readers or adapters, making it convenient for photographers, videographers, or anyone regularly working with media from cameras or mobile devices.
What power delivery capability does this docking station provide?
The docking station supports up to 100W maximum power supply wattage through its USB-C connection. This enables simultaneous operation of the docking station and charging of compatible notebooks or workstations, eliminating the need for separate power adapters in many scenarios.
What video output options are available on this docking station?
Video output options include one HDMI port, one DisplayPort 1.2, and one VGA port. This combination provides compatibility with modern high-resolution displays through HDMI and DisplayPort, while maintaining backward compatibility with older monitors or projectors through the VGA connection.
