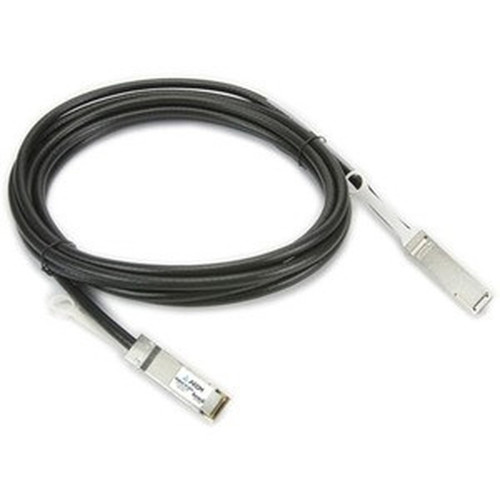

Axiom JNPQSFPDAC5M-AX 40GBASE-CR4 QSFP+ Passive DAC Cable - Juniper Compatible - 5m - 16. 4 ft - 40 Gbit/s
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable operates at a data transfer rate of 40 Gbit/s, supporting the 40GBASE-CR4 standard for high-bandwidth network applications. The passive design means it does not require external power, relying on the host device for signal transmission, which enhances energy efficiency and reduces points of failure.
The QSFP+ connectors are keyed for proper orientation and provide a hot-pluggable interface, allowing for installation and removal without powering down network equipment. This cable is specifically coded for Juniper platforms, ensuring seamless integration and reliable performance in Juniper networking environments.
Key Product Advantages
This DAC cable offers several advantages for network deployments, including reduced latency compared to active optical solutions, lower power consumption, and a straightforward plug-and-play setup. The passive construction ensures durability and long-term reliability in demanding data center conditions.
Cost-Effective Connectivity
Eliminates the need for separate transceivers and fiber optic cabling, reducing both initial hardware costs and ongoing maintenance expenses.
- No external power required
- Lower total cost of ownership
Juniper-Optimized Performance
Designed and tested for compatibility with Juniper networking equipment, ensuring reliable operation and minimizing compatibility issues in Juniper-based infrastructures.
Deployment / Use Cases
This cable is ideal for connecting top-of-rack switches to servers or storage arrays within the same rack or adjacent racks in data centers. It supports high-speed interconnects for applications such as cloud computing, virtualization, and high-performance computing clusters.
Common use cases include linking Juniper QFX series switches, connecting spine-and-leaf architectures in modern data centers, and providing short-reach 40GbE links for network aggregation. The 5-meter length offers flexibility for rack-to-rack or intra-rack deployments where distance requirements are minimal.
Data Center Interconnects
Provides reliable 40GbE connections between switches and servers within a data center, supporting low-latency and high-throughput applications.
Enterprise Network Upgrades
Enables cost-effective upgrades to 40 Gigabit Ethernet for businesses looking to enhance network bandwidth without significant infrastructure changes.
Highlights
- 40GBASE-CR4 QSFP+ Passive DAC cable for 40 Gbit/s network connections
- 5-meter (16.4-foot) length suitable for short-reach data center deployments
- Juniper compatible, coded for seamless integration with Juniper networking equipment
- QSFP+ male connectors on both ends for direct attachment to compatible devices
- Passive design requires no external power, enhancing energy efficiency
- Hot-pluggable QSFP+ interface allows for easy installation and maintenance
- Supports high-bandwidth applications like cloud computing and virtualization
- Lifetime warranty for long-term reliability and peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | JNPQSFPDAC5M-AX |
| Brand Name | Axiom |
| Product Name | 40GBASE-CR4 QSFP+ Passive DAC Cable Juniper Compatible 5m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | QSFP |
| Cable Length | 16.4 ft |
| Connector Type on First End | QSFP+ Network - Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
| Device Supported | Network Device |
| Data Transfer Rate | 40 Gbit/s |
| Features | Passive |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this DAC cable?
This cable supports a data transfer rate of 40 Gbit/s, compliant with the 40GBASE-CR4 standard. It is designed for high-speed network connections in data center and enterprise environments, providing reliable bandwidth for demanding applications like virtualization and cloud computing.
Is this cable compatible with Juniper networking equipment?
Yes, the Axiom JNPQSFPDAC5M-AX is specifically coded for Juniper compatibility. It is engineered to work seamlessly with Juniper switches, routers, and other networking devices, ensuring reliable performance and minimizing integration issues in Juniper-based infrastructures.
What does 'passive DAC' mean for this cable?
Passive DAC (Direct Attach Copper) means the cable does not require external power or signal amplification. It relies on the host device for transmission, resulting in lower power consumption, reduced latency, and a simpler, more cost-effective solution compared to active optical cables or separate transceivers.
What is the length of this QSFP+ DAC cable?
This cable has a length of 5 meters, which is equivalent to 16.4 feet. This makes it suitable for short-reach connections within the same rack or between adjacent racks in data centers, providing flexibility for intra-rack or rack-to-rack deployments without excessive cable management.
