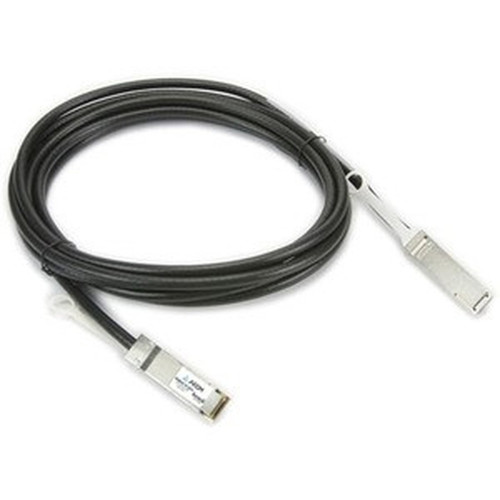

Axiom MC2206128004-AX 40GBASE-CR4 QSFP+ Passive DAC Cable - 13. 1 ft Twinaxial Direct Attach Cable for Network Devices - Mellanox Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This 40GBASE-CR4 compliant DAC cable operates as a passive electrical connection, transmitting data through copper twinaxial conductors without active signal processing components. The cable implements the 40 Gigabit Ethernet standard over four lanes of 10 Gbit/s each, aggregated to deliver full 40 Gbit/s throughput with minimal latency and power consumption.
The QSFP+ connectors provide a compact, high-density interface that supports hot-pluggable installation in compatible switches, routers, and network interface cards. The cable's passive design ensures compatibility with a wide range of network equipment while maintaining signal integrity across its specified length.
Key Product Advantages
This DAC cable offers several practical benefits for network administrators seeking reliable, high-speed connectivity without the complexity and cost of optical transceivers. The passive design reduces power consumption and heat generation compared to active cables, while maintaining full 40 Gigabit Ethernet performance for short-reach applications.
Simplified Deployment
Eliminates the need for separate transceivers and fiber optic cabling, reducing installation time and component costs.
- Plug-and-play connectivity
- No external power required
- Reduced component count
Cost-Effective Performance
Provides 40 Gbit/s throughput at a lower total cost of ownership compared to optical solutions for short-distance connections.
- Lower initial investment
- Reduced power consumption
- Minimal maintenance requirements
Proven Compatibility
Designed for compatibility with Mellanox network equipment and other QSFP+ enabled devices, ensuring reliable operation in mixed-vendor environments.
- Mellanox compatible
- QSFP+ standard compliance
- Wide device support
Deployment / Use Cases
This 40GBASE-CR4 DAC cable is ideally suited for data center and enterprise network environments where high-speed, short-reach connections are required between adjacent racks or within the same rack. The 13.1-foot length provides sufficient reach for most top-of-rack switching scenarios while maintaining signal integrity.
Common deployment scenarios include connecting servers to top-of-rack switches in hyper-converged infrastructure, linking spine and leaf switches in fabric architectures, and providing high-speed interconnects for storage arrays and network appliances. The cable's compatibility with network devices, routers, and switches makes it versatile for both compute and networking applications.
Data Center Interconnects
Connect servers to top-of-rack switches within the same rack or adjacent racks for high-performance computing and storage applications.
Network Fabric Connections
Establish 40 Gigabit Ethernet links between spine and leaf switches in modern data center fabric architectures.
Highlights
- 40 Gbit/s data transfer rate for high-performance network connections
- 13.1-foot twinaxial cable length ideal for rack-to-rack deployments
- QSFP+ male connectors on both ends for secure physical connections
- Passive design requires no external power or signal amplification
- Mellanox compatible for reliable operation with supported network equipment
- 40GBASE-CR4 compliant for standards-based interoperability
- Supports network devices, routers, and switches for versatile deployment
- Lifetime limited warranty for long-term reliability assurance
- Hot-pluggable QSFP+ connectors for easy installation and maintenance
- Cost-effective alternative to optical transceivers for short-reach applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MC2206128004-AX |
| Brand Name | Axiom |
| Product Name | 40GBASE-CR4 QSFP+ Passive DAC Cable Mellanox Compatible 4m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 13.1 ft |
| Connector Type on First End | QSFP+ Network - Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
| Device Supported | Network Device,Router,Switch |
| Data Transfer Rate | 40 Gbit/s |
| Features | Passive |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this DAC cable?
This Axiom DAC cable supports a maximum data transfer rate of 40 Gbit/s, compliant with the 40GBASE-CR4 Ethernet standard. It achieves this throughput by aggregating four lanes of 10 Gbit/s each across the twinaxial conductors, providing full 40 Gigabit Ethernet performance for short-reach connections between compatible network devices.
What devices is this cable compatible with?
The cable is designed for compatibility with network devices, routers, and switches that feature QSFP+ ports. It is specifically noted as Mellanox compatible, ensuring reliable operation with Mellanox network equipment. The 40GBASE-CR4 compliance provides standards-based interoperability with other QSFP+ enabled devices from various manufacturers in data center and enterprise environments.
What does 'passive' mean for this DAC cable?
Passive indicates that this direct attach cable does not contain active signal processing components like retimers or amplifiers. It functions as a pure electrical connection using copper twinaxial conductors to transmit data without requiring external power. This passive design reduces power consumption, heat generation, and cost compared to active cables while maintaining signal integrity across the specified 13.1-foot length.
How long is the cable and what is it suitable for?
The cable measures 13.1 feet (approximately 4 meters) in length, making it ideal for short-reach connections within data centers and enterprise networks. This length is well-suited for top-of-rack switching scenarios, server-to-switch interconnects within the same rack, and connections between adjacent racks. The twinaxial construction maintains 40 Gbit/s performance across this distance without signal degradation.
