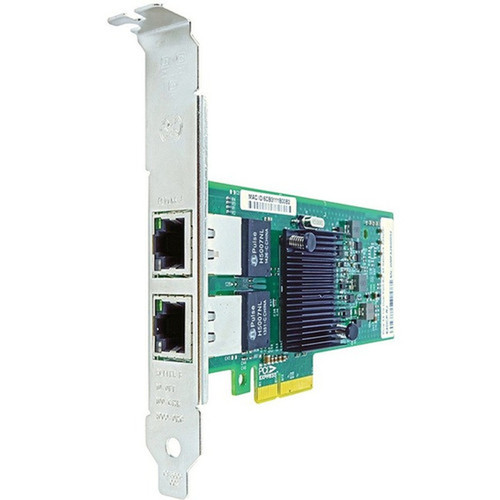

Axiom 430-1792-AX PCIe x4 Dual Port Gigabit Ethernet Card - 10/100/1000Base-T RJ45 for Dell Servers
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Gigabit Ethernet card operates on the PCI Express 2.1 x4 interface, delivering up to 2000MB/s bandwidth to support simultaneous data transfers across both ports. The 10/100/1000Base-T technology ensures backward compatibility with existing network infrastructure while providing full Gigabit performance when connected to compatible switches and routers.
The adapter supports standard twisted pair cabling (Cat5e/Cat6/Cat6a) with transmission distances up to 100 meters, maintaining signal integrity across typical server room deployments. Each RJ-45 port operates independently, allowing for separate network segments or aggregated connections based on your server configuration requirements.
Relevant factors for this section include Host Interface, Total Number of Ports, Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Axiom 430-1792-AX provides several distinct advantages for server network expansion. By consolidating two network interfaces into a single expansion slot, it maximizes server density while minimizing slot consumption—particularly valuable in rack-mounted environments where physical space is at a premium.
Slot Efficiency
Adds two independent Gigabit Ethernet ports using only one PCIe x4 slot, preserving other expansion slots for additional storage, RAID, or specialty cards.
- Single-slot solution
- Preserves expansion capacity
- Reduces slot consumption
Network Flexibility
Supports various deployment scenarios including separate network segments, link aggregation for increased throughput, or failover configurations for critical applications.
- Link aggregation capable
- Failover support
- Segment isolation
Infrastructure Compatibility
Works with existing Cat5e/Cat6/Cat6a cabling and standard network switches, minimizing upgrade costs while delivering Gigabit performance.
- Backward compatible
- Standard cabling
- No special infrastructure required
Deployment / Use Cases
This dual-port Gigabit Ethernet card is designed for Dell server environments where enhanced network connectivity is required. It serves as an ideal upgrade path for servers with limited onboard networking or as an expansion solution for specialized network configurations.
Primary deployment scenarios include file servers requiring separate network segments for management and data traffic, virtualization hosts benefiting from additional network interfaces for virtual machine traffic separation, and application servers where network redundancy through failover configurations ensures continuous service availability. The card also supports web servers, database servers, and network-attached storage solutions where increased network throughput directly impacts performance.
Server Network Expansion
Adds two Gigabit Ethernet ports to Dell servers with available PCIe x4 slots, enhancing network capacity for data-intensive applications.
Network Segmentation
Enables separate network interfaces for different traffic types—such as separating management, data, and backup networks—improving security and performance.
Physical Profile
The Axiom 430-1792-AX features a standard plug-in card form factor measuring 5.71 inches in height, 0.71 inches in width, and 2.64 inches in depth (145 x 18 x 67 mm). This compact design ensures compatibility with most Dell server chassis while maintaining a lightweight profile at approximately 2.88 ounces (81.65 grams). The low-profile dimensions minimize airflow disruption within server enclosures, supporting optimal thermal management in dense deployment environments.
- Width
- 0.71" (18 mm)
- Depth
- 2.64" (67 mm)
- Height
- 5.71" (145 mm)
- Weight
- 2.88 oz (81.65 g)
Highlights
- Dual-port Gigabit Ethernet card with PCIe 2.1 x4 interface
- Specifically designed for Dell server platforms
- Supports 10/100/1000Base-T network speeds
- Provides up to 2000MB/s total bandwidth
- Uses standard twisted pair cabling up to 100 meters
- Compact form factor: 5.71" x 0.71" x 2.64" (145 x 18 x 67 mm)
- Lightweight design at 2.88 oz (81.65 g)
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 430-1792-AX |
| Brand Name | Axiom |
| Product Name | PCIe x4 1Gbs Dual Port Copper Network Adapter for Dell |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.1 x4 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 5.71" (145 mm) |
| Width | 0.71" (18 mm) |
| Depth | 2.64" (67 mm) |
| Weight (Approximate) | 2.88 oz (81.65 g) |
| Miscellaneous | |
| Device Supported | Server |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of PCIe slot does this network card require?
The Axiom 430-1792-AX requires a PCI Express 2.1 x4 slot. It is compatible with PCIe x4, x8, and x16 slots (operating at x4 electrical configuration). The card will physically fit in longer slots while utilizing only four PCIe lanes for data transfer, making it versatile across different server configurations with available PCIe expansion capabilities.
Can both ports on this card be used simultaneously?
Yes, both RJ-45 ports operate independently and can be used simultaneously. This allows for various configurations including separate network segments, link aggregation (combining both ports for increased throughput), or failover setups where one port serves as backup. Each port supports full Gigabit Ethernet speeds up to 1000 Mbps, providing flexible networking options for your server environment.
What type of network cables does this adapter support?
This Gigabit Ethernet card supports standard twisted pair cables including Cat5e, Cat6, and Cat6a. It uses the 10/100/1000Base-T technology standard, which is compatible with existing network infrastructure. The maximum recommended cable length is 100 meters (328 feet) per the Ethernet specification, ensuring reliable data transmission across typical server room and data center deployments.
Is this network card compatible with non-Dell servers?
While specifically designed and tested for Dell server platforms, the Axiom 430-1792-AX may work in other servers with compatible PCIe 2.1 x4 slots. However, compatibility cannot be guaranteed for non-Dell systems due to potential differences in BIOS, firmware, and hardware integration. For optimal performance and reliability, we recommend using this card in Dell server environments as specified.
What is the maximum data transfer rate per port?
Each RJ-45 port supports data transfer rates up to 1000 Mbps (1 Gigabit per second) when connected to compatible network equipment. The card automatically negotiates speeds with connected devices, supporting 10 Mbps, 100 Mbps, or 1000 Mbps operation depending on the network infrastructure. With both ports active, the total bandwidth capacity reaches 2000 MB/s through the PCIe 2.1 x4 interface.
Does this card require special drivers or software?
The Axiom 430-1792-AX typically uses standard Ethernet drivers included with most server operating systems. For optimal performance, we recommend checking Axiom's support website for the latest driver updates specific to your operating system. The card should be recognized as a standard Gigabit Ethernet adapter by Windows Server, Linux distributions, and other server operating systems that include built-in network driver support.
