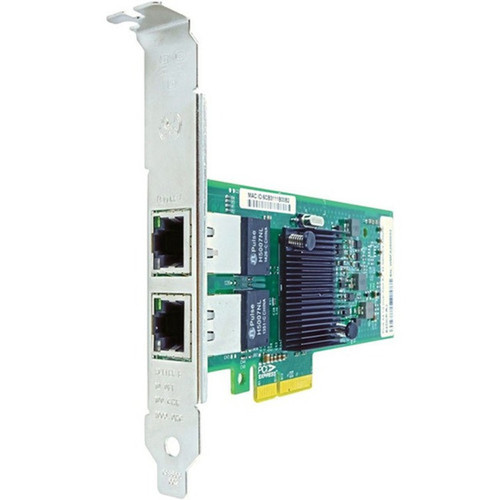

Axiom 540-BBGR-AX Dual Port Gigabit Ethernet PCIe x4 NIC Card for Dell Servers - 10/100/1000Mbps - RJ45 - Plug-in Card
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NIC card implements PCI Express 2.1 x4 interface technology, offering sufficient bandwidth for dual-port Gigabit Ethernet operation in server applications. The 1000Base-T network standard ensures compatibility with existing Gigabit Ethernet infrastructure while supporting data transfer rates up to 1000Mbps over Category 5e or better twisted pair cabling.
The card's physical design follows standard plug-in card dimensions, with a height of 5.71 inches (145 mm), width of 0.71 inches (18 mm), and depth of 2.64 inches (67 mm). This form factor accommodates both full-height and half-height server configurations through the included mounting brackets, providing deployment flexibility across different Dell server models.
Relevant factors for this section include Host Interface, Total Number of Ports, Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Axiom 540-BBGR-AX delivers practical advantages for server network expansion through its dual-port design and Dell-specific compatibility. The card provides immediate bandwidth enhancement without requiring server replacement, making it a cost-effective solution for growing network demands.
Reliable Connectivity
Two independent Gigabit Ethernet ports maintain consistent network access with 1000Base-T technology for stable data transmission across standard network infrastructure.
- Dual-port redundancy
- 1000Mbps per port capability
- Twisted pair cable support
Server Integration
Designed specifically for Dell server environments with appropriate form factor and bracket options for seamless installation in existing server configurations.
- Dell server compatibility
- Full/half height brackets included
- Plug-in card installation
Deployment / Use Cases
This dual-port Gigabit Ethernet card serves as an ideal networking upgrade for Dell servers requiring additional network interfaces or replacement of existing NIC components. The card's 10/100/1000Mbps auto-negotiation capability ensures compatibility with various network speeds while maintaining Gigabit performance where supported.
Primary deployment scenarios include adding network redundancy through dual-port configuration, expanding server connectivity in virtualized environments, or replacing failed network interfaces in Dell server installations. The included full-height and half-height mounting brackets accommodate different server form factors, from standard rack-mounted servers to more compact tower configurations.
Network Expansion
Add dual Gigabit Ethernet ports to Dell servers for increased network bandwidth, link aggregation capabilities, or separate network segmentation.
Hardware Replacement
Serve as a direct replacement for existing Dell server network cards, providing updated connectivity with backward compatibility to existing network infrastructure.
Physical Profile
The card maintains standard PCIe card dimensions with a height of 5.71 inches (145 mm), making it compatible with most server chassis configurations. The slim 0.71-inch (18 mm) width and 2.64-inch (67 mm) depth ensure proper fit within server expansion slots while minimizing airflow disruption. Weighing approximately 2.88 ounces (81.65 grams), the card adds minimal load to server motherboard connections.
- Width
- 0.71" (18 mm)
- Depth
- 2.64" (67 mm)
- Height
- 5.71" (145 mm)
- Weight
- 2.88 oz (81.65 g)
What's in the Box
The package includes all necessary components for immediate installation and operation in Dell server environments.
Highlights
- Dual-port Gigabit Ethernet PCIe x4 NIC card for Dell servers
- PCI Express 2.1 x4 host interface with 2000 MB/s bandwidth capacity
- 10/100/1000Mbps auto-negotiating RJ-45 ports with 1000Base-T technology
- Supports standard twisted pair cabling up to 100 meters distance
- Compact plug-in card form factor with 5.71" x 0.71" x 2.64" dimensions
- Includes both full-height and half-height mounting brackets
- Specifically designed for server deployment and compatibility
- 3-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 540-BBGR-AX |
| Brand Name | Axiom |
| Product Name | Dell Gigabit Ethernet Card |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.1 x4 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 1000Base-T |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 5.71" (145 mm) |
| Width | 0.71" (18 mm) |
| Depth | 2.64" (67 mm) |
| Weight (Approximate) | 2.88 oz (81.65 g) |
| Miscellaneous | |
| Package Contents | Dell Gigabit Ethernet Card Full Height and Half Height Mounting Brackets |
| Device Supported | Server |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of server is this NIC card compatible with?
The Axiom 540-BBGR-AX is specifically designed for Dell server environments. It includes both full-height and half-height mounting brackets to accommodate various Dell server form factors, from standard rack-mounted servers to more compact tower configurations. The card's PCI Express 2.1 x4 interface ensures compatibility with Dell servers supporting this expansion slot standard.
What network speeds does this dual-port NIC support?
This Gigabit Ethernet card supports 10/100/1000Mbps auto-negotiation on both RJ-45 ports. It implements 1000Base-T network technology, providing up to 1000Mbps data transfer rates per port when connected to compatible network infrastructure. The card automatically negotiates the highest mutually supported speed with connected network equipment.
What type of cabling does this network card require?
The card supports standard twisted pair cabling, specifically Category 5e or better Ethernet cables. It utilizes 1000Base-T technology which is designed for copper network infrastructure, supporting cable runs up to 100 meters. This makes it compatible with existing office and data center network cabling without requiring specialized fiber or other media types.
What PCI Express interface does this card use?
This NIC card uses a PCI Express 2.1 x4 host interface. The x4 lane configuration provides sufficient bandwidth for dual-port Gigabit Ethernet operation, supporting aggregate data transfer capabilities up to 2000 MB/s. This interface ensures compatibility with servers featuring PCIe 2.1 or later expansion slots while maintaining backward compatibility with appropriate physical slot configurations.
What mounting options are included with this network card?
The package includes both full-height and half-height mounting brackets, providing flexibility for different server chassis configurations. The full-height bracket suits standard server installations, while the half-height bracket accommodates more compact or specialized server form factors. This dual-bracket approach ensures proper physical installation across various Dell server models without requiring additional hardware.
What warranty coverage does this product include?
The Axiom 540-BBGR-AX dual-port Gigabit Ethernet NIC card comes with a 3-year limited warranty. This warranty period provides assurance of reliable operation and manufacturer support for server networking applications. The coverage reflects the product's design for stable, long-term deployment in business server environments where consistent network connectivity is essential.
