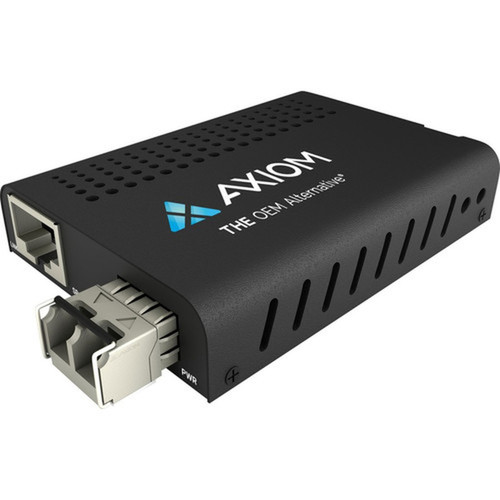

Axiom MC10-S3L20-AX Mini 10Gb/s RJ45 to 10GBASE-LR Media Converter - Single-mode LC - 20km - 1310nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for 10 Gigabit Ethernet networks, the converter employs 10GBASE-LR technology to deliver data rates up to 10Gbps over single-mode fiber optic cable. It operates at a 1310 nm wavelength, optimized for long-distance transmission with minimal signal loss, and features a duplex LC port for secure fiber connections.
The device accepts DC power input, supporting flexible power sourcing in rack or standalone setups. Its form factor allows for rack mounting with hot-swappable capability, facilitating quick replacements without network downtime. This technical foundation ensures stable performance in demanding networking applications.
Key Product Advantages
This media converter excels in extending network reach beyond copper limitations, providing a cost-effective solution for fiber integration without replacing entire infrastructure. Its compact and versatile design supports multiple deployment options, from rack-mounted data centers to standalone office setups.
Long-Distance Connectivity
Enables reliable 10Gb/s data transfers over 20 kilometers using single-mode fiber, ideal for connecting remote locations or large facilities.
- Minimizes signal degradation
- Supports campus-wide networks
Flexible Installation
Rack-mountable and hot-swappable form factor allows for easy integration into existing network racks and quick maintenance swaps.
- Reduces installation time
- Enhances uptime
Deployment / Use Cases
Deploy the MC10-S3L20-AX in scenarios requiring extension of 10Gb/s Ethernet over fiber, such as linking switches between buildings, connecting servers in data centers, or integrating fiber backbones into copper-based networks. Its compatibility with single-mode LC fiber makes it suitable for long-haul applications where distance and signal integrity are critical.
Common use cases include campus networks, telecommunications infrastructure, and enterprise IT expansions. The converter's standalone capability also supports temporary setups or testing environments, providing flexibility for network engineers and IT professionals.
Building-to-Building Links
Connect network equipment across separate structures using fiber optic cabling, overcoming distance limits of copper Ethernet.
Data Center Integration
Bridge copper server connections to fiber uplinks in rack environments, optimizing space and performance in high-density setups.
Highlights
- Converts 10Gb/s RJ45 to 10GBASE-LR single-mode fiber for extended network reach
- Supports distances up to 20 kilometers with minimal signal loss
- Uses duplex LC connectors for reliable fiber optic connections
- Operates at 1310 nm wavelength optimized for long-distance transmission
- Hot-swappable and rack-mountable design for easy deployment and maintenance
- DC power input enables flexible installation in various environments
- Compact form factor suitable for space-constrained setups
- Backed by a one-year limited warranty for dependable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MC10-S3L20-AX |
| Brand Name | Axiom |
| Product Name | Mini 10Gbs RJ45 to 10GBASE-LR Media Converter - SMF, LC, 20km, 1310nm |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Hot-swappable,Standalone |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What does this media converter do?
It converts 10 Gigabit Ethernet signals from an RJ45 copper port to 10GBASE-LR optical fiber, allowing you to extend network connections over single-mode fiber up to 20 kilometers. This bridges copper and fiber segments in a network.
What type of fiber and connectors does it support?
The converter supports single-mode fiber optic cable with duplex LC connectors. It operates at a 1310 nm wavelength, which is standard for long-distance single-mode applications, ensuring compatibility with common fiber infrastructure.
How far can it transmit data?
It supports a maximum distance of 20 kilometers (about 12.43 miles) over single-mode fiber. This makes it suitable for connecting network equipment across buildings or campuses where copper cabling would be insufficient.
Is it rack-mountable?
Yes, the converter features a rack-mountable form factor, allowing it to be installed in standard network racks. It is also hot-swappable, so you can replace it without shutting down the network, and it can be used standalone if needed.
