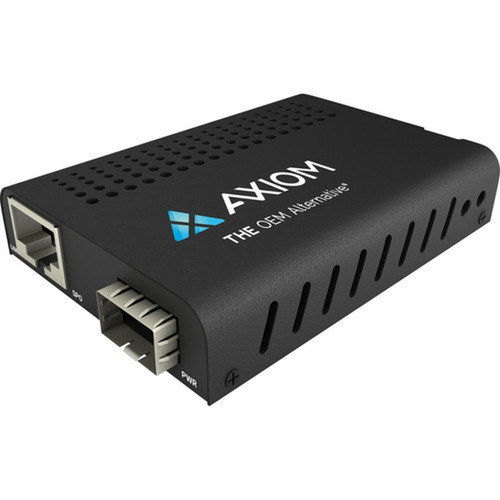

Axiom MC10-SFP-AX Mini 10Gb/s RJ45 to SFP+ Fiber Media Converter - 1 x RJ-45 - Open SFP+ Slot - Multi/Single-mode - Rack-mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at 10 Gigabit Ethernet speeds, utilizing 10GBase-TX technology for the RJ-45 port and 10GBase-FX for the SFP+ slot. It supports a maximum distance of 0.10 km, accommodating both multi-mode and single-mode fiber through the open SFP+ slot, which accepts industry-standard SFP+ transceivers for flexible fiber connectivity.
The converter is powered by a DC source and features a hot-swappable design, allowing for maintenance without network downtime. Its rack-mountable, standalone form factor provides installation flexibility, and the limited warranty of 1 year ensures reliable performance in demanding network environments.
Key Product Advantages
The Axiom MC10-SFP-AX offers cost-effective media conversion by leveraging twisted pair cables for high-speed data transfer up to 100 meters, reducing infrastructure costs while maintaining 10 Gb/s performance. Its open SFP+ slot provides flexibility to choose compatible multi-mode or single-mode transceivers, adapting to existing fiber installations without vendor lock-in.
Flexible Media Support
Connects different media types within a network, enabling integration of copper and fiber segments for optimized topology.
- Twisted pair for short runs
- Optical fiber for extended distance
- Multi/single-mode fiber compatibility
Reliable Performance
Ensures fast transfer rates and stable data connections with 10GBase-TX and 10GBase-FX technologies, minimizing latency and packet loss.
- 10 Gigabit Ethernet throughput
- Low-latency conversion
- Error-free data transmission
Deployment / Use Cases
Deploy this media converter in data centers to connect 10GbE switches with RJ-45 ports to fiber backbone networks, extending reach beyond copper limitations. It is ideal for enterprise networks upgrading to 10 Gb/s, where existing twisted pair cabling needs integration with new fiber infrastructure for improved bandwidth and distance.
Use cases include connecting server racks with copper uplinks to fiber distribution switches, extending network segments in campus environments, and integrating legacy copper equipment into modern fiber-optic networks. The rack-mountable design allows secure installation in server rooms, while the hot-swappable feature supports maintenance without disrupting network operations.
Data Center Integration
Bridge 10GbE copper switches to fiber cores, enabling high-speed connectivity between racks and distribution layers.
- Rack-mountable for tidy installation
- Hot-swappable for easy maintenance
- Supports high-density deployments
Network Upgrades
Facilitate migration from 1GbE to 10GbE by converting existing copper links to fiber, extending network lifespan and performance.
- Backward-compatible with lower speeds
- Future-proofs infrastructure
- Reduces cabling costs
Highlights
- Converts RJ-45 copper to SFP+ fiber for 10 Gb/s networks
- Supports twisted pair and optical fiber media types
- Compatible with multi-mode and single-mode fiber via open SFP+ slot
- Maximum distance of 0.10 km (0.06 mile) for extended reach
- 10GBase-TX and 10GBase-FX network technologies for reliable data transfer
- Rack-mountable, hot-swappable, and standalone form factors
- Powered by DC source for flexible installation
- 1-year limited warranty for assured performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MC10-SFP-AX |
| Brand Name | Axiom |
| Product Name | Mini 10Gbs RJ45 to SFP+ Fiber Media Converter - Open SFP+ Port |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-TX,10GBase-FX |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Hot-swappable,Standalone |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What types of fiber does this media converter support?
The Axiom MC10-SFP-AX supports both multi-mode and single-mode fiber through its open SFP+ slot. You can insert compatible SFP+ transceivers for either fiber type, allowing flexibility to match existing fiber infrastructure or choose based on distance and budget requirements.
What is the maximum distance supported by this converter?
This converter supports a maximum distance of 0.10 km (0.06 mile). The distance may vary depending on the fiber type and SFP+ transceiver used; multi-mode fiber typically covers shorter distances, while single-mode can extend further, but the converter is rated for up to 0.10 km under standard conditions.
Can this converter be rack-mounted?
Yes, the Axiom MC10-SFP-AX is rack-mountable, making it suitable for installation in data centers, server rooms, or network closets. It also supports hot-swappable and standalone form factors, providing versatile deployment options based on your space and maintenance needs.
What power source does this media converter require?
This converter requires a DC power source. It does not include a power adapter in the package, so you will need to provide a compatible DC power supply that matches the voltage and current requirements specified in the product documentation for proper operation.
