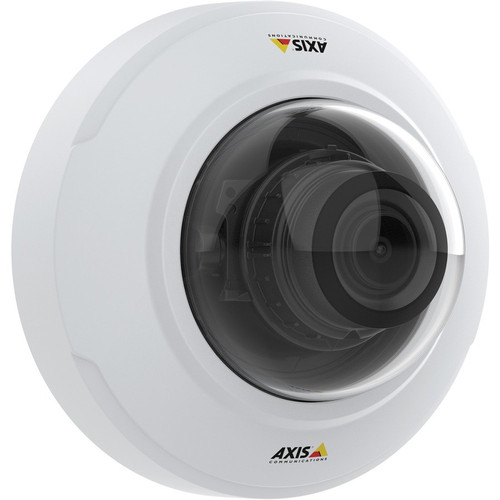

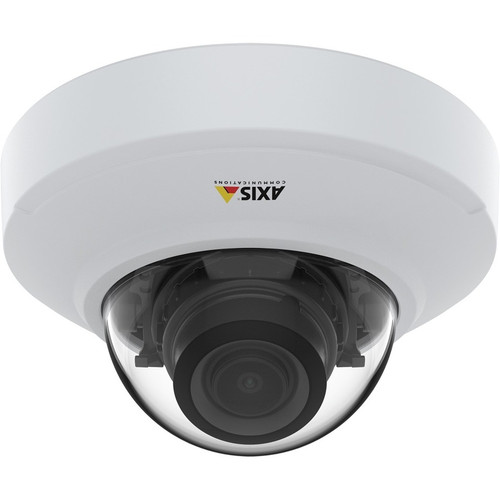

AXIS 02112-001 M4216-V 4MP Indoor Dome Network Camera - Color - White - H. 265/H. 264
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at 2304 x 1728 resolution with a maximum frame rate of 60 fps, ensuring smooth and detailed footage. The RGB CMOS sensor and 110 dB wide dynamic range maintain image clarity in challenging lighting conditions, while the infrared cut-off filter supports day/night operation.
Video encoding includes H.265 (MPEG-H Part 2/HEVC) Main and High Profiles, H.264H, H.264M, and MJPEG formats, with Zipstream technology optimizing bandwidth. The varifocal lens provides 2x optical zoom with focal lengths from 3 mm to 6 mm, allowing flexible field-of-view adjustment from wide 100° horizontal down to 45°.
Relevant factors for this section include HD Recording, Camera Iris, Wide Dynamic Range Detail, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The M4216-V combines high-resolution imaging with intelligent analytics to reduce false alarms and improve security response times. Its AI-powered detection distinguishes between humans, vehicles, and general motion, providing actionable alerts that streamline monitoring operations.
Advanced Imaging
Features a 4MP sensor with 110 dB wide dynamic range and support for H.265 compression, delivering clear video while minimizing storage and bandwidth requirements.
- 4MP resolution at 60 fps
- 110 dB WDR
- H.265/HEVC encoding
Network and Management
Offers Fast Ethernet connectivity with PoE support, remote management capabilities, and extensive protocol compatibility including IPv6, HTTPS, SNMP, and RTSP for integration into diverse network environments.
- PoE power
- Remote management
- IPv4/IPv6 support
Deployment / Use Cases
Ideal for indoor surveillance in retail stores, offices, schools, and healthcare facilities where discreet monitoring and reliable performance are needed. The dome form factor and white color blend into ceiling environments while providing a deterrent presence.
Use cases include entryway monitoring, corridor surveillance, and areas requiring detailed identification of individuals or objects. The camera's digital PTZ, privacy masking, and shock detection features make it suitable for sensitive locations where privacy and tamper resistance are important.
Relevant factors for this section include HD Recording, Camera Iris, Wide Dynamic Range Detail, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail Security
Monitors sales floors and entrances with high-resolution video and AI-based human detection to track customer flow and prevent theft.
Corporate Offices
Provides discreet surveillance in lobbies, hallways, and shared spaces, with remote management for centralized security oversight.
Physical Profile
The camera features a compact dome design measuring 2.80" (71 mm) in height and 4.76" (121 mm) in diameter, with a weight of 12.35 oz (350 g). Its white aluminum and polycarbonate construction offers impact resistance with IK08 and IP42 ratings, suitable for indoor environments where minor physical contact may occur.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.80" (71 mm), 12.35 oz (350 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 2.80" (71 mm)
- Weight
- 12.35 oz (350 g)
- Length
- 3 mm (0.12")
What's in the Box
The package includes the M4216-V dome camera, installation guide, Windows decoder software with a 1-user license, and all necessary mounting hardware for quick deployment.
Highlights
- 4-megapixel resolution for detailed video capture
- H.265 and H.264 video compression for efficient bandwidth use
- AI-powered detection for humans, vehicles, and motion
- PoE (Power over Ethernet) for simplified installation
- Varifocal lens with 2x optical zoom
- Wide dynamic range (110 dB) for challenging lighting
- Dome form factor in white for discreet mounting
- Water, dust, and impact resistant (IP42, IK08)
- Supports memory card storage and 1 GB internal memory
- Five-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02112-001 |
| Brand Name | AXIS |
| Product Series | M42 |
| Product Model | M4216-V |
| Product Name | M4216-V Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Camera Iris | Fixed |
| Wide Dynamic Range Detail | 110 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Japanese,Korean,Portuguese,Simplified Chinese,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 100°-45° Vertical field of view: 72°-34° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265 (MPEG-H Part 2/HEVC) Main Profile,H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),MJPEG,H.264H,H.264M,H.265,Zipstream,H.265 (MPEG-H Part 2/HEVC) High Profile |
| Maximum Video Resolution | 2304 x 1728 |
| Maximum Frame Rate | 60 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3 mm (0.12") |
| Maximum Focal Length | 6 mm (0.24") |
| Lens Included | Yes |
| Minimum Aperture | f/2.7 |
| Maximum Aperture | f/1.9 |
| Optical Zoom | 2x |
| Exposure | |
| Shortest Shutter Speed | 1/37500 Second |
| Longest Shutter Speed | 1/5 Second |
| PTZ Modes | Digital PTZ |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCP,ARP,SSH,LLDP,CDP,MQTT v3.1.1,ZeroConf,DiffServ (QoS) |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 1 GB |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 4.40 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum,Polycarbonate |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant,Impact Resistant |
| Height | 2.80" (71 mm) |
| Diameter | 4.76" (121 mm) |
| Weight (Approximate) | 12.35 oz (350 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 85% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Day/Night,Wide Dynamic Range,Privacy Masking,Motion Detection,Shock Detection,Human Detection,Password Protection,Mirror,PTZ,Vehicle Detection |
| Indoor/Outdoor | Indoor |
| Package Contents | M4216-V Dome Camera Installation Guide Windows decoder 1-User License |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IP42 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution of the AXIS M4216-V camera?
The AXIS M4216-V captures video at 4 megapixel resolution, specifically 2304 x 1728 pixels. This high resolution provides detailed imagery suitable for identification and monitoring purposes in indoor environments.
Does this camera support Power over Ethernet (PoE)?
Yes, the M4216-V is powered via PoE, with a maximum power consumption of 4.40 W. This allows for a single Ethernet cable to provide both data connectivity and power, simplifying installation and reducing wiring complexity.
What video compression formats does the camera use?
It supports H.265 (MPEG-H Part 2/HEVC) Main and High Profiles, H.264H, H.264M, and MJPEG formats. H.265 offers efficient compression to reduce bandwidth and storage needs while maintaining video quality.
Is the AXIS M4216-V suitable for outdoor use?
No, this camera is designed for indoor use only. It operates within a temperature range of 32°F to 113°F (0°C to 45°C) and has an IP42 ingress protection rating, which provides limited resistance to dust and water but is not intended for outdoor exposure.
What AI-powered features does this camera include?
The M4216-V includes AI-powered detection for humans, vehicles, motion, and shocks. These features enhance monitoring accuracy by reducing false alarms and providing specific alerts based on the type of activity detected.
What is included in the package with the camera?
The package contains the M4216-V dome camera, an installation guide, Windows decoder software with a 1-user license, and mounting hardware. This ensures you have all necessary components for setup and integration into your surveillance system.
