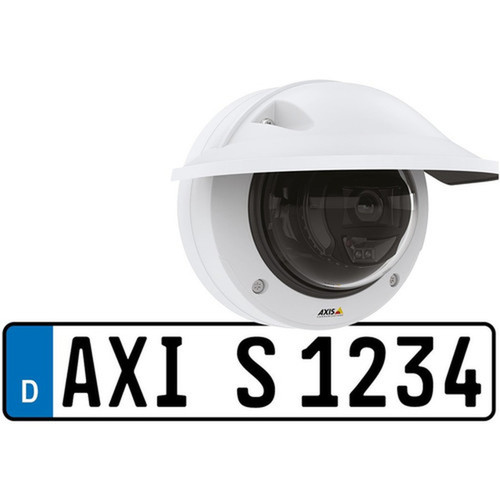

AXIS 02234-001 2MP HD Network Camera - Color Dome - 1080p 60fps - Varifocal Lens - Night Vision 49. 21 ft - IK10/IP66 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera captures video in H.264, H.265, and MJPEG formats, optimizing bandwidth usage and storage efficiency. The RGB CMOS sensor produces color images with accurate white balance and auto gain control, while exposure settings range from 1/66500 second to 2 seconds for precise light management. The f/1.8 maximum aperture enhances low-light performance, and the 60 fps maximum frame rate supports smooth video playback for detailed motion analysis.
Network connectivity is provided through a wired RJ-45 interface, enabling reliable Power over Ethernet (PoE) deployment where supported. Local storage via memory card offers backup recording options, and remote management capabilities allow for centralized configuration and monitoring. The camera operates in temperatures from -40°F to 122°F (-40°C to 50°C) and up to 100% humidity, ensuring reliability in extreme environments.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The AXIS 02234-001 combines high-performance imaging with industrial-grade durability, offering a surveillance solution that balances detail, reliability, and flexibility. Its varifocal lens and wide dynamic range adapt to diverse scene requirements, while advanced analytics like motion detection, tampering alarm, and audio detection enhance security monitoring without additional hardware.
Enhanced Low-Light Performance
The built-in infrared illuminator and removable IR cut-off filter enable clear night vision up to 49.21 feet, with defog and auto gain control maintaining visibility in foggy or backlit conditions.
- 49.21 ft night vision range
- Removable IR cut-off filter
- Defog and wide dynamic range
Robust Physical Design
Constructed with vandal-resistant materials and rated IK10 for impact protection and IP66 for dust and water resistance, this dome camera withstands harsh environments and tampering attempts.
- IK10 impact rating
- IP66 weather resistance
- Vandal-resistant dome
Deployment / Use Cases
This camera is ideal for commercial and institutional surveillance applications where high-definition video and environmental durability are priorities. Its semi-white dome design blends discreetly into ceilings or walls, while multiple mounting options—including junction box, wall, ceiling, bracket, recessed, and pendant mounts—provide installation flexibility for various architectural settings.
Common use cases include retail stores, parking lots, warehouses, and educational facilities, where the camera's 1080p resolution and 60 fps frame rate support license plate verification, facial recognition, and detailed activity monitoring. The TAA compliance makes it suitable for government and public sector projects requiring certified equipment, while PoE compatibility simplifies deployment in networked security systems.
Outdoor Perimeter Security
Deploy in parking areas or building exteriors where IK10/IP66 ratings protect against weather and physical damage, and night vision ensures 24/7 monitoring.
- Weather-resistant for outdoor use
- Night vision up to 49.21 ft
- Tampering alarm for security
Indoor High-Traffic Monitoring
Install in lobbies, corridors, or retail spaces where the 60 fps video and privacy masking features provide clear footage and compliance with privacy regulations.
- 60 fps for smooth motion capture
- Privacy masking capabilities
- Discreet dome design
Physical Profile
The dome form factor measures 4.09 inches in height and 5.87 inches in diameter (103.89 mm x 149.10 mm), with a weight of approximately 1.80 pounds (816.47 grams). The semi-white finish offers a neutral appearance that integrates into most interiors, while the durable construction supports long-term reliability in mounted positions. The compact dimensions facilitate installation in confined spaces without compromising on performance.
- Height
- 4.09" (103.89 mm)
- Weight
- 1.80 lb (816.47 g)
- Length
- 3.4 mm (0.13")
Highlights
- 2-megapixel HD resolution (1920 x 1080) for clear surveillance footage
- Varifocal lens with 2.6x optical zoom and adjustable field of view
- Night vision up to 49.21 feet (15 meters) with built-in IR illuminator
- IK10 impact protection and IP66 weather resistance for durable deployment
- Supports H.264, H.265, and MJPEG video formats for efficient storage
- 60 frames per second maximum frame rate for smooth motion capture
- TAA compliant for U.S. government and public sector procurement
- Multiple mounting options: junction box, wall, ceiling, bracket, recessed, pendant
- Operates in extreme temperatures from -40°F to 122°F (-40°C to 50°C)
- Includes advanced features: defog, wide dynamic range, privacy masking, motion detection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02234-001 |
| Brand Name | AXIS |
| Product Series | P32 |
| Product Model | 02234-001 |
| Product Name | P3245-LVE-3 License Plate Verifier Kit |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 49.21 ft (15 m) |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 100°-36° Vertical field of view: 53°-20° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),MJPEG,H.264,H.265 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.4 mm (0.13") |
| Maximum Focal Length | 8.9 mm (0.35") |
| Lens Included | Yes |
| Maximum Aperture | f/1.8 |
| Optical Zoom | 2.6x |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Other |
| Product Color | Semi-white |
| Mount Type | Junction Box Mount,Wall Mount,Ceiling Mount,Bracket Mount,Recessed Mount,Pendant Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Weather Resistant,Impact Resistant |
| Height | 4.09" (103.89 mm) |
| Diameter | 5.87" (149.10 mm) |
| Weight (Approximate) | 1.80 lb (816.47 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Removable IR Cut-off Filter,White Balance,Day/Night,Auto Gain Control,Defog,Wide Dynamic Range,Privacy Masking,PTZ,Password Protection,HTTPS Encryption,SD Card Local Storage,Cross Line Detection,Motion Detection,Tampering Alarm,Audio Detection,Built-in Infrared Illuminator |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Poland |
| TAA Compliant | Yes |
FAQ
What is the resolution and frame rate of this AXIS network camera?
The AXIS 02234-001 captures 2-megapixel video at a maximum resolution of 1920 x 1080 (1080p) and supports up to 60 frames per second. This high frame rate ensures smooth, detailed footage for monitoring fast-moving activities, making it suitable for applications like license plate verification or crowded area surveillance where motion clarity is essential.
How far does the night vision reach on this camera?
This camera provides night vision up to 49.21 feet (15 meters) using its built-in infrared illuminator. It includes a removable IR cut-off filter to optimize image quality in low-light conditions, ensuring reliable 24/7 monitoring in environments like parking lots or perimeter security where lighting may be limited.
What durability ratings does this dome camera have?
The camera is rated IK10 for impact protection, meaning it can withstand 20 joules of impact force, and IP66 for ingress protection, making it dust-tight and resistant to powerful water jets. These ratings ensure it can endure vandalism, harsh weather, and outdoor conditions, suitable for both indoor and outdoor installations.
What mounting options are available for this camera?
It supports multiple mounting types, including junction box mount, wall mount, ceiling mount, bracket mount, recessed mount, and pendant mount. This flexibility allows for installation in various settings, from ceilings in retail stores to walls in warehouses, adapting to different architectural requirements and surveillance angles.
Is this camera TAA compliant, and what does that mean?
Yes, the AXIS 02234-001 is TAA (Trade Agreements Act) compliant. This certification indicates it meets U.S. government procurement standards, allowing it to be used in federal, state, and local government projects. TAA compliance ensures the camera is manufactured in a designated country, making it eligible for contracts requiring this specification.
What video formats and storage options does the camera support?
It records video in H.264, H.265, and MJPEG formats, offering flexibility for bandwidth and storage optimization. For local storage, the camera supports memory cards, providing an option for backup recording or standalone operation without a network video recorder (NVR). Remote management capabilities allow for easy configuration and monitoring over the network.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
