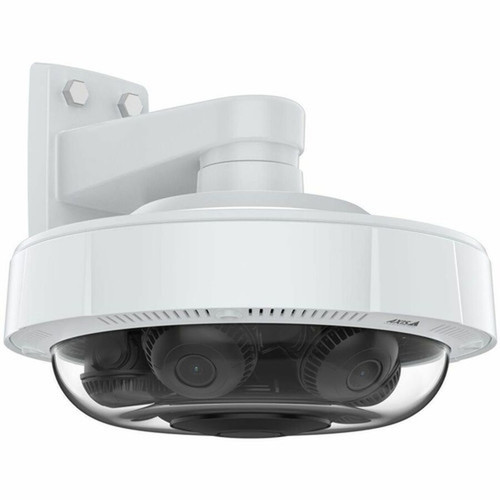

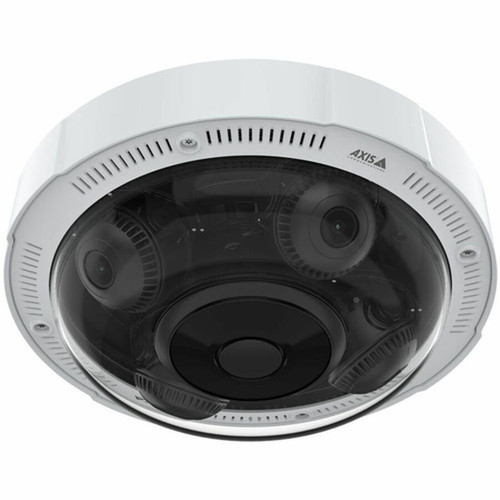

AXIS 02635-001 P3738-PLE 32MP Outdoor 4K Dome Network Camera - White - 4 x 4K Panoramic - Infrared Night Vision to 49.21 ft - PoE - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the P3738-PLE are four 1/2.8" RGB CMOS image sensors that collectively produce 32 megapixels of effective resolution. Each sensor works with a varifocal lens offering a 2.5x optical zoom range from 3.2 mm to 8.1 mm, with apertures from f/1.9 to f/3.2. This optical flexibility allows precise framing adjustment during installation. The camera records at up to 15 frames per second in 4K UHD resolution (3840 x 2160), balancing smooth motion capture with detailed imagery.
Network connectivity is handled through Gigabit Ethernet with comprehensive protocol support including IPv4/IPv6, ONVIF, RTSP, and HTTPS encryption. The camera's deep learning capabilities enable intelligent video analytics such as human detection, vehicle detection, and motion detection directly at the edge. Storage expansion is available via memory card, while remote management features allow administrators to configure and monitor the camera from any network location.
Key Product Advantages
The P3738-PLE delivers multiple advantages for security professionals seeking reliable outdoor surveillance. Its four-sensor panoramic design eliminates blind spots by capturing overlapping fields of view, while the 32-megapixel resolution ensures license plates and facial features remain identifiable even at distance. The camera's rugged construction meets IP66/67 and IK09 ratings, providing complete protection against dust, water jets, and physical impacts up to 5 joules.
Advanced Imaging Performance
Four independent sensors work in unison to deliver 4x 4K video streams with 3D noise reduction and wide dynamic range. The RGB CMOS sensors provide true color reproduction during daylight hours while automatically switching to infrared-optimized monochrome mode in darkness.
- 32MP effective resolution
- 0 lux minimum illumination
- Built-in IR LEDs
- Day/Night operation
Intelligent Video Analytics
Deep learning algorithms process video at the edge to detect humans, vehicles, and motion with high accuracy. These analytics reduce false alarms and enable smart search functions in video management systems.
- Human detection
- Vehicle detection
- Motion detection
- Privacy masking zones
Deployment / Use Cases
The AXIS P3738-PLE is ideally suited for perimeter security, parking lot monitoring, and large facility surveillance where comprehensive coverage and high-resolution detail are critical. Its panoramic imaging capability makes it particularly effective for monitoring wide areas such as warehouse yards, campus entrances, and transportation hubs where traditional single-sensor cameras would require multiple units.
Commercial and industrial facilities benefit from the camera's rugged outdoor rating and temperature tolerance from -22°F to 122°F (-30°C to 50°C). The PoE power delivery simplifies installation in challenging environments by eliminating the need for separate power wiring. Government and education institutions will appreciate the TAA compliance, which ensures the camera meets U.S. federal procurement requirements for surveillance equipment.
Perimeter & Entrance Monitoring
Deploy at facility perimeters, gates, and entry points where the 4x panoramic view provides complete coverage without blind spots. The 49.21-foot night vision range ensures reliable monitoring during overnight hours.
Large Area Surveillance
Install in parking lots, yards, and open spaces where the combination of 32MP resolution and varifocal zoom allows operators to identify details at distance while maintaining wide situational awareness.
Physical Profile
The camera features a white dome housing measuring 10 inches (254 mm) in diameter and 3.60 inches (91.44 mm) in height, with a weight of approximately 4.41 pounds (2000 g). This compact form factor supports multiple mounting options including bracket mount, junction box mount, and conduit mount configurations. The impact-resistant dome design provides both physical protection and discreet surveillance presence, while the white finish blends with commercial building exteriors.
- Height
- 3.60" (91.44 mm)
- Weight
- 4.41 lb (2000 g)
- Length
- 3.2 mm (0.13")
Highlights
- 32-megapixel resolution from four independent RGB CMOS sensors
- 4x 4K panoramic video streams simultaneously
- Infrared night vision extends to 49.21 feet (15 meters)
- PoE-powered with Gigabit Ethernet connectivity
- Rugged IP66/67 and IK09-rated outdoor dome housing
- Varifocal lens with 2.5x optical zoom (3.2mm to 8.1mm)
- Deep learning analytics for human and vehicle detection
- TAA compliant for government procurement
- Operating temperature range: -22°F to 122°F (-30°C to 50°C)
- Supports H.265, H.264, and Motion JPEG video formats
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02635-001 |
| Brand Name | AXIS |
| Product Series | P37 |
| Product Model | P3738-PLE |
| Product Name | P3738-PLE Panoramic Camera 4x 4K Multidirectional With Deep Learning |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 49.21 ft (15 m) |
| Night Vision Type | Infrared |
| Camera Iris | Fixed |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.8" |
| Maximum Illumination | 0 lux |
| Color Supported | Color |
| Field of View | Horizontal field of view: 108°-40°, Vertical field of view: 55°-23°, Diagonal field of view: 131°-46° |
| Effective Camera Resolution | 32 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | Motion JPEG,H.265 (MPEG-H Part 2/HEVC) Main Profile,H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 15 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 8.1 mm (0.32") |
| Lens Included | Yes |
| Minimum Aperture | f/3.2 |
| Maximum Aperture | f/1.9 |
| Optical Zoom | 2.5x |
| Exposure | |
| Shortest Shutter Speed | 1/16000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTP/2,HTTPS,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTCP,RTP,RTSP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,Syslog,UDP/TCP/TLS,ZeroConf,EAP/TLS,IEEE 802.1X,IEEE 802.1AR,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 25.50 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Bracket Mount,Junction Box Mount,Conduit Mount |
| Form Factor | Dome |
| Durability | Impact Resistant |
| Height | 3.60" (91.44 mm) |
| Diameter | 10" (254 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Features | Day/Night,Built-in IR LED,Motion Detection,Vehicle Detection,Human Detection,White Balance,Privacy Protection,Ingress Protection,HTTPS Encryption,3D Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK09 |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
User Manual
FAQ
What is the effective resolution of the AXIS P3738-PLE camera?
The AXIS P3738-PLE delivers 32 megapixels of effective resolution through its four independent image sensors. This high resolution enables detailed imaging for identification purposes, with each sensor contributing to the overall panoramic view. The camera captures sufficient detail to recognize faces, read license plates, and monitor activity at distance when integrated with appropriate video management systems.
How does the night vision perform in complete darkness?
The camera features advanced infrared night vision that provides clear monochrome imaging in total darkness up to 49.21 feet (15 meters). Built-in IR LEDs illuminate the surveillance area without visible light, making the camera discreet for nighttime operation. The 0 lux minimum illumination specification means the camera requires no ambient light to produce usable video, ensuring reliable 24/7 monitoring capability.
What mounting options are available for this dome camera?
The P3738-PLE supports bracket mounting, junction box mounting, and conduit mounting configurations. The 10-inch diameter dome housing includes integrated mounting points for secure installation on walls, ceilings, or poles. The camera's impact-resistant construction and IP66/67 rating ensure it remains protected against environmental elements regardless of mounting orientation or location.
Does this camera support Power over Ethernet (PoE)?
Yes, the AXIS P3738-PLE is PoE-powered, drawing both data connectivity and electrical power through a single Gigabit Ethernet cable. This simplifies installation by eliminating the need for separate power wiring near the camera location. The camera has a maximum power consumption of 25.50 watts, which falls within the capabilities of standard PoE+ (802.3at) switches and injectors.
What video formats does the camera support for recording?
The camera supports Motion JPEG, H.265 (HEVC) Main Profile, and multiple H.264 profiles including H.264B, H.264H, and H.264M. This format flexibility allows integration with various video management systems and efficient bandwidth utilization. H.265 compression provides approximately 50% bandwidth savings compared to H.264 while maintaining similar video quality, making it ideal for high-resolution 4K streaming.
Is this camera suitable for outdoor installation in harsh environments?
Absolutely. The P3738-PLE carries IP66 and IP67 ingress protection ratings, making it completely dust-tight and protected against powerful water jets and temporary immersion. The IK09 impact rating ensures resistance to physical impacts up to 5 joules. With an operating temperature range of -22°F to 122°F (-30°C to 50°C), the camera performs reliably in extreme weather conditions from freezing winters to hot summers.
