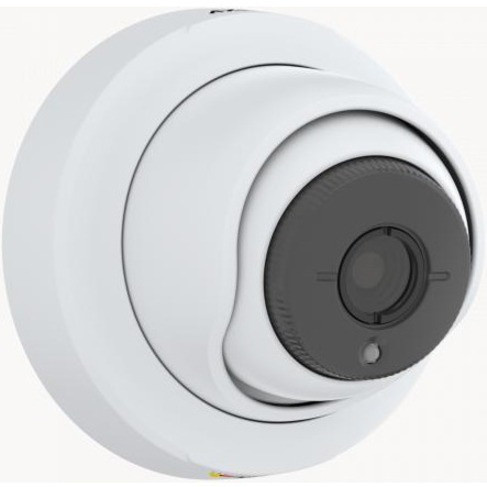

AXIS 01026-001 FA3105-L Indoor HD Network Camera - Color Eyeball - 1080p - 30 fps - 3. 1 mm Fixed Lens - 49. 21 ft Night Vision
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera features a maximum video resolution of 1920 x 1080, delivering full HD clarity for surveillance footage. The 30 fps frame rate ensures smooth video capture, reducing motion blur in dynamic scenes. The RGB CMOS sensor enhances color accuracy and image quality, while the fixed lens with a maximum aperture of f/2 optimizes light intake for better performance in varying lighting conditions.
Exposure control is managed through a shutter speed range from 1/32500 second to 1/30 second, allowing precise adjustment for different environments. The camera operates within a temperature range of -4°F (-20°C) to 122°F (50°C) and up to 85% humidity, ensuring reliability in diverse indoor climates. Its wired connectivity supports stable network integration, and remote management capabilities enable easy configuration and monitoring from centralized systems.
Key Product Advantages
The AXIS FA3105-L combines high-definition video, robust night vision, and a durable design to meet the demands of modern surveillance. Its compact eyeball form factor and surface mount option provide flexible installation, while the wide field of view ensures comprehensive coverage. The camera's environmental resilience and remote management features enhance its suitability for professional security setups.
Enhanced Night Vision
Built-in IR LED delivers clear imaging up to 49.21 ft (15 m) in darkness, supporting 24/7 monitoring without additional lighting.
- IR LED integrated
- Day/Night functionality
- Extended range
High-Quality Imaging
1080p resolution and RGB CMOS sensor produce sharp, color-accurate video, essential for identifying details in surveillance footage.
- Full HD clarity
- Color accuracy
- Wide dynamic range
Durable Construction
Designed for indoor use with a temperature tolerance from -4°F to 122°F, ensuring consistent performance in various climates.
- Wide temperature range
- Humidity resistance
- Reliable operation
Deployment / Use Cases
The FA3105-L is ideal for indoor surveillance applications where clear video and reliable performance are critical. Its 1080p resolution and 30 fps frame rate make it suitable for monitoring high-traffic areas such as entrances, lobbies, and corridors, where detail capture is essential for security and safety.
Common use cases include office buildings for employee and visitor monitoring, retail stores to prevent theft and ensure customer safety, and residential properties for home security. The camera's night vision capabilities extend its usefulness to low-light environments like parking garages or warehouses, while its compact size allows discreet installation in ceilings or walls. Integration with existing network systems is straightforward due to wired connectivity and remote management support.
Commercial Security
Monitor retail spaces, offices, and hospitality venues with high-definition video to enhance security and operational oversight.
Residential Monitoring
Provide home security with clear indoor footage, leveraging night vision for around-the-clock protection in living areas or entry points.
Physical Profile
The camera features an eyeball form factor with a diameter of 2.86" (72.70 mm) and a weight of approximately 3.10 oz (88 g), making it lightweight and unobtrusive for indoor installations. Its surface mount design allows for easy attachment to walls or ceilings, and the compact size ensures minimal visual impact while providing robust surveillance capabilities.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.10 oz (88 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 3.10 oz (88 g)
- Length
- 3.1 mm (0.12")
Highlights
- 1080p HD resolution for clear surveillance video
- 30 fps frame rate ensures smooth motion capture
- 49.21 ft (15 m) night vision with built-in IR LED
- Fixed 3.1 mm lens with wide 103° horizontal field of view
- RGB CMOS sensor for accurate color imaging
- Surface mount and eyeball form factor for flexible installation
- Wired connectivity with remote management support
- Operates in temperatures from -4°F to 122°F
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 01026-001 |
| Brand Name | AXIS |
| Product Series | FA |
| Product Model | FA3105-L |
| Product Name | FA3105-L Eyeball Sensor Unit |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 49.21 ft (15 m) |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 103° Vertical field of view: 55° |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.1 mm (0.12") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/32500 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Physical Characteristics | |
| Mount Type | Surface Mount |
| Form Factor | Eyeball |
| Diameter | 2.86" (72.70 mm) |
| Weight (Approximate) | 3.10 oz (88 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Features | Built-in IR LED,Day/Night |
| Indoor/Outdoor | Indoor |
User Manual
FAQ
What is the maximum video resolution of the AXIS FA3105-L camera?
The AXIS FA3105-L supports a maximum video resolution of 1920 x 1080, delivering full HD clarity for detailed surveillance footage. This resolution ensures sharp imagery suitable for identifying faces, license plates, and other critical details in security applications.
How far does the night vision reach on this camera?
The camera provides night vision up to 49.21 ft (15 m) using its built-in IR LED. This range allows for effective monitoring in low-light or dark indoor environments, maintaining visibility without additional lighting sources.
What type of lens does the FA3105-L have?
It features a fixed lens with a maximum focal length of 3.1 mm (0.12") and a maximum aperture of f/2. The fixed lens design simplifies installation and maintenance, while the wide aperture optimizes light intake for better image quality in various lighting conditions.
Is this camera suitable for outdoor use?
No, the AXIS FA3105-L is designed for indoor use only. It operates within a temperature range of -4°F (-20°C) to 122°F (50°C) and up to 85% humidity, making it resilient for indoor climates but not rated for outdoor exposure.
What mounting options are available for this camera?
The camera supports surface mounting, allowing it to be attached to walls or ceilings. Its eyeball form factor and compact diameter of 2.86" (72.70 mm) enable discreet installation in various indoor settings for optimal surveillance coverage.
Does the camera support remote management?
Yes, the AXIS FA3105-L includes remote management capabilities. With wired connectivity, it can be integrated into network systems for configuration, monitoring, and control from centralized locations, enhancing operational efficiency for security teams.
What processor does this product use?
AXIS FA3105-L Indoor HD Network Camera - Color - Eyeball - 49.21 ft (15 m) - 1920 x 1080 - 3.1 mm (0.12") Fixed Lens - 30 fps - RGB - (01026-001) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
