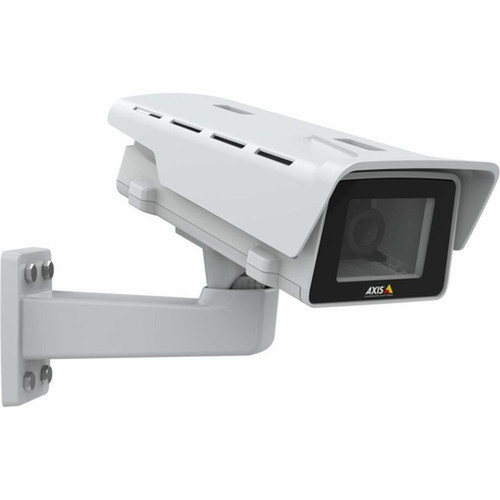

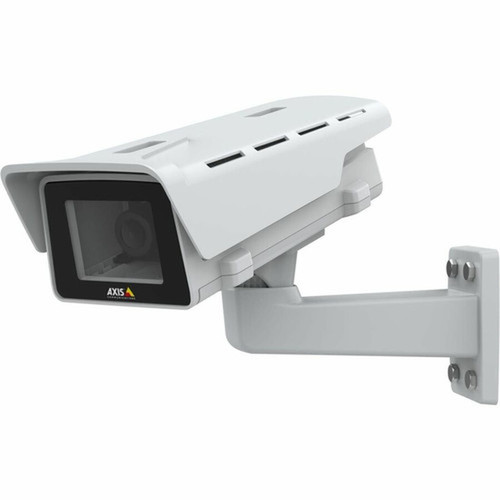

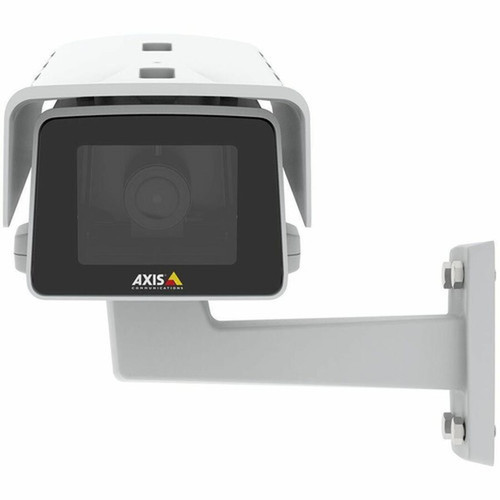

AXIS 02485-001 M1135-E MK II 2MP Outdoor Full HD Network Camera - Varifocal Lens - IP66 - IK10 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera features a 2-megapixel sensor that captures video at 1920 x 1080 resolution with a maximum frame rate of 30 fps. The varifocal lens has a focal length range from 3 mm to 10.5 mm with an f/1.4 maximum aperture, allowing for sharp imaging in various lighting conditions. The CS-mount lens is included and supports manual adjustment to optimize the field of view for specific installation needs.
Video encoding includes H.265 and H.264 compression alongside Motion JPEG, with Axis Zipstream technology reducing bandwidth and storage requirements without compromising image quality. The camera operates in both color and monochrome modes, with day/night functionality and wide dynamic range enhancing performance in challenging light environments. A built-in microphone enables audio detection, while tampering alarm features alert administrators to potential camera interference.
Relevant factors for this section include HD Recording, Recording Formats, Color Supported, Field of View. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AXIS M1135-E MK II combines robust construction with advanced imaging capabilities to deliver reliable outdoor surveillance. Its IP66 rating ensures protection against dust and water jets, while the IK10 impact resistance guards against vandalism and accidental damage. The camera's wide operating temperature range from -13°F to 122°F allows for consistent performance in extreme climates, reducing maintenance needs and downtime.
Enhanced Security Features
Includes tampering alarm, audio detection, and SD card local storage for continuous recording even during network interruptions.
- Tampering Alarm
- Audio Detection
- Local Storage Support
Network Efficiency
Zipstream technology optimizes bandwidth usage by reducing video data size while maintaining critical image details, lowering storage costs.
- Bandwidth Reduction
- Storage Optimization
- Maintained Image Quality
Deployment / Use Cases
This camera is ideal for outdoor security applications where durability and high-quality video are essential. Its wall-mount box form factor and rugged design make it suitable for perimeter fencing, building exteriors, parking facilities, and industrial yards. The varifocal lens allows installers to adjust the field of view precisely, accommodating both wide-area monitoring and focused surveillance of specific points of interest.
Common deployments include retail storefronts, school campuses, transportation hubs, and government facilities requiring TAA-compliant equipment. The camera's support for remote management enables centralized monitoring and configuration across distributed sites, while its compatibility with standard network video recorders and VMS platforms ensures seamless integration into existing security infrastructures.
Perimeter Security
Monitor fences, gates, and property boundaries with weatherproof construction and tamper detection.
- Weatherproof Design
- Tamper Alarm
- Wide Temperature Range
Public Space Surveillance
Deploy in parks, parking lots, and building entrances with clear 1080p video and audio detection capabilities.
- Full HD Video
- Audio Detection
- Remote Management
Highlights
- 2-megapixel resolution for Full HD 1080p video at 30 fps
- Varifocal lens with 3.5x optical zoom and 90° to 33° field of view
- IP66 weatherproof and IK10 impact-resistant housing
- Supports H.265, H.264, Motion JPEG, and Zipstream video formats
- Day/night operation with wide dynamic range and built-in microphone
- Tampering alarm and audio detection for enhanced security
- SD card local storage support for backup recording
- TAA compliant for government and regulated industry use
- Wired connectivity with RJ-45 network interface
- Operating temperature range from -13°F to 122°F
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02485-001 |
| Brand Name | AXIS |
| Product Series | M11 |
| Product Model | M1135-E MK II |
| Product Name | M1135 MK II Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Color Supported | Color,Monochrome |
| Field of View | 90° - 33° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG,Zipstream |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3 mm (0.12") |
| Maximum Focal Length | 10.5 mm (0.41") |
| Lens Included | Yes |
| Lens Mount Type | CS-Mount |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 3.5x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Wall Mount |
| Form Factor | Box |
| Environmental Conditions | |
| Minimum Operating Temperature | -13°F (-25°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Built-in Microphone,Tampering Alarm,Audio Detection,SD Card Local Storage |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
User Manual
FAQ
What is the video resolution of this AXIS network camera?
The AXIS M1135-E MK II captures video at a maximum resolution of 1920 x 1080 pixels, which is Full HD 1080p. This 2-megapixel sensor delivers clear and detailed footage suitable for identifying faces, license plates, and other critical details in surveillance applications. The camera supports a frame rate of up to 30 frames per second for smooth video playback.
Is this camera suitable for outdoor use?
Yes, this camera is designed for outdoor deployment with an IP66 rating for protection against dust and water jets, making it resistant to rain, snow, and harsh weather conditions. It also has an IK10 impact protection rating to withstand physical impacts and vandalism. The operating temperature range from -13°F to 122°F ensures reliable performance in extreme climates.
What type of lens does this camera have?
This camera includes a varifocal lens with a focal length range from 3 mm to 10.5 mm, providing 3.5x optical zoom. The lens has a CS-mount type and a maximum aperture of f/1.4 for good low-light performance. The varifocal design allows installers to manually adjust the field of view from 90° to 33° to optimize coverage for specific surveillance needs.
Does this camera support local storage?
Yes, the camera supports local storage via a memory card (SD card), allowing for continuous recording even if network connectivity is lost. This feature provides redundancy and ensures video footage is preserved during network outages. Combined with remote management capabilities, it enables flexible storage options for security systems.
What video compression formats are supported?
The camera supports multiple video compression formats including H.265, H.264, and Motion JPEG. It also features Axis Zipstream technology, which reduces bandwidth and storage requirements by optimizing video encoding without sacrificing important image details. This makes it efficient for network transmission and long-term storage in surveillance setups.
Is this camera TAA compliant?
Yes, the AXIS M1135-E MK II is TAA (Trade Agreements Act) compliant, meaning it meets U.S. government procurement requirements for products used in federal contracts. This compliance ensures the camera is suitable for deployments in government facilities, public sector projects, and other regulated environments where TAA adherence is mandatory.
