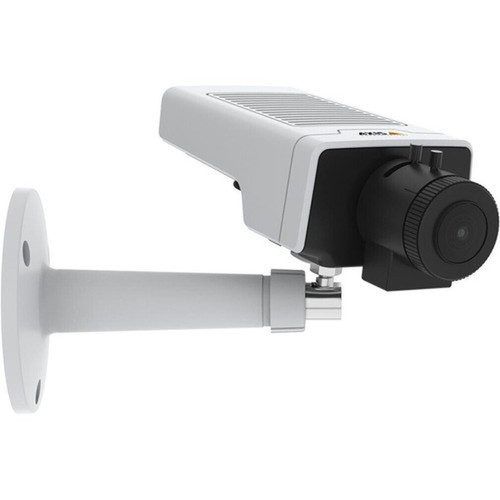

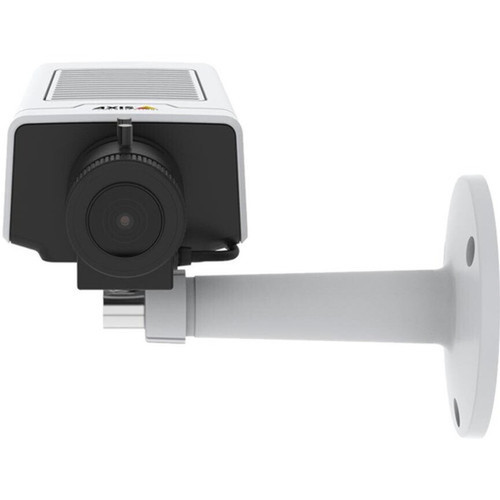

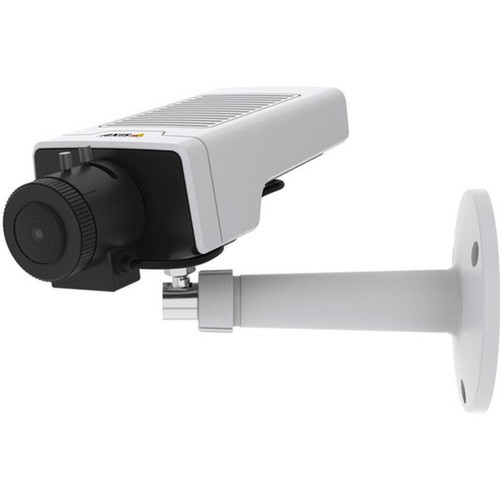

AXIS 02580-001 M1135 Mk II i-CS 2MP Full HD Network Camera - Box - White/Black - Varifocal Lens - Zipstream - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera supports advanced video compression formats including Zipstream, H.264, H.265, and Motion JPEG, optimizing bandwidth and storage efficiency. The Zipstream technology dynamically reduces data size while maintaining critical image details, making it ideal for extended recording periods.
Network connectivity is provided through a wired RJ-45 interface with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable. The camera also accepts 28V DC power for flexible deployment options.
Storage expansion is available via memory card, providing local recording capability without requiring continuous network storage access.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The camera's comprehensive feature set transforms basic surveillance into intelligent monitoring. Audio capabilities include built-in microphone support with audio compression and detection, creating a complete audiovisual security solution.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Analytics Suite, Enhanced Imaging Features.
Advanced Analytics Suite
Built-in video content analytics include human detection, vehicle detection, face detection, and motion detection, reducing false alarms and focusing attention on relevant events.
- Human Detection
- Vehicle Detection
- Face Detection
- Motion Detection
- Audio Detection
Enhanced Imaging Features
Wide Dynamic Range (WDR) compensates for challenging lighting conditions, while day/night functionality ensures consistent performance around the clock.
- Wide Dynamic Range
- Day/Night Operation
- Built-in Microphone
- Active Tampering Alarm
Deployment / Use Cases
This network camera is particularly effective for applications requiring detailed identification and evidence-quality footage. The varifocal lens allows installers to adjust the field of view during setup, making it suitable for both wide-area overviews and focused monitoring of specific points of interest.
Educational institutions, office buildings, and industrial facilities benefit from the camera's remote management capability, enabling centralized configuration and monitoring across multiple locations. The dual-color option (white or black) provides aesthetic flexibility to blend with different environments.
Retail & Commercial Security
Monitor entrances, cash registers, and inventory areas with crisp Full HD video and advanced analytics that distinguish between human activity and environmental motion.
Perimeter & Outdoor Monitoring
The rugged design operates in temperatures from -4°F to 122°F (-20°C to 50°C) with tripod and screw mounting options for flexible installation on walls, ceilings, or poles.
Physical Profile
The compact box form factor measures 2.80" wide × 2.50" high × 5.90" deep (71.12 × 63.50 × 149.86 mm) and weighs just 8.47 ounces (240 grams), making it discreet yet durable for various mounting scenarios. The CS-mount lens system provides professional-grade optical flexibility, while the dual-color finish (white or black) offers installation versatility.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.50" (63.50 mm), 2.80" (71.12 mm), 5.90" (149.86 mm), 8.47 oz (240 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.80" (71.12 mm)
- Depth
- 5.90" (149.86 mm)
- Height
- 2.50" (63.50 mm)
- Weight
- 8.47 oz (240 g)
- Length
- 3.5 mm (0.14")
Highlights
- 2-megapixel Full HD resolution (1920 × 1080) at 30 fps
- Varifocal CS-mount lens with 2.9x optical zoom (3.5-10mm)
- Zipstream, H.265, H.264, and Motion JPEG compression
- Power over Ethernet (PoE) or 28V DC power options
- Advanced analytics: human, vehicle, face, and motion detection
- Wide Dynamic Range and day/night functionality
- Built-in microphone with audio detection
- Operating temperature: -4°F to 122°F (-20°C to 50°C)
- Memory card storage support
- Tripod and screw mounting options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02580-001 |
| Brand Name | AXIS |
| Product Series | M11 |
| Product Model | M1135 Mk II i-CS |
| Product Name | M1135 Mk II Box Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 101°-33° Vertical field of view: 53°-18° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | Zipstream,H.264,H.265,H.264B,H.264H,H.264M,Motion JPEG,H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.5 mm (0.14") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Lens Mount Type | CS-Mount |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 2.9x |
| Exposure | |
| Shortest Shutter Speed | 1/33500 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 28 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | White,Black |
| Mount Type | Tripod Mount,Screw Mount |
| Form Factor | Box |
| Height | 2.50" (63.50 mm) |
| Width | 2.80" (71.12 mm) |
| Depth | 5.90" (149.86 mm) |
| Weight (Approximate) | 8.47 oz (240 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Built-in Microphone,Video Content Analytics,Human Detection,Vehicle Detection,Day/Night,Audio Compression,Audio Detection,Motion Detection,Face Detection,Active Tampering Alarm |
User Manual
FAQ
What resolution does this AXIS camera provide?
The AXIS M1135 Mk II i-CS delivers 2-megapixel Full HD video at 1920 × 1080 resolution with a maximum frame rate of 30 frames per second. This resolution ensures clear, detailed imagery suitable for identification purposes in surveillance applications.
What type of lens is included with this camera?
This camera includes a varifocal CS-mount lens with a focal length range of 3.5 mm to 10 mm, providing 2.9x optical zoom capability. The lens features a wide f/1.4 aperture for enhanced low-light performance and can be adjusted during installation to achieve the desired field of view.
How is this network camera powered?
The camera supports both Power over Ethernet (PoE) and 28V DC power inputs. PoE allows for simplified installation by delivering both data and power through a single Ethernet cable, while the DC input provides flexibility for locations where PoE switches are not available.
What video compression formats are supported?
This camera supports multiple compression formats including Zipstream, H.264, H.265 (HEVC), H.264B, H.264H, H.264M, and Motion JPEG. Zipstream technology optimizes bandwidth usage by reducing data size while preserving important image details, making it efficient for extended recording periods.
What analytics features does this camera include?
The camera includes comprehensive video content analytics with human detection, vehicle detection, face detection, motion detection, and audio detection capabilities. These intelligent features help reduce false alarms by distinguishing between relevant events and environmental changes, focusing attention on meaningful security incidents.
What are the mounting options for this camera?
This box-style camera supports both tripod mounting and screw mounting, providing flexibility for installation on walls, ceilings, poles, or other surfaces. The compact dimensions (2.80" W × 2.50" H × 5.90" D) and lightweight design (8.47 oz) make it suitable for various deployment scenarios.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
