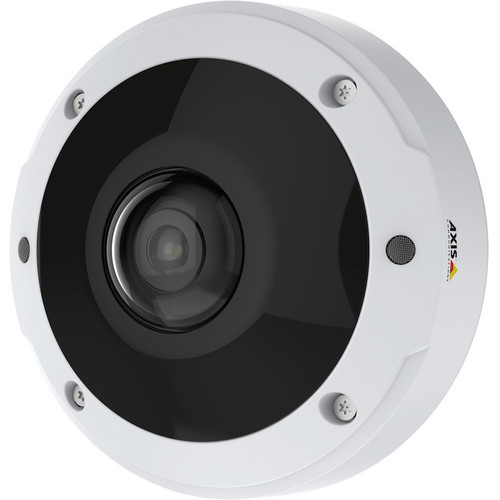

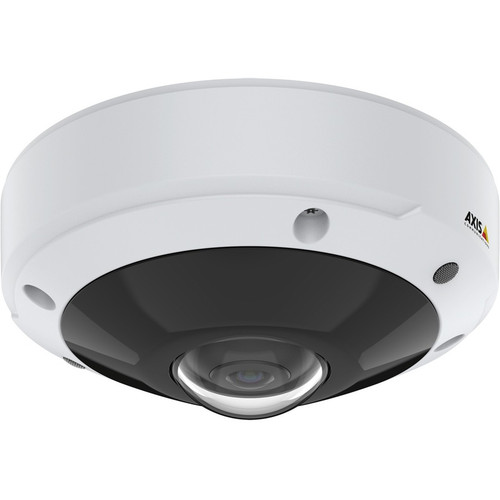

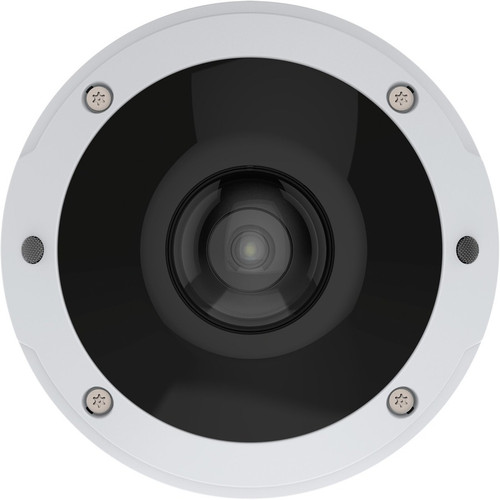

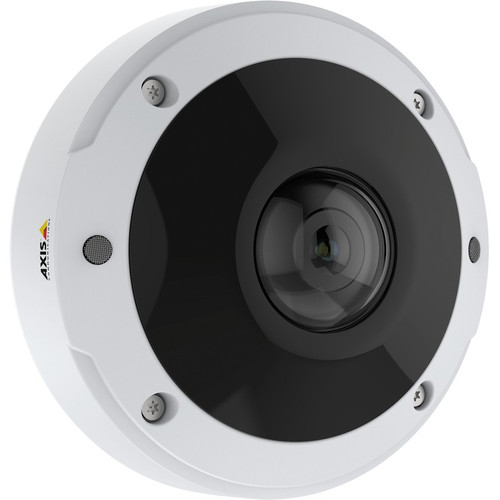

AXIS 02018-001 M3077 6MP Outdoor Dome Network Camera - White - 2560 x 1920 - 65. 62 ft IR Night Vision - H. 264/H. 265 - PoE - IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a fixed 1.6 mm lens with an f/2 aperture, providing consistent focus and light capture. The RGB CMOS sensor enables true color reproduction, and features like automatic white balance, auto gain control, and wide dynamic range optimize image quality in varying lighting conditions. Video streams are encoded in H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), and MJPEG formats, offering flexibility for different recording and streaming needs.
Storage is supported via an SD card slot for local backup, and remote management capabilities allow for centralized control. The camera includes a built-in microphone for audio detection and noise reduction, enhancing situational awareness. With a maximum operating humidity of 100%, it performs reliably in humid outdoor settings.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AXIS M3077 stands out with its combination of high-resolution imaging, robust construction, and versatile features tailored for outdoor security. Its 6MP sensor captures detailed footage, while infrared night vision ensures visibility in complete darkness up to 20 meters. The dome design deters tampering and blends into various environments.
Advanced Compression
H.264 and H.265 support reduces bandwidth and storage requirements without compromising video quality, making it ideal for network-efficient surveillance systems.
- Efficient bandwidth usage
- High-quality video retention
- Compatible with modern recorders
Comprehensive Mounting
Supports pendant, conduit, ceiling, pole, wall, corner, lighting track, and parapet mounts, offering installation flexibility for diverse outdoor scenarios.
- Multiple mounting options
- Easy integration
- Adaptable to site requirements
Deployment / Use Cases
This camera is designed for outdoor surveillance applications where reliability and image clarity are critical. Its IP66 and IK10 ratings make it suitable for harsh weather conditions and high-traffic areas, providing continuous monitoring without degradation.
Common use cases include perimeter security for commercial properties, parking lot surveillance, building entrances, and industrial sites. The PoE capability simplifies deployment in locations without direct power access, while features like motion detection, tampering alarm, and privacy masking enhance security management.
Perimeter Monitoring
Ideal for securing boundaries with its wide field of view and night vision, detecting intrusions in real-time with motion-activated alerts.
Public Space Surveillance
Deploy in parks, streets, or plazas to monitor activity, leveraging its durable construction and audio detection for comprehensive oversight.
Physical Profile
The camera features a compact dome form factor with a height of 2.60" (66 mm) and diameter of 5.87" (149 mm), designed for discreet installation. Its white finish complements architectural aesthetics, and the included mounting bracket, cable gaskets, and connector guard facilitate secure setup. The removable IR cut-off filter ensures accurate color reproduction during daytime, switching to night vision automatically.
- Height
- 2.60" (66 mm)
- Weight
- 1.54 lb (700 g)
- Length
- 1.6 mm (0.06")
What's in the Box
The package includes the M3077-PLVE network camera along with essential installation accessories for quick deployment.
Highlights
- 6MP resolution for detailed 2560x1920 video surveillance
- 65.62 ft infrared night vision with built-in IR LEDs
- PoE-powered for simplified installation and reduced cabling
- IP66 and IK10 ratings for weather and impact resistance
- Supports H.264 and H.265 video compression formats
- Wide 183° field of view for extensive coverage
- Multiple mounting options including ceiling, wall, and pole
- Built-in microphone with audio detection capabilities
- SD card slot for local storage backup
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02018-001 |
| Brand Name | AXIS |
| Product Series | M30 |
| Product Model | M3077 |
| Product Name | M3077-PLVE Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 183° Vertical field of view: 183° |
| Effective Camera Resolution | 6 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),H.264,H.265,MJPEG |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.6 mm (0.06") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/16000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Pendant Mount,Conduit Mount,Ceiling Mount,Pole Mount,Wall Mount,Corner Mount,Lighting Track Mount,Parapet Mount |
| Form Factor | Dome |
| Height | 2.60" (66 mm) |
| Diameter | 5.87" (149 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Built-in IR LED,Removable IR Cut-off Filter,Day/Night,Motion Detection,Tampering Alarm,SD Card Local Storage,Multi-view Stream,Automatic White Balance,Auto Gain Control,Privacy Masking,Video Management System,PTZ,Wide Dynamic Range,Built-in Microphone,Audio Detection,Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Package Contents | M3077-PLVE Network Camera Installation Guide Windows Decoder 1-user license Drill Hole Template Cable Gaskets Connector Guard I/O Connector RESISTORX TR20 bit Mounting Bracket Cable Hole Lid View Protector |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution of the AXIS M3077 camera?
The AXIS M3077 offers 6-megapixel resolution, delivering maximum video quality at 2560 x 1920 pixels. This high resolution ensures clear, detailed footage for identifying faces, license plates, and other critical details in surveillance scenarios, making it suitable for applications where image clarity is paramount.
How far does the night vision reach on this camera?
The camera provides infrared night vision up to 65.62 feet (20 meters). It uses built-in IR LEDs to illuminate dark areas, allowing for continuous monitoring in low-light or no-light conditions. This range is effective for outdoor perimeter security, ensuring visibility during nighttime hours.
Is this camera suitable for outdoor use?
Yes, the AXIS M3077 is designed for outdoor deployment with an IP66 ingress protection rating, which makes it dust-tight and resistant to powerful water jets. It also has an IK10 impact protection rating and operates in temperatures from -40°F to 122°F, ensuring durability in harsh environmental conditions.
What power source does the camera require?
The camera is powered via Power over Ethernet (PoE), which simplifies installation by delivering both data and power through a single Ethernet cable. This eliminates the need for separate electrical wiring, reducing setup complexity and costs, especially in remote or hard-to-reach locations.
What video compression formats are supported?
It supports H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), and MJPEG formats. H.265 offers efficient compression for reduced bandwidth and storage usage, while H.264 ensures compatibility with older systems. This flexibility allows for optimized performance based on network and recording requirements.
What mounting options are available for this dome camera?
The camera supports versatile mounting including pendant, conduit, ceiling, pole, wall, corner, lighting track, and parapet mounts. This flexibility enables installation in various outdoor settings, from building exteriors to poles, ensuring optimal positioning for surveillance coverage.
