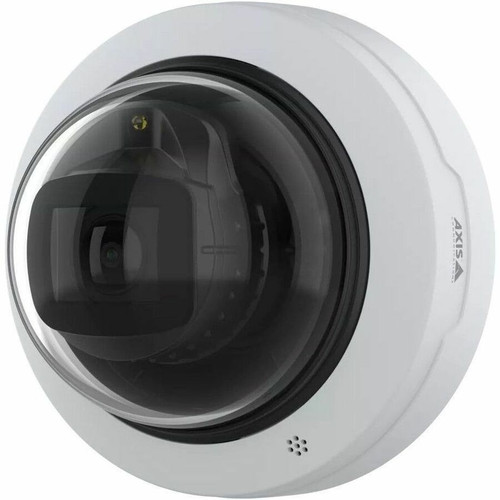

AXIS 02815-001 M4227-LVE 5MP Outdoor Dome Network Camera - Color - White - 66 ft IR Night Vision - H. 264B/H. 265 - PoE - IP66/IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.7" RGB CMOS sensor to capture 5-megapixel color video with support for H.264B, H.264M, H.264H, H.265, and Motion JPEG formats, including Zipstream for efficient bandwidth usage. The varifocal lens offers a focal length from 3.2 mm to 7.2 mm with 2.3x optical zoom, allowing flexible field-of-view adjustments from 98° to 38° horizontally and 66° to 26° vertically.
Advanced imaging features include a 120 dB wide dynamic range (WDR) for balanced exposure in high-contrast scenes, fixed iris, infrared cut-off filter, and digital noise reduction (2DNR and 3DNR) to enhance image quality. AI-powered capabilities enable human detection, face detection, vehicle detection, and active tampering alarm for intelligent surveillance.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The AXIS M4227-LVE combines high-resolution imaging with rugged outdoor durability, making it a versatile choice for perimeter security, parking lots, and building exteriors. Its infrared night vision extends to 66 feet, ensuring reliable monitoring in low-light conditions without additional lighting.
Enhanced Video Quality
With 5-megapixel resolution and support for H.265 compression, this camera delivers detailed footage while optimizing network bandwidth and storage efficiency.
- 120 dB WDR for challenging lighting
- Digital noise reduction for clearer images
- Multiple video format compatibility
Robust Outdoor Design
The dome form factor and IP66/IK10 ratings provide protection against environmental elements and vandalism, ensuring long-term operation in harsh conditions.
- Weather-resistant housing
- Impact-resistant construction
- Wide temperature tolerance
Intelligent Surveillance Features
AI-powered detection algorithms enable precise monitoring of people, vehicles, and tampering events, reducing false alarms and improving security response.
- Human and face detection
- Vehicle detection
- Active tampering alarm
Deployment / Use Cases
This camera is ideal for outdoor surveillance applications where high-resolution video and environmental durability are critical. Its PoE power simplifies installation by delivering both data and power over a single Ethernet cable, reducing wiring complexity and costs.
Common use cases include monitoring entrances, parking areas, retail exteriors, and industrial sites. The dome design offers a discreet appearance, while the varifocal lens allows customization of the viewing angle to match specific site requirements.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Perimeter Security
Deploy along fences or building boundaries to detect intrusions with clear night vision and wide dynamic range for day-and-night coverage.
Parking Lot Monitoring
Use for license plate recognition and vehicle tracking with AI detection features, supported by robust housing to withstand outdoor exposure.
Physical Profile
The camera features a compact dome form factor in white, constructed from plastic and polycarbonate materials for lightweight durability. It weighs approximately 1.19 pounds (540 grams), making it easy to mount on walls or ceilings. The design includes integrated cable management with gaskets for weatherproofing.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.19 lb (540 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.19 lb (540 g)
- Length
- 3.2 mm (0.13")
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 5-megapixel resolution for detailed HD video
- 66 ft infrared night vision for low-light monitoring
- PoE power for simplified installation
- IP66 and IK10 ratings for outdoor durability
- AI-powered human, face, and vehicle detection
- Varifocal lens with 2.3x optical zoom
- Wide operating temperature range (-22°F to 122°F)
- Support for H.264 and H.265 video compression
- 5-year limited warranty for long-term reliability
- TAA compliant for government and institutional use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02815-001 |
| Brand Name | AXIS |
| Product Series | M42 |
| Product Model | M4227-LVE |
| Product Name | M4227-LVE Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 66 ft (20.12 m) |
| Night Vision Type | Infrared |
| Camera Iris | Fixed |
| Wide Dynamic Range (WDR) | Yes |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 98-38° Vertical field of view: 66°-26° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,Zipstream,H.265,H.264 |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 7.2 mm (0.28") |
| Lens Included | Yes |
| Minimum Aperture | f/2.7 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 2.3x |
| Exposure | |
| Shortest Shutter Speed | 1/33500 Second |
| Longest Shutter Speed | 1/5 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMP (v1/v2/v3),SNMP (MIB-2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 2 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 12.30 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Plastic,Polycarbonate |
| Form Factor | Dome |
| Weight (Approximate) | 1.19 lb (540 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,2D Digital Noise Reduction (2DNR),Wide Dynamic Range,Audio Compression,Human Detection,Face Detection,Vehicle Detection,Active Tampering Alarm |
| Indoor/Outdoor | Outdoor |
| Package Contents | M4227-LVE Dome Camera Weathershield Installation Guide Connector Guard Cable Gaskets Owner Authentication Key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What is the resolution of the AXIS M4227-LVE camera?
The AXIS M4227-LVE offers 5-megapixel resolution, delivering video at a maximum of 2688 x 1512 pixels. This high resolution provides clear and detailed footage for surveillance applications, enhancing the ability to identify subjects and events in recorded video.
How far does the night vision reach on this camera?
This camera features infrared night vision with a range of up to 66 feet (20.12 meters). It uses infrared technology to provide reliable monitoring in complete darkness, ensuring continuous surveillance without the need for additional lighting in outdoor environments.
Is this camera suitable for outdoor use?
Yes, the AXIS M4227-LVE is designed for outdoor use with an IP66 rating for dust and water resistance and an IK10 impact protection rating. It operates in temperatures from -22°F to 122°F (-30°C to 50°C), making it durable for harsh weather conditions.
What power source does this camera require?
This camera is powered via Power over Ethernet (PoE), which allows both data and power to be delivered over a single Ethernet cable. This simplifies installation by reducing wiring needs and supports a maximum power consumption of 12.30 watts.
Does this camera include AI features?
Yes, the AXIS M4227-LVE includes AI-powered capabilities such as human detection, face detection, vehicle detection, and an active tampering alarm. These features enable intelligent surveillance by reducing false alarms and focusing on relevant security events.
What is included in the warranty for this camera?
The camera comes with a 5-year limited warranty from AXIS, providing coverage for defects in materials and workmanship. This warranty supports long-term reliability and peace of mind for deployment in critical surveillance applications.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
