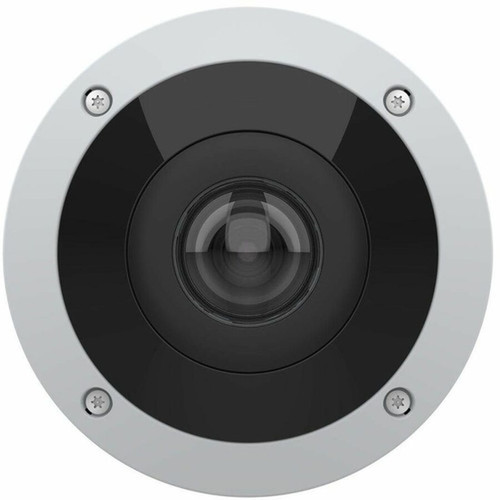

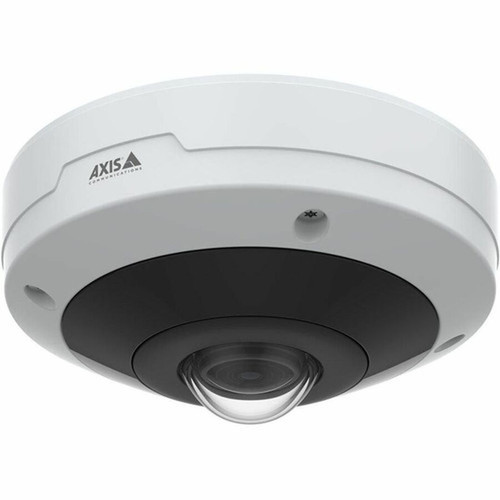

AXIS 02510-001 M4317-PLVE 6MP Outdoor Dome Network Camera - White - 182° Panoramic View - 65. 62 ft IR Night Vision - PoE - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/1.8" RGB CMOS sensor paired with a fixed 1.1 mm lens (f/2.2 aperture) to capture detailed 6-megapixel imagery. The imaging system supports a wide dynamic range and features noise reduction technology for optimal performance in varying lighting conditions.
Video encoding includes H.264, H.265, MPEG-4, and Zipstream formats, providing flexibility for different recording and bandwidth requirements. The camera's exposure control ranges from 1/33500 second to 0.2 second, accommodating both bright daylight and low-light scenarios.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AXIS M4317-PLVE combines advanced imaging capabilities with rugged construction for dependable outdoor surveillance. The built-in infrared LEDs provide 65.62 feet (20 meters) of night vision coverage, ensuring 24/7 monitoring capability without external lighting requirements.
Advanced Analytics Support
Includes support for deep learning analytics with human and vehicle detection capabilities, enabling intelligent monitoring and alerting based on specific object types.
- Human Detection
- Vehicle Detection
- Motion Detection
- Tampering Alarm
Cybersecurity Features
Built-in cybersecurity protections including support for HTTPS, TLS, SSH, and 802.1X authentication help secure video streams and camera management against unauthorized access.
- HTTPS/TLS Support
- SSH Access
- 802.1X Authentication
- Regular Security Updates
Deployment / Use Cases
The AXIS M4317-PLVE is engineered for perimeter security, parking lot monitoring, building entrances, and other outdoor areas requiring reliable surveillance. Its panoramic view makes it particularly effective for covering large open spaces where traditional cameras would require multiple units.
The camera's PoE (Power over Ethernet) capability simplifies installation by delivering both power and data through a single cable, reducing wiring complexity and costs. Multiple mounting options including bracket, junction box, gang box, tripod, and screw mounts provide installation flexibility for various architectural requirements.
Commercial Perimeter Security
Ideal for monitoring building exteriors, parking facilities, and property boundaries with its weather-resistant construction and extended night vision range.
Public Space Surveillance
Suitable for parks, walkways, and public gathering areas where the panoramic view can monitor broad areas with fewer cameras.
Physical Profile
The dome-form camera measures 2.76 inches (70 mm) in height with a 5.87-inch (149 mm) diameter, presenting a compact profile suitable for discreet installation. The white housing blends with light-colored building exteriors while providing UV resistance for long-term outdoor use.
The camera supports day/night operation with automatic switching based on lighting conditions, and features white balance adjustment for accurate color reproduction. The digital roll function simplifies installation by allowing image rotation without physical camera reorientation.
- Height
- 2.76" (70 mm)
- Weight
- 1.90 lb (860 g)
- Length
- 1.1 mm (0.04")
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 6-megapixel resolution for detailed surveillance imagery
- 182° panoramic field of view reduces camera count requirements
- 65.62 ft (20 m) infrared night vision with built-in IR LEDs
- PoE (Power over Ethernet) for simplified installation
- IP66 weatherproof and IK10 impact-resistant ratings
- Support for H.265, H.264, and Zipstream video compression
- Built-in human and vehicle detection analytics
- Multiple mounting options for installation flexibility
- Wide operating temperature range (-40°F to 122°F)
- 5-year manufacturer warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02510-001 |
| Brand Name | AXIS |
| Product Series | M43 |
| Product Model | M4317-PLVE |
| Product Name | AXIS M4317-PLVE Panoramic Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | 182° 182° |
| Effective Camera Resolution | 6 Megapixel |
| Video | |
| Video Formats | H.264,H.264B,H.264H,H.265,H.265M,MPEG-4,Zipstream |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.1 mm (0.04") |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/33500 Second |
| Longest Shutter Speed | 0.2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,TLS,QoS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,DHCPv4/v6,SSH,LLDP,CDP,MQTT v3.1.1,Syslog,ZeroConf,802.1X,EAP/TLS |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Bracket Mount,Junction Box Mount,Gang Box Mount,Tripod Mount,Screw Mount |
| Form Factor | Dome |
| Height | 2.76" (70 mm) |
| Diameter | 5.87" (149 mm) |
| Weight (Approximate) | 1.90 lb (860 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Features | Noise Reduction,Wide Dynamic Range,Day/Night,Motion Detection,Tampering Alarm,PTZ,Built-in IR LED,White Balance,Video Management System,Human Detection,Vehicle Detection |
| Indoor/Outdoor | Outdoor |
| Package Contents | AXIS M4317-PLVE Panoramic Camera 10 x AXIS Connector A 4-pin 2.5 Straight Gasket C M20 AXIS TM3813-E Dome Clear AXIS T94T02S Mounting Bracket |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the effective resolution of the AXIS M4317-PLVE camera?
The AXIS M4317-PLVE delivers 6-megapixel resolution with a maximum video resolution of 2560 x 1920 pixels. This high-resolution imaging provides detailed surveillance footage that maintains clarity even when digitally zoomed, making it suitable for applications where facial recognition or license plate identification may be required.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide night vision coverage up to 65.62 feet (20 meters). This infrared illumination works in complete darkness without visible light, ensuring 24/7 monitoring capability. The camera automatically switches between day and night modes based on ambient light conditions.
What power source does this network camera require?
The camera utilizes Power over Ethernet (PoE), which delivers both electrical power and network connectivity through a single Ethernet cable. This simplifies installation by eliminating the need for separate power wiring near the camera location. The camera supports standard PoE specifications compatible with most network switches and injectors.
Is this camera suitable for outdoor installation?
Yes, the AXIS M4317-PLVE is specifically designed for outdoor use with an IP66 ingress protection rating that makes it dust-tight and protected against powerful water jets. It also features an IK10 impact resistance rating and operates in temperatures from -40°F to 122°F (-40°C to 50°C), ensuring reliable performance in harsh environmental conditions.
What mounting options are available for this dome camera?
The camera supports multiple mounting methods including bracket mount, junction box mount, gang box mount, tripod mount, and screw mount configurations. This flexibility allows installation on various surfaces and structures. The included AXIS T94T02S mounting bracket provides a secure base for typical wall or ceiling installations.
What video management features does this camera support?
The camera supports comprehensive video management including motion detection, tampering alarm, and advanced analytics with human and vehicle detection capabilities. It records in multiple formats including H.264, H.265, MPEG-4, and Zipstream for bandwidth optimization. Remote management is available through standard protocols including HTTP, HTTPS, and SNMP.
