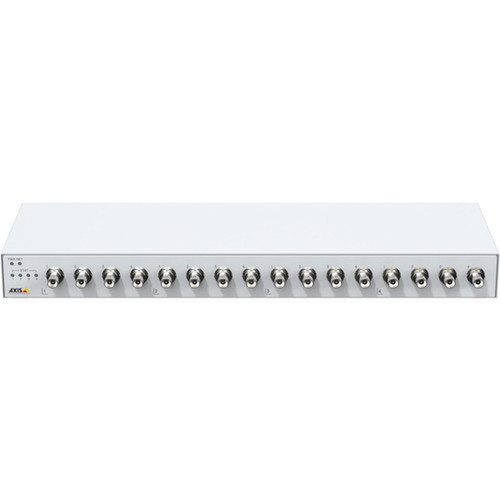

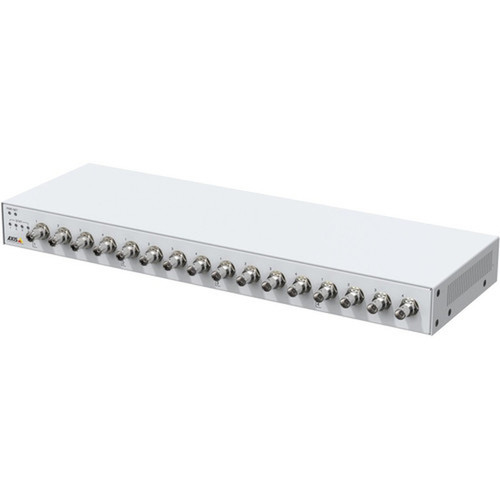

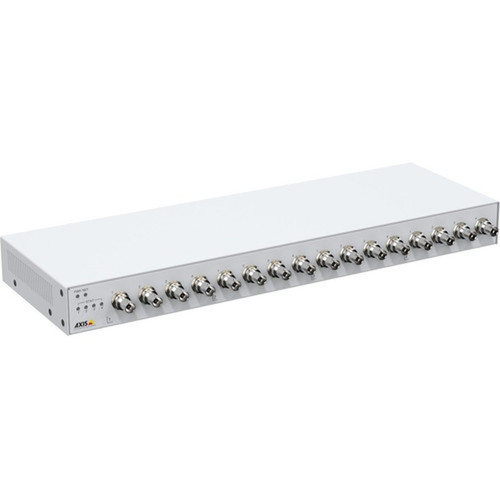

AXIS 02036-004 M7116 Video Encoder - 16-Channel - Wired - 720 x 576 Resolution - H. 265/H. 264
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The M7116 Video Encoder features 16 composite video inputs, allowing simultaneous digitization of multiple analog camera feeds. It includes 1 GB of standard memory to support video processing and streaming tasks. The device supports PAL and NTSC video signal formats, making it suitable for international deployments.
Network connectivity is provided through Ethernet, with remote management capabilities for configuration and monitoring from any location. Composite video inputs ensure compatibility with legacy analog cameras, while RS485/RS422 ports support peripheral integration.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This encoder bridges the gap between analog and IP surveillance systems, extending the life of existing camera investments while enabling modern network-based management. Its 16-channel capacity addresses the needs of growing security setups without requiring a full system replacement.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Bandwidth Efficiency, Reliable Integration.
Bandwidth Efficiency
Support for H.265 and H.264 video compression reduces network load and storage requirements, making it cost-effective for continuous recording.
- Optimized streaming
- Storage savings
Reliable Integration
Wired Ethernet connectivity ensures consistent performance, critical for security monitoring where wireless interference could cause gaps in coverage.
- Stable network connection
- Reduced downtime risk
Deployment / Use Cases
The AXIS M7116 Video Encoder is ideal for businesses upgrading from analog to IP surveillance, such as retail stores, office buildings, and small industrial sites. It allows organizations to leverage existing analog cameras while gaining the benefits of network-based video management.
Common use cases include integrating analog cameras into new NVR systems, expanding surveillance coverage without replacing all hardware, and enabling remote monitoring for multi-site operations. Its TAA compliance makes it suitable for government and public-sector projects requiring approved equipment.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail Security
Deploy in stores to digitize analog camera feeds for centralized recording and loss prevention monitoring.
Facility Management
Use in office or industrial environments to modernize legacy systems and enable remote oversight of entrances and common areas.
Physical Profile
The encoder has a compact design with a weight of approximately 4.52 lb (2050 g), facilitating easy installation in server racks or equipment cabinets. The included mounting and connector kit supports secure placement in various environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.52 lb (2050 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 4.52 lb (2050 g)
What's in the Box
The package includes all necessary components for setup and operation.
Highlights
- 16-channel capacity for small-to-mid-range surveillance needs
- Wired Ethernet connectivity ensures reliable network performance
- Supports H.265 and H.264 video formats for efficient bandwidth use
- Maximum resolution of 720x576 at 30 fps for clear video
- Remote management capability for flexible monitoring
- TAA compliant for government and public-sector deployments
- 5-year limited warranty for long-term reliability
- Includes comprehensive mounting and connector kit
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02036-004 |
| Brand Name | AXIS |
| Product Series | M71 |
| Product Model | M7116 |
| Product Name | M7116 Video Encoder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| HD Recording | No |
| System Components | Video Encoder |
| Memory | |
| Standard Memory | 1 GB |
| Video | |
| Video Formats | H.265,H.264,H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,H.264B,H.264H |
| Video Signal Format | PAL,NTSC |
| Maximum Resolution | 720 x 576 |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| Composite Video In | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 4.52 lb (2050 g) |
| Miscellaneous | |
| Package Contents | M7116 Video Encoder Installation Guide Windows Decoder 1-User License DC Input Plug 8 x 2-Pin RS485/RS422 Plugs Mains Power Supply Mounting and Connector Kit |
| Country of Origin | Poland |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many cameras can the AXIS M7116 Video Encoder support?
The AXIS M7116 Video Encoder supports up to 16 analog cameras through its composite video inputs. This channel count makes it suitable for small-to-mid-range surveillance setups, such as retail stores or office buildings, where multiple camera feeds need digitization for IP-based recording and monitoring.
What video resolutions does this encoder handle?
This encoder handles a maximum resolution of 720 x 576, which is standard definition, with a frame rate of 30 fps. It supports PAL and NTSC video signal formats, ensuring compatibility with analog cameras in various regions. The resolution provides clear footage for security monitoring without requiring high-bandwidth HD streams.
Does the M7116 support remote management?
Yes, the AXIS M7116 Video Encoder includes remote management capabilities. Once connected to the internet via its Ethernet port, you can configure and monitor the device from any location. This feature allows for flexible oversight of surveillance systems, reducing the need for on-site adjustments and enabling quick response to security events.
What video compression formats are supported?
The encoder supports H.265, H.264, and Motion JPEG video formats. H.265 and H.264 are efficient compression standards that reduce bandwidth and storage requirements, making them ideal for continuous recording. Motion JPEG provides frame-by-frame quality for detailed analysis. This flexibility helps optimize performance based on your network and storage constraints.
Is this encoder TAA compliant?
Yes, the AXIS M7116 Video Encoder is TAA compliant, meaning it meets the Trade Agreements Act requirements for government and public-sector procurement in the United States. This compliance ensures the product is eligible for use in federal contracts and other projects that mandate approved equipment, adding value for institutional buyers.
What is included in the package with the encoder?
The package includes the M7116 Video Encoder unit, an installation guide, a Windows Decoder 1-User License, a DC input plug, eight 2-pin RS485/RS422 plugs, a mains power supply, and a mounting and connector kit. These components provide everything needed for setup and integration into existing surveillance systems, ensuring a smooth deployment process.
