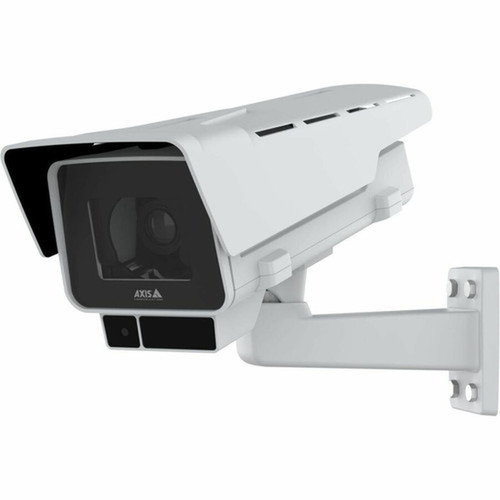

AXIS 02738-001 P1388-LE 8MP Outdoor 4K Network Camera - White Box - 164 ft Infrared Night Vision - IP66/67 - PoE+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the P1388-LE is a 1/1.8-inch CMOS sensor that outputs 8-megapixel stills and 4K video. The camera supports H.264, H.265, and Motion JPEG compression, including Axis Zipstream technology to optimize bandwidth and storage without sacrificing image quality. A P-iris and DC iris control ensures consistent exposure across varying light conditions.
Network connectivity is provided through a single Gigabit Ethernet port with support for Power over Ethernet Plus (PoE+), simplifying installation by carrying both data and power over a single cable. The camera is compatible with a wide range of industry-standard protocols including ONVIF, RTSP, and HTTPS for secure remote management.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AXIS P1388-LE stands out with its combination of high-resolution imaging, extreme durability, and intelligent features. Its rugged design meets IP66 and IP67 ratings for dust and water resistance, along with IK10 impact protection against vandalism. This makes it suitable for outdoor installations in harsh weather, from freezing winters to hot summers.
Superior Low-Light Performance
Infrared illumination and a wide aperture (f/1.5) ensure reliable night vision up to 164 feet, while electronic image stabilization compensates for minor vibrations.
- Built-in IR LEDs
- 1/66500 sec shutter speed
- Day/Night functionality
Advanced Video Management
Support for multiple video streams, motion detection, and audio analytics allows for flexible deployment in various surveillance scenarios.
- Multi-view streaming
- Audio detection
- Motion-activated recording
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, building entrances, and other outdoor areas where high-resolution identification and 24/7 monitoring are critical. Its PoE+ capability allows installation in locations without readily available power outlets, reducing infrastructure costs.
Common applications include retail loss prevention, campus security, transportation hubs, and industrial site monitoring. The camera's TAA compliance ensures it meets U.S. federal procurement requirements, making it a trusted choice for government and institutional projects.
Perimeter & Gate Monitoring
The varifocal lens and 4K resolution provide clear views of license plates and facial features at entry points, even in low light.
Harsh Environment Surveillance
With IP66/67 and IK10 ratings, the camera withstands rain, snow, dust, and physical impacts, ensuring reliability in challenging outdoor conditions.
Physical Profile
The camera features a compact white box form factor designed for discrete wall mounting. Weighing approximately 5.42 pounds (2460 grams), it is solidly constructed to resist tampering and environmental stress. The included CS-mount lens is protected within the housing, and the overall design supports easy integration into existing security infrastructure.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.42 lb (2460 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.42 lb (2460 g)
- Length
- 3.9 mm (0.15")
Highlights
- 8-megapixel CMOS sensor delivers 4K Ultra HD video at 60 fps
- Infrared night vision covers distances up to 164 feet (50 meters)
- IP66 and IP67 rated for dust and water resistance; IK10 vandal resistant
- Power over Ethernet Plus (PoE+) simplifies installation and power delivery
- Varifocal lens with 2.6x optical zoom and wide 122° field of view
- AI-powered analytics for motion, audio, and intelligent event detection
- Supports H.265, H.264, and Motion JPEG with Zipstream optimization
- Operates in extreme temperatures from -40°F to 140°F (-40°C to 60°C)
- TAA compliant for U.S. government procurement requirements
- Local storage via memory card for backup or standalone operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02738-001 |
| Brand Name | AXIS |
| Product Series | P13 |
| Product Model | P1388-LE |
| Product Name | AXIS P1388-LE Box Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft (50 m) |
| Night Vision Type | Infrared |
| Camera Iris | P-iris,DC |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 122°-46° Vertical field of view: 64°-26° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,Motion JPEG,Zipstream,H.264B,H.264M,H.264H,H.265 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.9 mm (0.15") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Lens Mount Type | CS-Mount |
| Maximum Aperture | f/1.5 |
| Optical Zoom | 2.6x |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,QoS,DiffServ (QoS),FTP,SFTP,SMB/CIFS,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,Syslog,RFC 3164/5424,UDP/TCP/TLS,ZeroConf,IEEE 802.1X (EAP-TLS),IEEE 802.1AR |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 25.50 W |
| Input Voltage | 10 V DC,28 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount |
| Form Factor | Box |
| Durability | Impact Resistant,Vandal Resistant,Snow Resistant,Rain Resistant |
| Weight (Approximate) | 5.42 lb (2460 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Day/Night,Video Management System,Wide Dynamic Range,Multi-view Stream,PTZ,SD Card Local Storage,Motion Detection,Electronic Image Stabilization,Audio Detection,Gain Control,Built-in IR LED |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
User Manual
FAQ
What is the maximum video resolution and frame rate of the AXIS P1388-LE?
The camera captures 4K Ultra HD video at 3840 x 2160 resolution with a maximum frame rate of 60 frames per second. This high frame rate ensures smooth, detailed footage suitable for capturing fast-moving objects or critical identification scenes in surveillance applications.
How far does the night vision reach, and what type is it?
The integrated infrared illuminators provide night vision up to 164.04 feet (50 meters). This infrared technology delivers clear monochrome video in complete darkness, allowing for 24/7 monitoring without additional external lighting.
Is this camera suitable for outdoor use in harsh weather?
Yes, the AXIS P1388-LE is built for outdoor environments with an IP66 rating for protection against powerful water jets and an IP67 rating for temporary immersion. It also features IK10 impact resistance, snow and rain resistance, and operates in temperatures from -40°F to 140°F (-40°C to 60°C).
What power options are available for this network camera?
The camera supports Power over Ethernet Plus (PoE+ or 802.3at), which delivers both data and power over a single Ethernet cable, simplifying installation. It can also be powered by a 10-28 V DC source, with a maximum power consumption of 25.5 watts under full operation.
Does the camera include a lens, and what are its zoom capabilities?
Yes, a varifocal lens is included with a CS-mount. It offers a 2.6x optical zoom, adjustable from 3.9 mm (wide 122° horizontal field of view) to 10 mm (46° telephoto). This flexibility allows precise framing during installation without needing additional lenses.
What video compression formats and analytics features are supported?
The camera supports H.264, H.265 (HEVC), and Motion JPEG formats, including Axis Zipstream for efficient bandwidth use. AI-powered analytics include motion detection, audio detection, and electronic image stabilization, enhancing surveillance accuracy and reducing storage needs through smart event recording.
