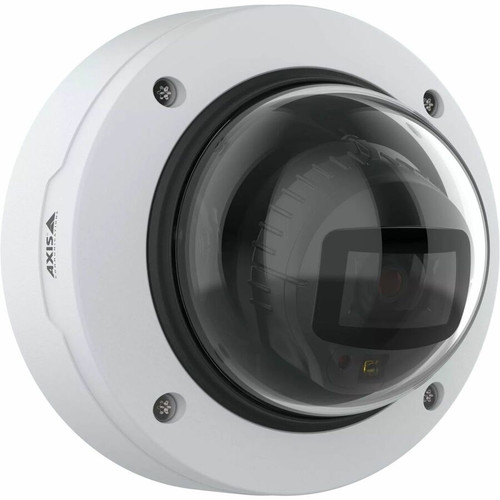

AXIS 03149-001 P3275-LV 2MP Indoor/Outdoor Dome Network Camera - Full HD 1080p - Infrared Night Vision - PoE - White - Vandal Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the P3275-LV is a 1/2.8" RGB CMOS sensor that delivers 2-megapixel resolution, supporting video formats including H.264, H.265, and Motion JPEG. The camera features a varifocal lens with a 3.4 mm to 9.8 mm focal length and 2.9x optical zoom, allowing adjustable field of view from 100° wide to 32° narrow horizontally.
AI-powered analytics enhance surveillance efficiency with capabilities like audio detection and privacy masking. The camera includes a built-in microphone for audio support and uses a P-iris for precise light control, alongside an infrared cut-off filter for accurate color reproduction in day/night operation.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera excels in delivering high-quality surveillance with practical features that reduce installation complexity and enhance durability. Power over Ethernet simplifies deployment by carrying both data and power over a single cable, while the included varifocal lens eliminates the need for separate lens purchases.
Enhanced Low-Light Performance
Infrared night vision ensures reliable monitoring in darkness, complemented by a wide dynamic range of 120 dB to handle high-contrast scenes.
- Infrared illumination
- 120 dB WDR
- Day/night operation
Robust Physical Design
The dome housing is built to withstand vandalism and environmental exposure, with an IK10 impact rating and IP54 protection against dust and water.
- IK10 impact resistant
- IP54 rated
- Polycarbonate construction
Deployment / Use Cases
The AXIS P3275-LV is ideal for commercial and institutional settings where reliable 24/7 surveillance is required. Its indoor/outdoor suitability and PoE support make it a versatile choice for perimeter security, entry points, and high-value asset monitoring.
Common applications include retail stores, office buildings, schools, and parking lots, where its vandal-resistant design and clear 1080p video help deter incidents and provide forensic evidence. The camera's support for protocols like ONVIF and SNMP ensures seamless integration with existing security systems and network management tools.
Perimeter and Entry Monitoring
Use at building entrances, gates, or fences to capture detailed footage of individuals and vehicles, leveraging the wide field of view and infrared night vision.
- Entry point surveillance
- License plate capture
- Night-time security
High-Traffic Area Coverage
Deploy in lobbies, hallways, or retail floors where durability and clear imaging are critical for safety and loss prevention.
- Vandal-resistant dome
- 60 fps smooth video
- Audio detection
Physical Profile
The camera features a compact dome form factor in white, weighing approximately 1.76 lb (800 g). It supports bracket mount and junction box mount options for flexible installation on walls or ceilings. The design includes a cable gasket and connector guard for secure weatherproofing in outdoor setups.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.76 lb (800 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.76 lb (800 g)
- Length
- 3.4 mm (0.13")
What's in the Box
The package includes all necessary components for installation and operation, ensuring a complete out-of-the-box experience.
Highlights
- 2-megapixel resolution delivers Full HD 1080p video at 60 fps
- Infrared night vision ensures clear monitoring in low-light conditions
- Power over Ethernet simplifies installation with single-cable power and data
- Vandal-resistant IK10 and IP54-rated dome housing for durability
- Varifocal lens with 2.9x optical zoom for adjustable field of view
- AI-powered features include audio detection and privacy masking
- Wide dynamic range of 120 dB handles high-contrast lighting
- Supports H.264, H.265, and Motion JPEG video formats
- Indoor/outdoor operation with -40°F to 149°F storage tolerance
- Includes 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03149-001 |
| Brand Name | AXIS |
| Product Series | P32 |
| Product Model | P3275-LV |
| Product Name | P3275-LV Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 100°-32° Vertical field of view: 52°-18° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,Motion JPEG,H.264,H.265,Zipstream,H.264B,H.264M,H.264H |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.4 mm (0.13") |
| Maximum Focal Length | 9.8 mm (0.39") |
| Lens Included | Yes |
| Minimum Aperture | f/2.7 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 2.9x |
| Exposure | |
| Shortest Shutter Speed | 1/37000 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf,IEEE 802.1X (EAP-TLS),IEEE 802.1AR,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 2 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Polycarbonate,Plastic |
| Mount Type | Bracket Mount,Junction Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant |
| Weight (Approximate) | 1.76 lb (800 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 85% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Forensic WDR,3D Noise Reduction,2D Noise Reduction,Defog,Privacy Masking,Auto Gain Control,Built-in Microphone,Day/Night,Wide Dynamic Range,Audio Detection |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | P3275-LV Dome Camera Installation Guide Terminal Block Connector Connector Guard Cable Gasket Owner Authentication Key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP54 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and frame rate of the AXIS P3275-LV camera?
The camera offers 2-megapixel resolution, which provides Full HD video at 1920 x 1080 pixels. It supports a maximum frame rate of 60 frames per second, ensuring smooth and detailed footage for real-time surveillance and playback.
Does this camera support night vision, and what type is used?
Yes, the AXIS P3275-LV includes night vision capability using infrared technology. This allows the camera to capture clear video in complete darkness, making it suitable for 24/7 monitoring in both indoor and outdoor environments.
How is the camera powered, and what are the power requirements?
The camera is powered via Power over Ethernet (PoE), which delivers both data and electrical power over a single Ethernet cable. This simplifies installation by reducing wiring needs. It has a maximum power consumption of 10 watts.
What mounting options are available for this dome camera?
The camera supports bracket mount and junction box mount options, providing flexibility for installation on walls or ceilings. Its dome design is discreet and includes features like a cable gasket for weatherproofing in outdoor setups.
Is the AXIS P3275-LV suitable for outdoor use, and what are its environmental ratings?
Yes, this camera is designed for both indoor and outdoor use. It has an IP54 ingress protection rating against dust and water, and an IK10 impact protection rating for vandal resistance. It operates in temperatures from 32°F to 122°F (0°C to 50°C).
What video formats and protocols does the camera support for integration?
The camera supports multiple video formats including H.264, H.265, and Motion JPEG. For network integration, it uses protocols such as ONVIF, SNMP, RTSP, and HTTP/HTTPS, ensuring compatibility with most surveillance systems and management software.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
