AXIS 03154-001 P3278-LV 8MP 4K Dome Network Camera - Indoor/Outdoor - White - Infrared Night Vision - H. 264B - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures 3840 x 2160 resolution video with a maximum frame rate of 30 fps, ensuring smooth motion representation. The imaging system includes a P-iris for precise light control and a 120 dB wide dynamic range (Forensic WDR) to handle challenging lighting conditions. An infrared cut-off filter enables true day/night functionality, while integrated infrared illumination supports night vision up to the camera's effective range.
Network connectivity is provided through Fast Ethernet with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable. The camera includes 2 GB of internal memory for edge storage and supports a comprehensive suite of protocols including ONVIF for interoperability with third-party VMS platforms.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The P3278-LV combines high-resolution imaging with rugged construction for versatile deployment. Its 8-megapixel sensor delivers four times the detail of 1080p cameras, enabling clearer identification of subjects and license plates. The camera's AI capabilities support intelligent video analytics, reducing false alarms and enhancing security system efficiency.
Superior Low-Light Performance
With infrared night vision and a high-sensitivity sensor, the camera maintains visibility in complete darkness. The day/night function with IR cut-off filter ensures accurate color reproduction during daylight and optimized monochrome imaging at night.
- Infrared illumination
- 120 dB WDR
- 3D noise reduction
Advanced Video Processing
Multiple video compression formats including H.265 and H.264B with Zipstream technology reduce bandwidth and storage requirements without compromising image quality. Forensic WDR preserves detail in both bright and dark areas of the scene.
- H.265/HEVC support
- Zipstream optimization
- Defog and privacy masking
Deployment / Use Cases
The P3278-LV is designed for professional surveillance environments requiring high-resolution monitoring and environmental durability. Its indoor/outdoor rating and vandal-resistant construction make it suitable for retail stores, parking facilities, educational campuses, and industrial sites where both image quality and physical protection are priorities.
The varifocal lens with digital PTZ capabilities allows security operators to adjust the field of view remotely, making this camera effective for both wide-area overviews and focused detail capture. PoE support simplifies installation in new or existing network infrastructures, while ONVIF compliance ensures compatibility with most video management systems.
Retail Security
Monitor entrances, cash registers, and inventory areas with clear 4K detail for loss prevention and customer behavior analysis.
Perimeter Protection
Deploy outdoors to secure building exteriors, parking lots, and gates with weather-resistant construction and night vision capabilities.
Physical Profile

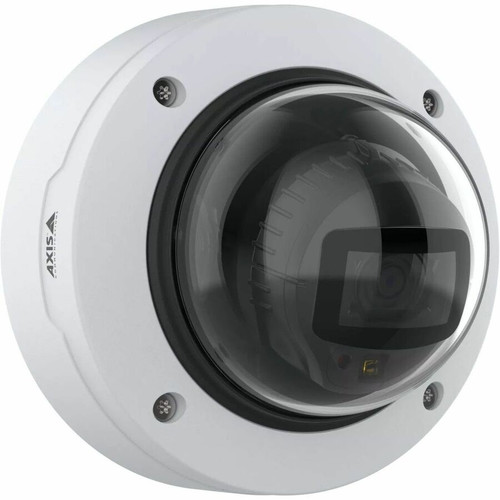

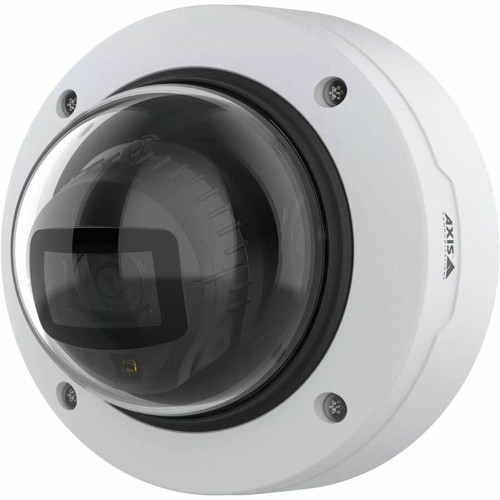

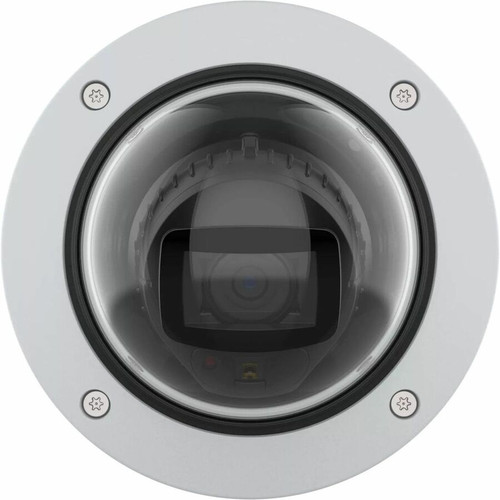

The camera features a white polycarbonate dome housing with a discreet profile suitable for both conspicuous and blended installations. Weighing 1.79 pounds (810 grams), it supports bracket mounting or junction box installation for flexible positioning. The dome design provides environmental protection while maintaining a 103° to 29° horizontal field of view depending on zoom adjustment.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.79 lb (810 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.79 lb (810 g)
- Length
- 4.4 mm (0.17")
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 8-megapixel resolution delivers 4K UHD video at 30 fps
- Varifocal lens with 3.3x optical zoom and digital PTZ
- Infrared night vision with day/night functionality
- 120 dB Forensic WDR handles extreme lighting contrasts
- AI-powered features for intelligent video analytics
- PoE support simplifies installation and power delivery
- IK10 vandal-resistant and IP54 weather-protected
- ONVIF compliant for third-party VMS integration
- Supports H.265, H.264B, and Zipstream compression
- Operating temperature range: 32°F to 122°F (0°C to 50°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03154-001 |
| Brand Name | AXIS |
| Product Series | P32 |
| Product Model | P3278-LV |
| Product Name | P3278-LV Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 103°-29° Vertical field of view: 56°-17° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,Motion JPEG,H.264,H.265,Zipstream,H.264B,H.264M,H.264H |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 14.6 mm (0.57") |
| Lens Included | Yes |
| Minimum Aperture | f/3.65 |
| Maximum Aperture | f/1.65 |
| Optical Zoom | 3.3x |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf,IEEE 802.1X (EAP-TLS),IEEE 802.1AR,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 2 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 12.90 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Polycarbonate,Plastic |
| Mount Type | Bracket Mount,Junction Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant |
| Weight (Approximate) | 1.79 lb (810 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 85% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Forensic WDR,3D Noise Reduction,2D Noise Reduction,Defog,Privacy Masking,Auto Gain Control,Built-in Microphone,Day/Night,Wide Dynamic Range,Audio Detection |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | P3278-LV Dome Camera Installation Guide Terminal Block Connector Connector Guard Cable Gasket Owner Authentication Key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP54 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What resolution does this camera support?
The AXIS P3278-LV captures 8-megapixel video at 3840 x 2160 resolution (4K UHD) with a maximum frame rate of 30 frames per second. This provides four times the detail of standard 1080p cameras, enabling clearer identification of subjects, license plates, and other important details in surveillance footage.
Does this camera work in complete darkness?
Yes, the camera features infrared night vision capabilities that provide visibility in total darkness. It includes an infrared cut-off filter for true day/night functionality, automatically switching between color mode during daylight and optimized monochrome imaging with IR illumination at night.
How is the camera powered?
The P3278-LV supports Power over Ethernet (PoE), which delivers both data connectivity and electrical power through a single Ethernet cable. This simplifies installation by eliminating the need for separate power wiring. The camera has a maximum power consumption of 12.90 watts.
What mounting options are available?
This dome camera supports both bracket mounting and junction box installation for flexible deployment. The white polycarbonate housing is designed for indoor or outdoor use and includes the necessary hardware for secure attachment to walls, ceilings, or other surfaces.
What video compression formats does it support?
The camera supports multiple compression formats including H.265 (HEVC), H.264B, H.264M, H.264H, and Motion JPEG. It also features Zipstream technology, which optimizes bandwidth and storage usage by reducing data in less important areas of the image while maintaining detail where it matters most.
Is this camera suitable for outdoor use?
Yes, the P3278-LV is rated for both indoor and outdoor deployment. It features an IP54 ingress protection rating against dust and water, along with an IK10 impact resistance rating against vandalism. The camera operates in temperatures from 32°F to 122°F (0°C to 50°C) and handles humidity from 10% to 85% non-condensing.
