AXIS 02982-001 P3285-LVE 2MP Indoor/Outdoor Dome Camera - Full HD 1080p - Infrared Night Vision - PoE - Vandal-Resistant - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the P3285-LVE utilizes a 1/2.8" RGB CMOS sensor to produce 2-megapixel video with a maximum resolution of 1920 x 1080. The P-iris lens system maintains optimal aperture control across varying light levels, while the varifocal lens adjusts from 10.8 mm to 28.2 mm, allowing precise field-of-view customization from 29.1° to 11° horizontally. Video compression includes H.264, H.265, and Motion JPEG formats, with Zipstream technology optimizing storage efficiency without sacrificing critical detail.
Network connectivity is handled by a Gigabit Ethernet port with PoE support, drawing a maximum of 10 watts. The camera includes 2 GB of internal memory for edge storage and supports a comprehensive suite of protocols such as ONVIF for interoperability, RTSP for streaming, and SNMP for remote management. Audio capabilities are built-in with a microphone and support for two-way audio, enabling sound detection and communication.
Key Product Advantages
The AXIS P3285-LVE stands out with its combination of high-performance imaging, rugged construction, and intelligent features designed for 24/7 surveillance reliability. Its forensic WDR and 3D noise reduction ensure usable footage in extreme contrast and low-light scenarios, while the vandal-resistant IK10 and IP66 ratings guarantee durability against physical impacts and environmental ingress.
Superior Low-Light Performance
Infrared night vision and a wide f/1.7 aperture enable clear monitoring in complete darkness, with an IR cut filter ensuring accurate color reproduction during daytime.
- Infrared illumination
- 120 dB dynamic range
- Defog and noise reduction
Simplified Deployment
PoE support reduces cabling requirements, while bracket and junction box mounting options offer flexible installation on ceilings, walls, or poles.
- Single-cable power and data
- Multiple mount types
- Gigabit Ethernet throughput
Deployment / Use Cases
This camera is ideal for environments requiring reliable, high-definition surveillance with minimal maintenance. Its indoor/outdoor rating and robust build make it suitable for perimeter security, parking lots, building entrances, and retail floors, where weather resistance and vandal protection are critical.
In commercial settings, the P3285-LVE supports loss prevention and operational monitoring with its detailed 1080p video and audio detection. For industrial applications, its wide temperature range and protocol support allow integration into existing network video systems for asset protection and safety compliance. The camera's AI capabilities also enable advanced analytics when paired with compatible video management software.
Retail & Commercial Security
Monitor sales floors, stockrooms, and entrances with clear daytime and nighttime video, using privacy masking to protect sensitive areas.
Industrial & Outdoor Monitoring
Deploy in warehouses, loading docks, or exterior perimeters where dust, moisture, and temperature fluctuations are common.
Physical Profile

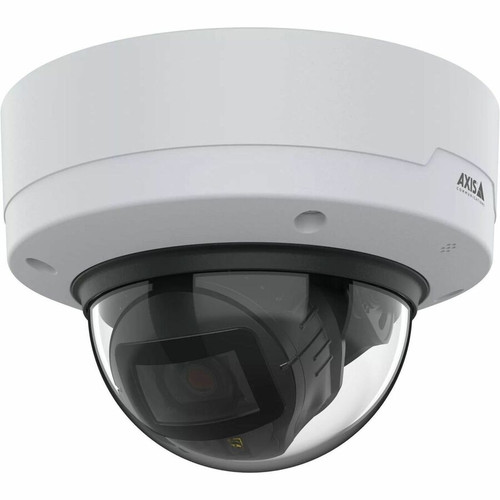

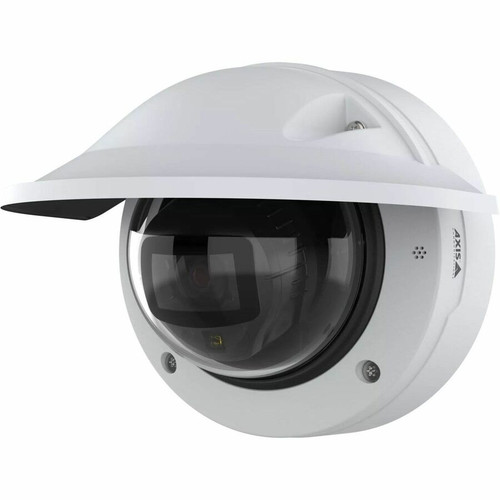

The P3285-LVE features a compact dome design in white, constructed from polycarbonate and plastic for lightweight durability. Weighing approximately 1.90 lb (860 g), it is easy to install on standard brackets or junction boxes. The dome form factor deters tampering and blends into ceiling or wall mounts, while the included weathershield protects connections from the elements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.90 lb (860 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.90 lb (860 g)
- Length
- 10.8 mm (0.43")
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 2-megapixel Full HD 1080p resolution at 60 fps
- Infrared night vision for 24/7 monitoring
- Varifocal lens with 2.6x optical zoom
- Power over Ethernet (PoE) for single-cable setup
- Vandal-resistant IK10 and weatherproof IP66 ratings
- Wide 120 dB dynamic range for challenging lighting
- AI-powered features like forensic WDR and noise reduction
- Supports H.264, H.265, and Motion JPEG video formats
- Built-in microphone for audio detection
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02982-001 |
| Brand Name | AXIS |
| Product Series | P32 |
| Product Model | P3285-LVE |
| Product Name | P3285-LVE Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 29.1°-11° Vertical field of view: 16.4°-6.2° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,Motion JPEG,H.264,H.265,Zipstream,H.264B,H.264M,H.264H |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 10.8 mm (0.43") |
| Maximum Focal Length | 28.2 mm (1.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.7 |
| Optical Zoom | 2.6x |
| Exposure | |
| Shortest Shutter Speed | 1/37000 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf,IEEE 802.1X (EAP-TLS),IEEE 802.1AR,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 2 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Polycarbonate,Plastic |
| Mount Type | Bracket Mount,Junction Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant |
| Weight (Approximate) | 1.90 lb (860 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Forensic WDR,3D Noise Reduction,2D Noise Reduction,Defog,Privacy Masking,Auto Gain Control,Built-in Microphone,Day/Night,Wide Dynamic Range,Audio Detection |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | P3285-LVE Dome Camera Weathershield Installation Guide Terminal Block Connector Connector Guard Cable Gasket Owner Authentication Key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What is the video resolution of the AXIS P3285-LVE camera?
The camera delivers 2-megapixel Full HD video with a maximum resolution of 1920 x 1080 pixels. It supports frame rates up to 60 fps for smooth, detailed footage suitable for live viewing and forensic analysis.
Does this camera support night vision?
Yes, it features integrated infrared illumination for night vision, enabling clear monitoring in low-light or complete darkness. An IR cut filter ensures accurate color reproduction during daytime operation.
How is the AXIS P3285-LVE powered?
It is powered via Power over Ethernet (PoE), which delivers both data and electrical power through a single Gigabit Ethernet cable. This simplifies installation and reduces cabling, with a maximum power consumption of 10 watts.
Is this camera suitable for outdoor use?
Yes, it is rated for indoor and outdoor use with an IP66 ingress protection rating against dust and water jets, and an IK10 impact resistance rating. It operates in temperatures from 32°F to 122°F (0°C to 50°C).
What mounting options are available?
The camera supports bracket mount and junction box mount installations, providing flexibility for ceiling, wall, or pole mounting. The package includes a weathershield and connector guard for secure outdoor setups.
What video formats does the camera support?
It supports H.264, H.265, and Motion JPEG compression formats, including variants like H.264B and H.265 Main Profile. Zipstream technology optimizes bandwidth and storage without losing critical detail.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
