AXIS 03117-021 P3905-R Mk III 2MP Indoor Full HD Dome Network Camera - Color - 1920 x 1080 - 45 fps - PoE - IP66/67 - IK10 - 5-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the P3905-R Mk III utilizes a 1/2.9" RGB CMOS image sensor capable of 2-megapixel resolution, enabling detailed Full HD video capture. The camera's imaging pipeline includes a 120 dB wide dynamic range (WDR) to handle challenging lighting conditions, preserving detail in both bright and shadowed areas. Advanced noise reduction—both 2D and 3D—ensures clean video in low-light scenarios, while features like privacy masking, motion detection, and active tampering alarm enhance security monitoring.
Video encoding is highly flexible, supporting H.264, H.265 (HEVC), Motion JPEG, and Axis Zipstream for optimized bandwidth efficiency. The fixed f/1.2 aperture lens allows ample light intake, with shutter speeds ranging from 1/19000 to 1/5 second for precise exposure control. Digital PTZ and preset point modes offer virtual pan-tilt-zoom functionality without mechanical parts. Network connectivity is via Fast Ethernet with extensive protocol support including ONVIF, RTSP, SNMP, and HTTP/2 for seamless integration into existing surveillance infrastructures.
Key Product Advantages
The AXIS P3905-R Mk III stands out with its combination of high-performance imaging, rugged durability, and deployment-ready features. Its IP66/67 and IK10 ratings provide exceptional resistance to dust, water jets, and physical impacts, ensuring reliable operation in harsh indoor environments. The camera's compact dome design minimizes visual intrusion while offering a vehicle mount for secure installation on ceilings or walls.
Superior Image Quality
Full HD 2MP resolution with 120 dB WDR and advanced noise reduction delivers clear, detailed video even in high-contrast or low-light conditions.
- 2MP RGB CMOS sensor
- 120 dB wide dynamic range
- 2D/3D noise reduction
Rugged & Reliable
Built to withstand demanding environments with IP66/67 ingress protection and IK10 impact resistance, backed by a 5-year warranty.
- IP66/67 rated
- IK10 vandal-resistant
- 5-year warranty
Easy Integration
Supports ONVIF, RTSP, and a wide range of network protocols for seamless compatibility with most VMS and NVR systems.
- ONVIF compliant
- Extensive protocol support
- PoE for simple installation
Deployment / Use Cases
This camera is tailored for indoor surveillance applications where reliability, image clarity, and vandal resistance are critical. Its 107° horizontal field of view and Full HD resolution make it well-suited for monitoring medium to large areas such as retail stores, where it can capture detailed footage of aisles and checkout counters. The digital PTZ functionality allows operators to zoom in on specific regions of interest without sacrificing overall coverage.
In commercial or industrial settings like warehouses, manufacturing floors, or logistics centers, the camera's rugged IP66/67 and IK10 ratings protect against dust, moisture, and physical tampering. The PoE capability simplifies wiring in these often complex environments, reducing installation time and costs. For office buildings, schools, or healthcare facilities, features like privacy masking ensure compliance with privacy regulations while maintaining security oversight in common areas like lobbies, hallways, or parking garages.

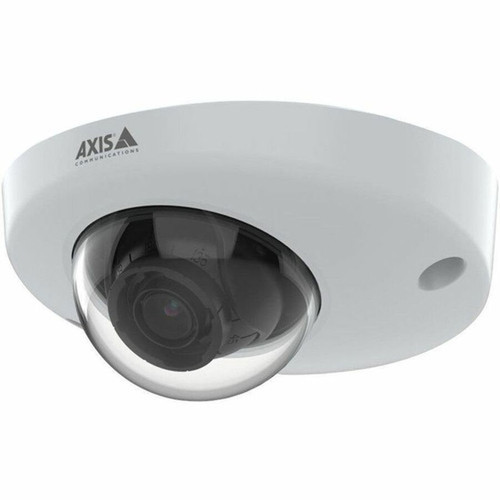

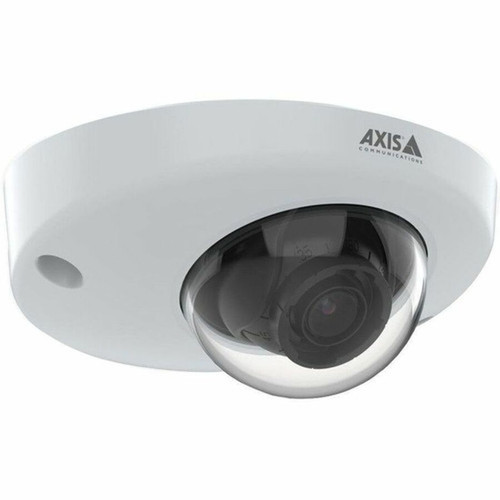

Physical Profile
The P3905-R Mk III features a compact dome form factor measuring 4.33" (110 mm) in diameter and 1.97" (50 mm) in height, designed for discreet ceiling or wall mounting. Its lightweight construction at 8.50 oz (241 g) simplifies handling during installation. The housing is crafted from aluminum and polycarbonate, offering a balance of strength and corrosion resistance. The camera operates reliably across a wide temperature range from -22°F to 131°F (-30°C to 55°C), ensuring consistent performance in varying indoor climates.
- Height
- 1.97" (50 mm)
- Weight
- 8.50 oz (241 g)
- Length
- 2.8 mm (0.11")
What's in the Box
Each unit includes all necessary components for immediate deployment.
Highlights
- 2MP Full HD resolution (1920x1080) at 45 fps for crisp surveillance video
- 120 dB wide dynamic range handles challenging lighting conditions
- PoE powered for simplified installation with a single cable
- IP66/67 and IK10 ratings for dust, water, and vandal resistance
- Fixed 2.8 mm f/1.2 lens with 107° horizontal field of view
- Supports H.264, H.265, Motion JPEG, and Axis Zipstream compression
- ONVIF compliant for easy integration with most VMS systems
- 5-year warranty for long-term reliability and peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03117-021 |
| Brand Name | AXIS |
| Product Series | P39 |
| Product Model | P3905-R Mk III |
| Product Name | P3905-R Mk III Dome Camera |
| Packaged Quantity | 10 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Camera Iris | Fixed |
| Wide Dynamic Range Detail | 120 dB |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.9" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 107°, Vertical field of view: 56° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG,Zipstream,H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 45 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.2 |
| Exposure | |
| Shortest Shutter Speed | 1/19000 Second |
| Longest Shutter Speed | 1/5 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,HTTP,HTTP/2,HTTPS,TLS,DiffServ (QoS),SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,RTSP,RTP,SRTP,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SOCKS,SSH,LLDP,CDP,CSMA/CD,MQTT v3.1.1,Syslog,ZeroConf,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 3.80 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Product Material | Aluminum,Polycarbonate |
| Mount Type | Vehicle Mount |
| Form Factor | Dome |
| Durability | Weather Resistant,Vandal Resistant |
| Height | 1.97" (50 mm) |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 8.50 oz (241 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Miscellaneous | |
| Features | Ingress Protection,Wide Dynamic Range,Video Management System,White Balance,Privacy Masking,Noise Reduction,2D Noise Reduction,3D Noise Reduction,Motion Detection,Active Tampering Alarm |
| Indoor/Outdoor | Indoor |
| Package Contents | P3905-R Mk III Dome Camera Installation Guide Windows Decoder 1-user License Lens Tool |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and frame rate of the AXIS P3905-R Mk III camera?
The camera delivers 2-megapixel Full HD video at a maximum resolution of 1920 x 1080 pixels. It supports frame rates up to 45 frames per second, ensuring smooth, real-time video capture suitable for detailed surveillance monitoring in indoor environments.
Does this camera support Power over Ethernet (PoE)?
Yes, the AXIS P3905-R Mk III is PoE powered, drawing a maximum of 3.80 watts. This allows both data and power to be delivered over a single Ethernet cable, simplifying installation and reducing wiring complexity in surveillance deployments.
What are the durability ratings of this dome camera?
This camera is built for rugged indoor use with an IP66/67 ingress protection rating, making it resistant to dust and powerful water jets. It also carries an IK10 impact protection rating, offering high resistance to vandalism and physical impacts, ensuring reliable operation in demanding environments.
What video compression formats does the camera support?
The camera supports multiple video compression formats including H.264, H.265 (HEVC), Motion JPEG, and Axis Zipstream. This flexibility allows for optimized bandwidth usage and storage efficiency, with Zipstream particularly enhancing compression without sacrificing critical image details.
What is the field of view provided by the fixed lens?
The fixed 2.8 mm f/1.2 lens offers a wide horizontal field of view of 107° and a vertical field of view of 56°. This broad coverage is ideal for monitoring expansive indoor areas such as retail floors, warehouses, or office lobbies with a single camera.
Is this camera compatible with third-party video management systems?
Yes, the AXIS P3905-R Mk III is ONVIF compliant and supports a wide range of network protocols including RTSP, SNMP, and HTTP/2. This ensures seamless integration with most popular video management systems (VMS) and network video recorders (NVRs) on the market.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
