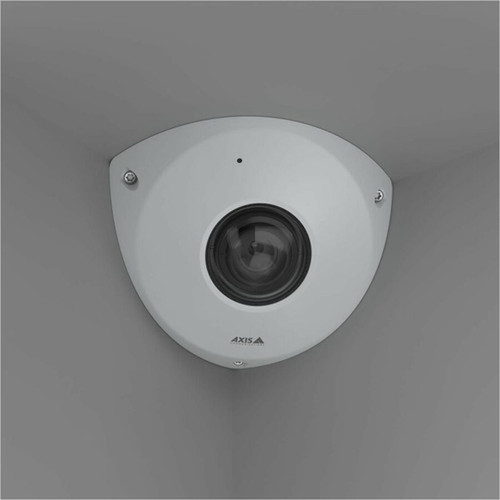

AXIS 02864-001 P9117-PV 6MP Indoor Dome Network Camera - White - 2160 x 2160 @ 60fps - PoE - IP66 IK10 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/1.8" RGB CMOS sensor that delivers true color reproduction across various lighting conditions. The imaging system supports multiple video formats including H.264, H.265, Motion JPEG, and Zipstream for efficient bandwidth utilization without compromising video quality.
Network connectivity is provided through Fast Ethernet with support for industry-standard protocols including ONVIF, IPv4/IPv6, HTTPS encryption, SNMP management, and comprehensive security features. The camera operates on Power over Ethernet (PoE), simplifying installation by delivering both data and power through a single cable.
Relevant factors for this section include HD Recording, Camera Iris, AI-powered, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Advanced Imaging Performance
The 6MP sensor captures detailed 2160x2160 video at 60fps with features like wide dynamic range, day/night operation, and 3D noise reduction for clear surveillance footage in challenging lighting conditions.
- 60 fps at maximum resolution
- Wide dynamic range
- 3D noise reduction
Robust Physical Protection
Built to withstand demanding environments with IP66 ingress protection against dust and water jets, plus IK10 impact resistance for vandal-prone installations.
- IP66 rated
- IK10 impact protection
- Vandal resistant construction
Intelligent Surveillance Features
AI-powered analytics enable advanced video processing capabilities while features like privacy masking, motion detection, and multiple streaming formats provide flexible deployment options.
- AI-powered processing
- Privacy masking zones
- Multiple streaming formats
Deployment / Use Cases
The AXIS P9117-PV is ideally suited for indoor surveillance applications where high-resolution monitoring and physical durability are paramount. Its compact dome design and multiple mounting options make it versatile for various installation scenarios.
Common deployment environments include retail stores for loss prevention, office buildings for access monitoring, educational facilities for corridor surveillance, and healthcare settings where discreet monitoring is required. The camera's TAA compliance makes it suitable for government and public sector installations with specific procurement requirements.
Retail & Commercial Security
Monitor point-of-sale areas, entrances, and inventory spaces with high-resolution video that captures fine details like facial features and product identification.
Corporate & Institutional Monitoring
Deploy in office corridors, lobbies, and restricted areas where vandal resistance and discreet monitoring are essential for security operations.
Physical Profile
The camera features a compact white dome enclosure measuring 5.75" wide x 4.80" deep x 3.62" high (146 x 122 x 92 mm) with a weight of approximately 1.68 pounds (760 grams). This form factor allows for discreet installation while maintaining a professional appearance.
Multiple mounting options including ceiling, wall, and corner installations provide flexibility for various surveillance scenarios. The dome design offers some degree of camera direction concealment while the white color blends well with most indoor environments.
- Width
- 5.75" (146 mm)
- Depth
- 4.80" (122 mm)
- Height
- 3.62" (92 mm)
- Weight
- 1.68 lb (760 g)
- Length
- 1.1 mm (0.04")
Highlights
- 6-megapixel resolution delivers 2160 x 2160 video at 60 frames per second
- AI-powered imaging with advanced analytics capabilities
- IP66 and IK10 ratings provide dust, water, and vandal resistance
- Power over Ethernet (PoE) simplifies installation and reduces cabling
- Wide 176-degree horizontal field of view for comprehensive coverage
- Multiple mounting options: ceiling, wall, and corner installations
- TAA compliant for government and public sector procurement
- Supports H.264, H.265, Motion JPEG, and Zipstream video formats
- Fast Ethernet connectivity with comprehensive protocol support
- Operating temperature range from 5°F to 131°F (-15°C to 55°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02864-001 |
| Brand Name | AXIS |
| Product Series | P91 |
| Product Model | P9117-PV |
| Product Name | P91 9117-PV Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Camera Iris | Fixed |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | Overview (1:1) :Horizontal field of view: 176° Vertical field of view: 176° Corner View (4:3) :Horizontal field of view: 115° Vertical field of view: 100° |
| Effective Camera Resolution | 6 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG,H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,Zipstream |
| Maximum Video Resolution | 2160 x 2160 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.1 mm (0.04") |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/33500 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTP/2,HTTPS,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,UPnP,SNMP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTP,RTSP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,Syslog,ZeroConf,IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2),IEEE 802.1AR,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 5.30 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Corner Mount,Wall Mount,Ceiling Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Dust Resistant |
| Height | 3.62" (92 mm) |
| Width | 5.75" (146 mm) |
| Depth | 4.80" (122 mm) |
| Weight (Approximate) | 1.68 lb (760 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 5°F (-15°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Ingress Protection,HTTPS Encryption,Password Protection,Privacy Masking,White Balance,PTZ,Noise Reduction,3D Noise Reduction |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
User Manual
FAQ
What resolution does the AXIS P9117-PV camera support?
The AXIS P9117-PV captures video at 6 megapixel resolution, specifically 2160 x 2160 pixels. This square format provides detailed imagery suitable for surveillance applications where both horizontal and vertical detail are important. The camera maintains this resolution at up to 60 frames per second for smooth, real-time monitoring.
Is this camera suitable for outdoor installation?
No, the AXIS P9117-PV is designed specifically for indoor use. While it features robust IP66 ingress protection against dust and water jets, its operating temperature range of 5°F to 131°F (-15°C to 55°C) and construction are optimized for controlled indoor environments rather than extended outdoor exposure.
What power source does this network camera require?
The camera operates on Power over Ethernet (PoE), which delivers both data connectivity and electrical power through a single Ethernet cable. This simplifies installation by eliminating the need for separate power cabling. Maximum power consumption is 5.30 watts, making it compatible with standard PoE switches and injectors.
What mounting options are available for this dome camera?
The AXIS P9117-PV supports three mounting configurations: ceiling mount, wall mount, and corner mount. This flexibility allows installation in various surveillance scenarios including above entrances, along corridors, or in room corners. The dome form factor provides some discretion regarding camera direction while maintaining a professional appearance.
What video compression formats does the camera support?
This camera supports multiple video formats including H.264, H.265 (HEVC), Motion JPEG, and Axis Zipstream technology. These options provide flexibility for different network bandwidth conditions and storage requirements. H.265 offers improved compression efficiency, while Zipstream dynamically optimizes video to reduce bandwidth and storage usage without sacrificing important details.
What durability ratings does the AXIS P9117-PV have?
The camera features both IP66 ingress protection rating, which means it's completely dust-tight and protected against powerful water jets, and IK10 impact protection rating, indicating resistance against 20 joules of impact energy (approximately 11 lbs dropped from 16 inches). These ratings make it suitable for demanding environments where vandalism or environmental factors are concerns.
