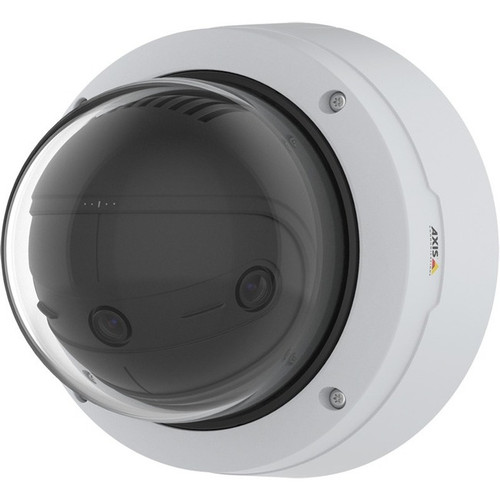

AXIS 02060-001 Panoramic P3818-PVE 13MP Outdoor 4K Dome Network Camera - 180° Field of View - IP66/67 - TAA Compliant - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera supports modern video compression standards including H.264, H.265, and Motion JPEG, with Axis Zipstream technology to optimize bandwidth and storage efficiency. The integrated RGB CMOS sensor delivers color-accurate imaging, while features like auto gain control, noise reduction, and white balance maintain image quality in challenging environments.
Network management is streamlined through wired Ethernet connectivity and remote management capabilities. Local storage is supported via memory card, and built-in security features include HTTPS encryption, password protection, and active tampering alarm.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The P3818-PVE combines high-resolution panoramic imaging with industrial-grade durability, making it ideal for perimeter security, parking lots, and large outdoor areas where reliable, detailed surveillance is critical.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Mounting Flexibility, Advanced Detection Features.
Comprehensive Mounting Flexibility
Supports junction box, wall, ceiling, recessed, pendant, and pole mounting for versatile installation in diverse architectural settings.
- Multiple mount types
- Easy integration
- Flexible placement
Advanced Detection Features
Includes audio detection, motion detection, and privacy masking to enhance security monitoring and compliance with privacy regulations.
- Audio and motion triggers
- Privacy zones
- Real-time alerts
Deployment / Use Cases
This camera is suited for outdoor surveillance applications requiring wide-area coverage and high image detail. Its environmental ratings and vandal-resistant design make it a dependable choice for harsh or public-access locations.
Typical deployments include retail store perimeters, transportation hubs, industrial facilities, educational campuses, and government installations where TAA compliance is required for federal procurement.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Outdoor Perimeter Security
Monitor fences, gates, and building exteriors with 180° panoramic view and 4K resolution for clear identification of subjects and activities.
- Wide coverage
- High detail
- All-weather operation
Large Public Venues
Deploy in parks, parking lots, or stadiums to oversee crowds and assets, leveraging the camera’s robust construction and advanced detection features.
- Crowd monitoring
- Asset protection
- Incident documentation
Physical Profile
The dome-shaped housing measures 6.69 inches in height and 7.68 inches in diameter, with a weight of approximately 4.85 pounds. Its white finish blends with many architectural styles, and the compact form factor supports discreet installation while providing impact and vandal resistance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.69" (170 mm), 4.85 lb (2200 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 6.69" (170 mm)
- Weight
- 4.85 lb (2200 g)
- Length
- 3.2 mm (0.13")
Highlights
- 13-megapixel RGB CMOS sensor for high-resolution 4K video
- 180° horizontal and 90° vertical field of view for panoramic coverage
- IP66/67 and IK10 ratings for outdoor durability and vandal resistance
- Supports H.264, H.265, and Motion JPEG video formats with Zipstream
- Wired Ethernet connectivity with remote management capability
- Built-in microphone, audio detection, and motion detection features
- Operates in temperatures from -40°F to 122°F (-40°C to 50°C)
- TAA compliant for government and institutional procurement
- Includes 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02060-001 |
| Brand Name | AXIS |
| Product Line | Panoramic |
| Product Model | P3818-PVE |
| Product Name | P3818-PVE Panoramic Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 180° Vertical field of view: 90° |
| Effective Camera Resolution | 13 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,H.265,H.264,Zipstream |
| Maximum Video Resolution | 5120 x 2560 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.2 mm (0.13") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/91000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Junction Box Mount,Wall Mount,Ceiling Mount,Recessed Mount,Pendant Mount,Pole Mount |
| Form Factor | Dome |
| Durability | Impact Resistant,Vandal Resistant |
| Height | 6.69" (170 mm) |
| Diameter | 7.68" (195 mm) |
| Weight (Approximate) | 4.85 lb (2200 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Built-in Microphone,Removable IR Cut-off Filter,SD Card Local Storage,White Balance,Noise Reduction,Privacy Masking,Auto Gain Control,Password Protection,HTTPS Encryption,Audio Detection,Active Tampering Alarm,Motion Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and field of view of the AXIS P3818-PVE camera?
The camera offers 13-megapixel resolution with a maximum video resolution of 5120 x 2560. Its field of view is 180° horizontally and 90° vertically, providing wide-area panoramic coverage suitable for monitoring large outdoor spaces like parking lots or perimeters.
Is this camera suitable for outdoor use in harsh weather conditions?
Yes, the P3818-PVE is designed for outdoor deployment with an IP66/67 rating for dust and water resistance, and it operates in temperatures from -40°F to 122°F (-40°C to 50°C). Its IK10 impact protection also makes it vandal-resistant, ensuring reliable performance in challenging environments.
What video formats and compression does the camera support?
It supports H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), and Motion JPEG formats. Axis Zipstream technology is included to optimize bandwidth and storage usage without compromising video quality, which is beneficial for network efficiency.
How is the camera powered and connected to the network?
The camera uses wired connectivity via an RJ-45 Ethernet port for network communication and power over Ethernet (PoE) compatibility, simplifying installation by combining data and power over a single cable. It does not include built-in Wi-Fi.
What storage options are available for recorded video?
Local storage is supported through a memory card slot, allowing for on-device recording. This can be used for backup or in scenarios where network storage is unavailable, though integration with network video recorders (NVRs) is also typical for centralized management.
Does this camera include any warranty or compliance certifications?
It comes with a 5-year limited warranty and is TAA compliant, meeting Trade Agreements Act requirements for U.S. federal government purchases. This makes it a viable option for public-sector and institutional deployments where regulatory adherence is essential.
What processor does this product use?
AXIS Panoramic P3818-PVE 13 Megapixel Outdoor 4K Network Camera - Color - Dome - White - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H - (02060-001) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
