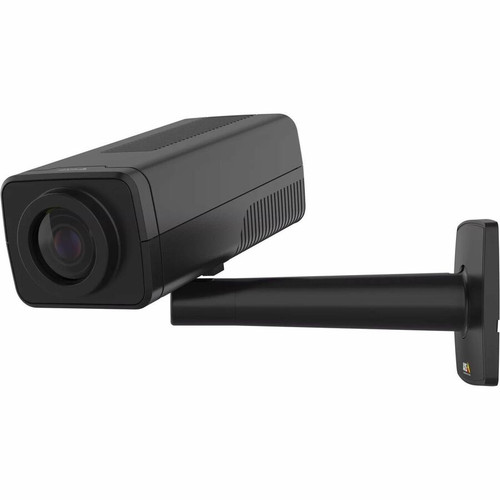

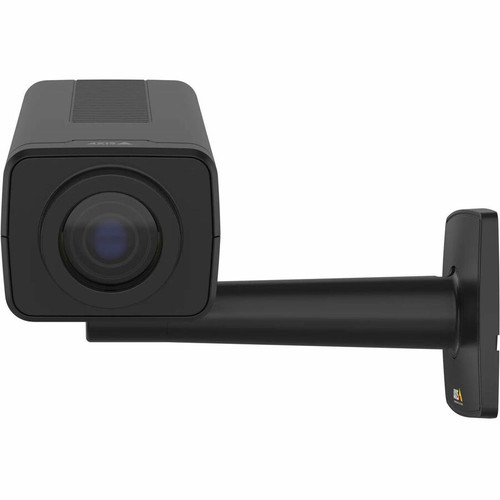

AXIS 02840-001 Q1728 48 mm 8 Megapixel Outdoor 4K Network Camera - Infrared Night Vision - H. 265/H. 264 - Varifocal Lens - PoE/DC Power
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/1.2" RGB CMOS sensor to produce 8-megapixel color images with a horizontal field of view adjustable from 42° to 13° and a vertical field of view from 24° to 7°. Video compression includes H.265, H.264, H.264B, H.264H, H.264M, Motion JPEG, and Zipstream formats, optimizing bandwidth and storage efficiency. The maximum aperture of f/1.7 and shutter speeds from 1/66500 second to 2 seconds enable precise control over exposure in fast-moving or low-light scenarios.
Connectivity is wired via Gigabit Ethernet, supporting a comprehensive suite of protocols such as IPv4/IPv6, HTTP/HTTPS, RTSP, SNMP, and MQTT for seamless integration into network infrastructures. Remote management capabilities allow administrators to configure and monitor the camera from centralized platforms. Storage options include an 8 GB internal memory card and support for external memory cards, with HDMI and RJ-45 ports providing additional output and network interfaces.
Key Product Advantages
The AXIS Q1728 combines high-resolution imaging with intelligent features to deliver a robust surveillance solution. Its 4K video at 60 fps ensures smooth, detailed playback, critical for identifying fine details in security footage. The varifocal lens with optical zoom allows installers to adjust the field of view without compromising image quality, making it adaptable to various installation points and monitoring needs.
Advanced Detection Capabilities
AI-powered analytics detect humans, vehicles, and audio events, reducing manual monitoring and enabling automated alerts. Cross-line detection and electronic image stabilization further enhance reliability in dynamic environments.
- Human Detection
- Vehicle Detection
- Audio Detection
- Cross-Line Detection
Durability and Flexibility
Designed for outdoor use, the camera operates in temperatures from -10°C to 60°C and supports both PoE and DC power, simplifying installation in remote or hard-to-wire locations. The tripod mount offers versatile positioning options.
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, and industrial sites where high-resolution monitoring and outdoor durability are paramount. Its 4K video and varifocal lens make it suitable for capturing license plates, facial details, or wide-area surveillance, while AI detection streamlines event management in busy environments.
In retail or corporate settings, the Q1728 supports loss prevention and access control with its detailed imagery and analytics. The PoE capability reduces cabling complexity, enabling deployment in locations with limited power infrastructure. Integration with existing network video recorders and management software is straightforward due to its support for standard protocols and remote configuration.
Perimeter and Outdoor Security
Monitor boundaries, entry points, and outdoor assets with 4K clarity and infrared night vision, ensuring 24/7 coverage in all weather conditions.
Traffic and Parking Management
Capture high-frame-rate video for traffic flow analysis, parking occupancy, and incident documentation, leveraging vehicle detection for automated alerts.
Physical Profile
The AXIS Q1728 features a compact, rugged design with an aluminum and plastic construction, weighing approximately 1.35 lb (611 g). Its tripod mount facilitates easy installation on poles, walls, or other structures, providing flexibility in positioning. The camera's environmental ratings ensure reliable performance in humid and temperature-variable outdoor settings, with non-condensing humidity tolerance from 10% to 85% operating and 5% to 95% storage.
- Weight
- 1.35 lb (611 g)
- Length
- 15.2 mm (0.60")
What's in the Box
The package includes all necessary components for setup and operation.
Highlights
- 8-megapixel 4K video at 60 fps for detailed surveillance
- Varifocal lens with 3.2x optical zoom for flexible framing
- Infrared night vision for 24/7 outdoor monitoring
- AI-powered detection of humans, vehicles, and audio events
- Wide dynamic range of 120 dB for balanced lighting
- Gigabit Ethernet with PoE and DC power options
- Outdoor-rated design operating from -10°C to 60°C
- Supports H.265, H.264, and multiple video compression formats
- Includes 8 GB internal memory and memory card storage
- Tripod mount for versatile installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02840-001 |
| Brand Name | AXIS |
| Product Series | Q17 |
| Product Model | Q1728 48 mm |
| Product Name | Q1728 Block Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/1.2" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 42°-13°/Vertical field of view: 24°-7° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),Motion JPEG,H.265 (MPEG-H Part 2/HEVC) Main Profile,Zipstream,AVI |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 15.2 mm (0.60") |
| Maximum Focal Length | 48.7 mm (1.92") |
| Lens Included | Yes |
| Maximum Aperture | f/1.7 |
| Optical Zoom | 3.2x |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT,MQTT v3.1.1,RFC 3164/5424,UDP/TCP/TLS |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 8 GB |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 13 W |
| Input Voltage | 10 V DC,28 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Product Material | Aluminum,Plastic |
| Mount Type | Tripod Mount |
| Weight (Approximate) | 1.35 lb (611 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 85% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Day/Night,Audio Detection,Vehicle Detection,Human Detection,Cross Line Detection,Wide Dynamic Range,Electronic Image Stabilization,Auto Gain Control,2D Noise Reduction,3D Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Package Contents | Q1728 Block Camera Installation Guide Owner Authentication Key Stand Terminal Block Connectors Allen Key |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and video quality of the AXIS Q1728 camera?
The AXIS Q1728 delivers 8-megapixel resolution with 4K video at 3840 x 2160 pixels and a maximum frame rate of 60 fps. This high-resolution output ensures crisp, detailed imagery suitable for identifying fine details in security footage, supported by video formats like H.265 and H.264 for efficient compression.
Does this camera support night vision and what type is used?
Yes, the camera features infrared night vision, enabling clear monitoring in low-light or complete darkness. It includes an infrared cut-off filter to optimize color accuracy during daytime and switch to monochrome IR mode at night, ensuring reliable 24/7 surveillance.
What lens options does the AXIS Q1728 offer?
It comes with a varifocal lens that provides a focal length range from 15.2 mm to 48.7 mm, offering 3.2x optical zoom. This allows installers to adjust the field of view horizontally from 42° to 13° and vertically from 24° to 7° without losing image quality, making it adaptable to various monitoring scenarios.
How is the camera powered and what are the connectivity options?
The camera supports both Power over Ethernet (PoE) and DC power, with input voltages of 10 V DC or 28 V DC, and a maximum power consumption of 13 W. Connectivity is via Gigabit Ethernet, ensuring fast data transmission, and it includes an RJ-45 port along with HDMI for local output.
What AI detection features are included?
AI-powered analytics enable detection of humans, vehicles, and audio events, along with cross-line detection for perimeter monitoring. These features reduce false alarms and automate alerting, enhancing situational awareness in security applications.
Is the AXIS Q1728 suitable for outdoor use and what are its environmental ratings?
Yes, it is designed for outdoor deployment with an operating temperature range of 14°F to 140°F (-10°C to 60°C) and humidity tolerance from 10% to 85% non-condensing. The aluminum and plastic construction provides durability against weather elements, making it reliable for perimeter and external surveillance.
How much memory is installed?
It includes 8 GB of memory to support responsive multitasking and daily workloads.
