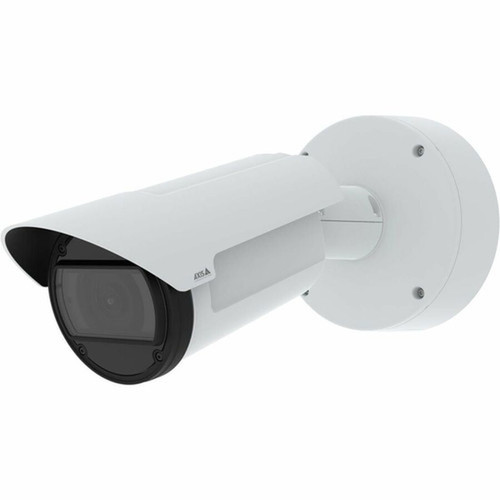

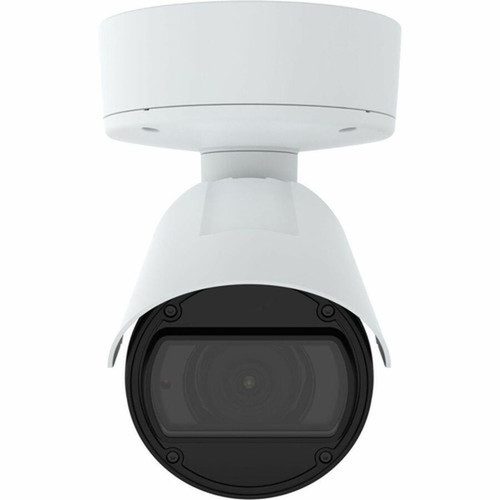

AXIS 02504-001 Q1805-LE 2MP Outdoor Bullet Network Camera - Full HD 1080p - 32x Optical Zoom - 328 ft IR Night Vision - IP66/IP67 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera records at a maximum resolution of 1920 x 1080 with support for multiple video formats including H.265, H.264, and Motion JPEG, ensuring compatibility with various surveillance systems. The P-iris mechanism maintains optimal image clarity across different lighting conditions by precisely controlling the lens aperture.
Network connectivity is handled through Gigabit Ethernet with comprehensive protocol support for IPv4, IPv6, ONVIF, and extensive security standards. The camera's intelligent features include built-in IR LEDs for night vision up to 328 ft, electronic image stabilization, and advanced analytics for vehicle and human detection.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Q1805-LE combines high-performance imaging with enterprise-grade durability for reliable outdoor surveillance. Its 32x optical zoom provides unprecedented detail capture at distance, while the weatherproof construction ensures continuous operation in challenging environments.
Superior Low-Light Performance
Built-in infrared LEDs deliver clear monochrome imaging up to 328 feet in complete darkness, with automatic day/night switching for optimal visibility around the clock.
- Infrared night vision
- Automatic IR cut filter
- Wide dynamic range
Advanced Analytics Capabilities
Onboard processing enables intelligent detection of vehicles and humans, reducing false alarms and focusing attention on relevant security events.
- Vehicle detection
- Human detection
- Motion-activated alerts
Enterprise Security Features
Comprehensive encryption and authentication protocols protect video streams and camera access from unauthorized interception or tampering.
- HTTPS encryption
- IEEE 802.1X authentication
- Privacy masking zones
Deployment / Use Cases
The AXIS Q1805-LE is ideally suited for perimeter security, parking lot monitoring, and critical infrastructure protection where long-range visibility and weather resistance are essential. Its bullet form factor provides a visible deterrent while delivering professional surveillance capabilities.
Common applications include monitoring entry gates, warehouse exteriors, transportation facilities, and industrial complexes. The camera's TAA compliance makes it appropriate for government and educational installations requiring adherence to trade agreement regulations.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Perimeter Security
Monitor property boundaries with the 32x zoom capability to identify details at distance, combined with night vision for 24/7 coverage.
Critical Infrastructure
Withstand extreme temperatures and humidity while providing reliable surveillance for utilities, transportation hubs, and industrial facilities.
Physical Profile
The bullet-style housing features a dual-color white and black finish that blends with various architectural styles. Its substantial 7.05 lb weight contributes to stability in windy conditions, while the included varifocal lens offers focal length adjustment from 4.3 mm to 137 mm for precise field of view configuration.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.05 lb (3200 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 7.05 lb (3200 g)
- Length
- 4.3 mm (0.17")
Highlights
- 2-megapixel resolution delivers Full HD 1080p video at up to 90 fps
- 32x optical zoom varifocal lens for detailed long-range surveillance
- 328 ft infrared night vision with built-in IR LEDs
- IP66/IP67 weatherproof and IK08/IK10 impact-resistant housing
- Supports H.265, H.264, and Motion JPEG video formats
- Gigabit Ethernet with PoE support for simplified installation
- Advanced analytics for vehicle and human detection
- TAA compliant for government and educational deployments
- Operates in extreme temperatures from -40°F to 140°F
- Comprehensive security features including HTTPS encryption and privacy protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02504-001 |
| Brand Name | AXIS |
| Product Series | Q18 |
| Product Model | Q1805-LE |
| Product Name | Q1805-LE Bullet Camera First-class 2 MP surveillance with 32x zoom |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 328.08 ft (100 m) |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 60°-2.3°, Vertical field of view: 39°-1.3° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | Motion JPEG,H.265 (MPEG-H Part 2/HEVC) Main Profile,H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 90 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.3 mm (0.17") |
| Maximum Focal Length | 137 mm (5.39") |
| Lens Included | Yes |
| Minimum Aperture | f/4 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 32x |
| Exposure | |
| Shortest Shutter Speed | 1/111000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,TCP,UDP,IGMPv1/v2/v3,RTCP,DHCPv4/v6,SSH,LLDP,CDP,MQTT v3.1.1,Syslog,ZeroConf,EAP/TLS,IEEE 802.1X,IEEE 802.1AR,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 51 W |
| Input Voltage | 10 V DC,28 V DC,20 V AC,24 V AC |
| Power Source Type | DC,AC,PoE |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | White,Black |
| Form Factor | Bullet |
| Durability | Impact Resistant,Weather Resistant |
| Weight (Approximate) | 7.05 lb (3200 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Day/Night,Built-in IR LED,Motion Sensor,Vehicle Detection,Human Detection,HTTPS Encryption,Privacy Protection,White Balance,Ingress Protection,Electronic Image Stabilization |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK08,IK10 |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
User Manual
FAQ
What is the maximum recording resolution of the AXIS Q1805-LE camera?
The AXIS Q1805-LE captures video at Full HD 1080p resolution (1920 x 1080 pixels) from its 2-megapixel sensor. This provides clear, detailed imagery suitable for identifying faces, license plates, and other important details in surveillance footage. The camera supports this resolution at frame rates up to 90 frames per second for smooth motion capture.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide night vision coverage up to 328.08 feet (100 meters) in complete darkness. The camera automatically switches between color daytime imaging and monochrome infrared mode based on lighting conditions, ensuring continuous surveillance around the clock regardless of ambient light levels.
What power options are available for the Q1805-LE?
This network camera offers flexible power connectivity supporting 10-28V DC, 20-24V AC, or Power over Ethernet (PoE). The maximum power consumption is 51 watts. PoE capability simplifies installation by allowing both power and data transmission over a single Ethernet cable, reducing wiring complexity in outdoor deployments.
Is this camera suitable for outdoor installation?
Yes, the Q1805-LE is specifically designed for outdoor use with IP66/IP67 ingress protection against dust and water immersion, plus IK08/IK10 impact resistance. It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and withstands 100% humidity, making it reliable for harsh environmental conditions year-round.
What video compression formats does the camera support?
The camera encodes video using H.265 (HEVC), H.264 (AVC), and Motion JPEG formats. H.265 provides efficient compression for reduced bandwidth and storage requirements while maintaining high quality. This multi-format support ensures compatibility with various video management systems and network video recorders.
What does TAA compliance mean for this camera?
TAA (Trade Agreements Act) compliance indicates the camera meets requirements for U.S. government procurement, confirming it is manufactured in or substantially transformed in a designated country. This makes the Q1805-LE suitable for federal, state, and educational institutions that must adhere to these trade agreement regulations.
