AXIS 02971-001 Q3546-LVE 4MP Indoor/Outdoor Dome Network Camera - White - Infrared Night Vision - 2688 x 1512 Resolution - H. 264B/H. 265 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera supports modern video compression standards, including H.264B, H.265, and Zipstream, optimizing bandwidth and storage efficiency without sacrificing quality. The integrated 4 GB internal memory provides local recording backup, while compatibility with memory cards expands storage options. Audio support enables integration with two-way communication systems, adding an auditory layer to surveillance setups.
Network connectivity is handled via Gigabit Ethernet with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable. Alternatively, DC power input (8-28 V) offers flexibility for deployments where PoE switches are unavailable. The camera's protocol stack includes ONVIF for interoperability, SNMP for network management, and IPv6 for future-proofed addressing.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Type, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Q3546-LVE stands out with its combination of high-performance imaging, rugged construction, and intelligent features designed for 24/7 operation in varied environments. Its vandal-resistant dome housing, rated IK10 for impact protection, deters tampering while maintaining a discreet profile suitable for public spaces, retail stores, or industrial facilities.
Enhanced Low-Light Performance
Infrared night vision with an automatic IR cut-off filter ensures clear monochrome imagery in total darkness, extending surveillance effectiveness around the clock.
- Infrared illumination
- Auto day/night switching
- Reduced noise with 3D/2D noise reduction
Cybersecurity & Privacy
Built-in cybersecurity features, including TLS encryption and SSH access, protect video streams and configuration data. Privacy masking allows operators to obscure sensitive areas within the camera's field of view.
- TLS/SSH support
- Privacy masking zones
- Secure boot and firmware signing
Deployment / Use Cases
The AXIS Q3546-LVE is ideal for environments requiring reliable, high-definition monitoring with minimal maintenance. Its IP66/IP69 rating for dust and water resistance, along with a wide operating temperature range, makes it suitable for outdoor installations exposed to rain, snow, or extreme temperatures. The bracket mount facilitates easy installation on walls, ceilings, or poles.
Common applications include perimeter security for warehouses or campuses, indoor retail loss prevention, transportation hubs monitoring passenger flow, and industrial facilities overseeing production lines. The camera's support for preset points and digital PTZ modes allows operators to quickly focus on areas of interest, while features like defog and auto gain control maintain image quality in foggy or backlit conditions.
Retail Surveillance
Monitor checkout areas, entrances, and stock rooms with high-resolution video that captures fine details like facial features or license plates, aided by object analytics to flag suspicious behavior.
Industrial & Outdoor Security
Deploy in manufacturing plants, parking lots, or construction sites where dust, moisture, and vandalism are concerns, leveraging the camera's rugged design and wide dynamic range to handle bright sunlight and deep shadows.

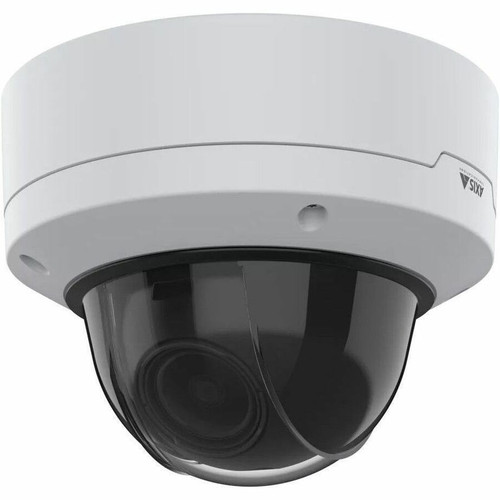

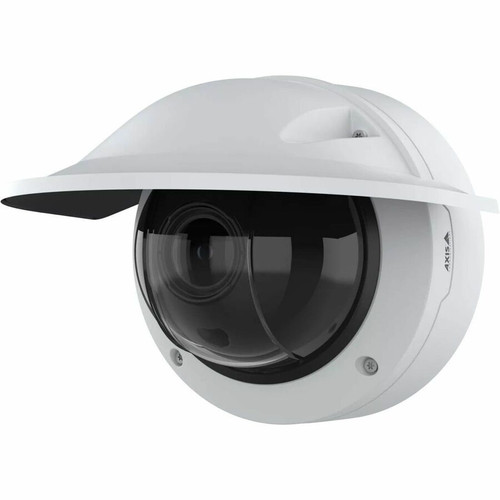

Physical Profile
Housed in a white aluminum and polycarbonate dome, the Q3546-LVE measures approximately 5.20 lb (2360 g), offering a solid, low-profile presence that blends into commercial settings. The dome form factor provides a degree of discretion, as the camera's viewing direction is less obvious compared to bullet-style models. Its bracket mount allows for adjustable positioning, ensuring optimal angle coverage during installation.
- Weight
- 5.20 lb (2360 g)
- Length
- 4.7 mm (0.19")
What's in the Box
The package includes all necessary components for installation and operation, ensuring a quick setup out of the box.
Highlights
- 4-megapixel resolution (2688 x 1512) for detailed surveillance footage
- Infrared night vision with IR cut-off filter for 24/7 monitoring
- Varifocal lens (4.7-10 mm) with 2.1x optical zoom for flexible framing
- Vandal-resistant IK10 and IP66/IP69-rated dome housing
- Power over Ethernet (PoE) and DC input options for easy installation
- AI-powered object analytics and forensic wide dynamic range (120 dB)
- Supports H.264B, H.265, and Zipstream for efficient bandwidth use
- Operating temperature range from -58°F to 131°F (-50°C to 55°C)
- Gigabit Ethernet with ONVIF, SNMP, and IPv6 protocol support
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02971-001 |
| Brand Name | AXIS |
| Product Series | Q35 |
| Product Model | Q3546-LVE |
| Product Name | Q3546-LVE Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Wide Dynamic Range (WDR) | Yes |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 101°-44° Vertical field of view: 54°-25° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),AVI,Motion JPEG,Zipstream,H.264,H.265,H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 120 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.7 mm (0.19") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Minimum Aperture | f/1.2 |
| Maximum Aperture | f/1.1 |
| Optical Zoom | 2.1x |
| Exposure | |
| Shortest Shutter Speed | 1/49500 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Preset Point,Digital PTZ |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | HTTP,HTTPS,TCP,FTP,SFTP,ONVIF,IPv6 USGv6,IPv4,TLS,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMP (v1/v2/v3),NTP,DDNS,IGMPv1/v2/v3,RTCP,ICMP,ARP,SSH,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 4 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 25.50 W |
| Input Voltage | 8 V DC,28 V DC,12 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum,Polycarbonate |
| Mount Type | Bracket Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant |
| Weight (Approximate) | 5.20 lb (2360 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Object Analytics,Built-in Cybersecurity,Noise Detection,3D Noise Reduction,2D Noise Reduction,Privacy Masking,Forensic WDR,Auto Gain Control,Wide Dynamic Range,Defog |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | Q3546-LVE Dome Camera Weathershield Installation Guide Terminal block connectors Connector Guard Cable Gaskets Owner Authentication Key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP6K9K,IP69 |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does the AXIS Q3546-LVE camera support?
The camera supports 4-megapixel resolution at 2688 x 1512 pixels, providing high-definition video that captures fine details such as facial features or license plates. This resolution is ideal for applications requiring clear imagery for identification or forensic review.
Does this camera work in low-light or nighttime conditions?
Yes, it features infrared night vision with an automatic IR cut-off filter, enabling clear monochrome video in total darkness. Combined with a wide dynamic range of 120 dB, it maintains image quality in challenging lighting, such as backlit entrances or dimly lit areas.
How is the AXIS Q3546-LVE powered?
It supports both Power over Ethernet (PoE) and DC input (8-28 V). PoE allows data and power over a single Ethernet cable, simplifying installation, while DC power offers flexibility in locations without PoE switches. Maximum power consumption is 25.5 W.
Is this camera suitable for outdoor use?
Yes, with an IP66, IP6K9K, and IP69 rating for dust and water resistance, along with an operating temperature range of -58°F to 131°F (-50°C to 55°C), it is built for harsh outdoor environments. The vandal-resistant IK10 dome housing also protects against physical impacts.
What video compression formats does the camera support?
It supports H.264B, H.264H, H.264M, H.265, Motion JPEG, and Zipstream. H.265 and Zipstream optimize bandwidth and storage efficiency, making it suitable for networks with limited capacity or long-term recording needs.
Does the AXIS Q3546-LVE include analytics features?
Yes, it includes AI-powered object analytics for detecting people, vehicles, or other objects, reducing false alarms. Additional features like privacy masking, noise detection, and forensic WDR enhance monitoring accuracy and data protection.
How much memory is installed?
It includes 4 GB of memory to support responsive multitasking and daily workloads.
