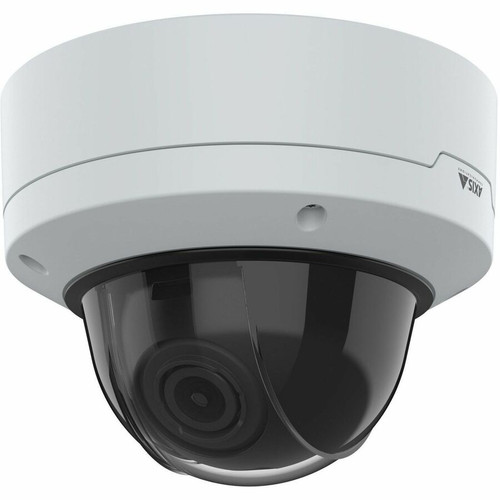

AXIS 02973-001 Q3548-LVE Outdoor 8MP 4K Dome Network Camera - Color - Infrared Night Vision - 120 dB WDR - AI-Powered - PoE/DC - IK10/IP66/IP6K9K
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at up to 60 frames per second in 4K resolution, utilizing H.264 and H.265 compression alongside Zipstream technology for efficient bandwidth and storage use. The varifocal lens offers a 6.3 to 13 mm focal length range with an aperture from f/1.6 to f/2.9, enabling precise field-of-view adjustment from 104° to 50° horizontally.
Advanced features include a 120 dB wide dynamic range for handling high-contrast scenes, an infrared cut-off filter for accurate color reproduction, and AI-powered object analytics for intelligent surveillance. The camera supports multiple video formats and protocols, including ONVIF for interoperability with various VMS platforms.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Q3548-LVE delivers exceptional image clarity with its 8-megapixel sensor and 4K resolution, ensuring detailed surveillance footage for identification and forensic review. Its rugged design and comprehensive environmental ratings make it suitable for outdoor installations where durability is critical.
Superior Low-Light Performance
Infrared night vision ensures reliable monitoring in complete darkness, while the high-sensitivity sensor and wide aperture maintain image quality in low-light conditions.
- Infrared night vision capability
- High 120 dB WDR for backlight scenes
- 3D and 2D noise reduction technologies
Enterprise-Grade Security & Analytics
Built-in cybersecurity features and AI-powered analytics provide proactive threat detection and reduce false alarms through intelligent object recognition.
- AI-driven object analytics
- Built-in cybersecurity hardening
- Privacy masking and defog functions
Deployment / Use Cases
This camera is designed for fixed surveillance applications requiring high-resolution video and robust environmental protection. Its PoE support simplifies installation by delivering power and data over a single Ethernet cable, reducing wiring complexity.
Common deployments include retail storefronts, industrial facilities, educational campuses, and government buildings where reliable outdoor monitoring is essential. The camera's compatibility with ONVIF and standard networking protocols ensures seamless integration into existing security infrastructures.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Perimeter & Outdoor Security
Ideal for monitoring building exteriors, parking lots, and perimeter fences, thanks to its weatherproof construction, wide temperature tolerance, and infrared night vision.
High-Traffic Public Areas
Suited for airports, retail spaces, and transportation hubs where 4K resolution and AI analytics help manage crowd flow and detect suspicious activities.
Physical Profile
The dome camera features a compact white housing constructed from aluminum and polycarbonate, weighing approximately 5.09 lb (2310 g). It supports bracket and junction box mounting for flexible installation on walls or ceilings.
Its form factor is designed for discreet surveillance, with a durable dome enclosure that resists vandalism and environmental elements. The camera's design facilitates easy adjustment of the varifocal lens to achieve the desired field of view during setup.
- Weight
- 5.09 lb (2310 g)
- Length
- 6.3 mm (0.25")
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 8-megapixel 4K resolution for detailed surveillance footage
- Infrared night vision ensures 24/7 monitoring capability
- 120 dB wide dynamic range handles high-contrast lighting
- AI-powered object analytics for intelligent event detection
- Rugged IK10 and IP66/IP6K9K ratings for outdoor durability
- PoE support simplifies installation and reduces cabling
- Varifocal lens with 2x optical zoom for flexible framing
- Operates in extreme temperatures from -58°F to 131°F
- Built-in cybersecurity features protect against network threats
- ONVIF compliant for easy integration with VMS systems
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02973-001 |
| Brand Name | AXIS |
| Product Series | Q35 |
| Product Model | Q3548-LVE |
| Product Name | Q3548-LVE Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Wide Dynamic Range (WDR) | Yes |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/1.2" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 104°-50° Vertical field of view: 56°-28° Vertical field of view: 18°-5° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),AVI,Motion JPEG,Zipstream,H.264,H.265,H.264M,H.264H,H.264B |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 6.3 mm (0.25") |
| Maximum Focal Length | 13 mm (0.51") |
| Lens Included | Yes |
| Minimum Aperture | f/2.9 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 2x |
| Exposure | |
| Shortest Shutter Speed | 1/67500 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Preset Point,Digital PTZ |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | HTTP,HTTPS,TCP,FTP,SFTP,ONVIF,IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP/2,DiffServ (QoS),CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),SRTP/RTSPS,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 4 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 25.50 W |
| Input Voltage | 8 V DC,28 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum,Polycarbonate |
| Mount Type | Bracket Mount,Junction Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant |
| Weight (Approximate) | 5.09 lb (2310 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Object Analytics,Built-in Cybersecurity,Noise Detection,3D Noise Reduction,2D Noise Reduction,Privacy Masking,Forensic WDR,Auto Gain Control,Wide Dynamic Range,Defog |
| Indoor/Outdoor | Outdoor |

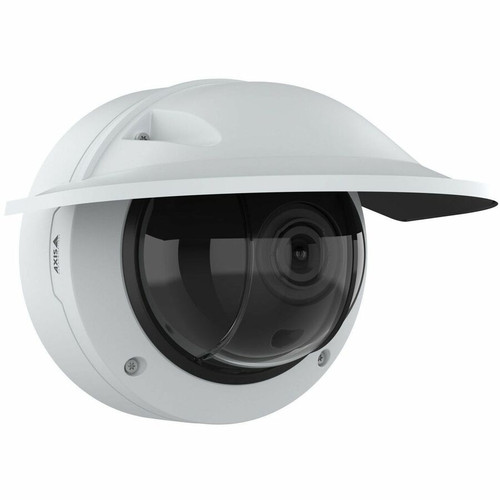

| Package Contents | Q3548-LVE Dome Camera Weathershield Installation Guide Terminal block connectors Connector Guard Cable Gaskets Owner Authentication Key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP6K9K |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does the AXIS Q3548-LVE camera support?
The camera supports up to 8-megapixel resolution at 3840 x 2160 (4K UHD), delivering high-definition video suitable for detailed surveillance and forensic review. It captures footage at a maximum frame rate of 60 fps for smooth motion rendering.
Does this camera have night vision capability?
Yes, it features infrared night vision, allowing it to monitor scenes in complete darkness. This ensures reliable 24/7 surveillance without requiring additional lighting in outdoor or low-light environments.
What are the environmental protection ratings for this camera?
The camera is rated IP66 and IP6K9K for dust and water ingress protection, and IK10 for impact resistance. This makes it suitable for harsh outdoor conditions, including heavy rain, dust, and potential vandalism.
How is the AXIS Q3548-LVE powered?
It supports both Power over Ethernet (PoE) via IEEE 802.3af/at and direct DC input from 8 to 28 volts. PoE simplifies installation by delivering power and data over a single Ethernet cable, reducing wiring needs.
What video compression formats does the camera use?
It supports H.264, H.265, Motion JPEG, and Zipstream compression formats. Zipstream technology optimizes bandwidth and storage usage by reducing video data without compromising image quality, ideal for efficient network transmission.
Can this camera be used for analytics and smart surveillance?
Yes, it includes AI-powered object analytics for intelligent event detection, such as identifying people or vehicles. Additional features like privacy masking, defog, and noise detection enhance its suitability for advanced security applications.
How much memory is installed?
It includes 4 GB of memory to support responsive multitasking and daily workloads.
