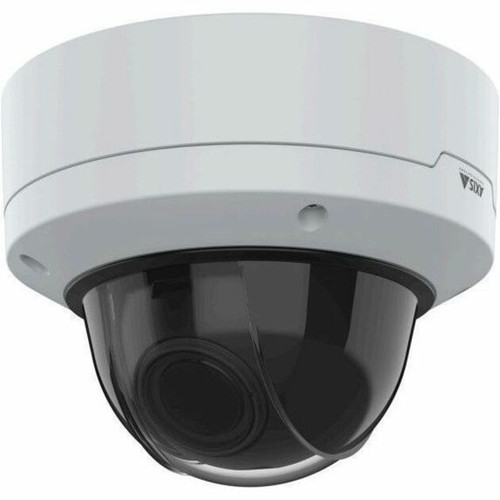

AXIS 03204-001 Q3556-LVE 4MP Indoor/Outdoor Network Dome Camera - White - Infrared - 2688 x 1512 - H. 265/H. 264 - PoE - Vandal Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Axis' edge-based analytics platform, the Q3556-LVE supports AI-powered detection for humans, faces, and vehicles directly on the camera. It includes active tampering alarm, 2D/3D digital noise reduction, and back light compensation to maintain operational integrity.
Video encoding leverages H.265, H.264, and Motion JPEG formats with Zipstream optimization for efficient bandwidth and storage use. The camera stores footage locally via microSD card (internal 4 GB memory included) and streams over Gigabit Ethernet with comprehensive protocol support including IPv6, RTSP, ONVIF, and secure TLS/HTTPS connections.
This section brings together practical product details such as HD Recording, Night Vision Type, Camera Iris, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Q3556-LVE stands out with its combination of high-performance imaging, rugged construction, and intelligent edge processing. It is designed to deliver reliable surveillance in harsh conditions while reducing backend server load through onboard analytics.
Environmental Hardening
Rated IP66/IP69 for dust and high-pressure water jet resistance, plus IK10 impact protection. Operates from -50°C to 55°C and 10-100% humidity, ensuring year-round outdoor reliability.
- IP66/IP69 sealed
- IK10 vandal resistance
- -50°C to 55°C range
Smart Detection
On-camera analytics identify people, faces, and vehicles while triggering alarms for tampering or scene changes. This reduces network traffic and storage needs by filtering irrelevant footage.
- Human/face/vehicle detection
- Active tampering alarm
- Edge-based processing
Deployment / Use Cases
This camera is ideal for perimeter security, entry/exit monitoring, parking lots, retail environments, and industrial sites where weather, vandalism, or lighting challenges exist. Its white dome housing blends discreetly into commercial and public spaces.
The dual power options (PoE or DC) simplify installation in new or retrofit scenarios. Support for bracket and junction box mounting provides flexibility for ceiling, wall, or pole installations. Integrated audio support enables two-way communication or audio event triggering.

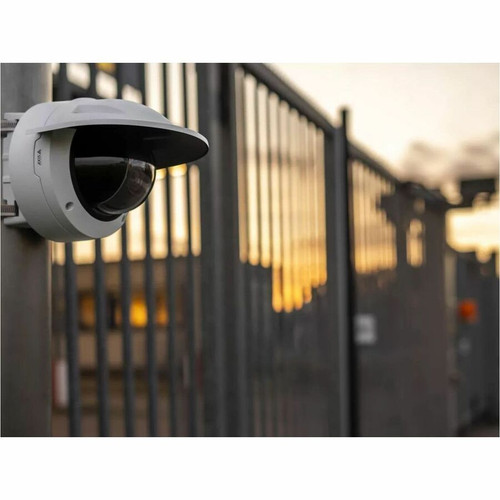

Perimeter & Outdoor Security
Deploy along fences, gates, or building exteriors where IP69 rating withstands harsh weather and IK10 protection deters physical attacks.
High-Traffic Indoor Areas
Monitor lobbies, corridors, or retail floors with 120 fps capture for clear identification and AI analytics for crowd or queue management.
Physical Profile
The dome housing measures approximately 5.2 lb (2360 g) with a low-profile design that minimizes visual intrusion. The white polycarbonate and aluminum construction resists UV degradation and corrosion. Mounting options include standard bracket and junction box kits for secure attachment to various surfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.20 lb (2360 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.20 lb (2360 g)
- Length
- 4.7 mm (0.19")
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 4-megapixel resolution (2688 x 1512) for detailed surveillance footage
- Infrared night vision with IR cut-off filter for 24/7 monitoring
- Varifocal lens (4.7-10mm) with 2.1x optical zoom for flexible framing
- H.265/H.264 video compression with Zipstream for efficient bandwidth use
- PoE (802.3af/at) and DC power options for simplified installation
- IP66/IP69 and IK10 ratings for outdoor and vandal-resistant deployment
- AI-powered analytics for human, face, and vehicle detection on the edge
- Wide dynamic range (120 dB) maintains detail in high-contrast scenes
- Operates from -50°C to 55°C for extreme environment reliability
- 5-year limited warranty backed by Axis Communications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03204-001 |
| Brand Name | AXIS |
| Product Series | Q35 |
| Product Model | Q3556-LVE |
| Product Name | Q3556-LVE Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Wide Dynamic Range (WDR) | Yes |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 101°-44° Vertical field of view: 54°-25° Vertical field of view: 90° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,Zipstream,H.265,H.264 |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 120 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.7 mm (0.19") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Minimum Aperture | f/1.2 |
| Maximum Aperture | f/1.1 |
| Optical Zoom | 2.1x |
| Exposure | |
| Shortest Shutter Speed | 1/49500 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMP (v1/v2/v3),SNMP (MIB-2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 4 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 25.50 W |
| Input Voltage | 8 V DC,28 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Polycarbonate,Aluminum |
| Mount Type | Bracket Mount,Junction Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant |
| Weight (Approximate) | 5.20 lb (2360 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,2D Digital Noise Reduction (2DNR),Wide Dynamic Range,Audio Compression,Human Detection,Face Detection,Vehicle Detection,Active Tampering Alarm |
| Indoor/Outdoor | Indoor/Outdoor |

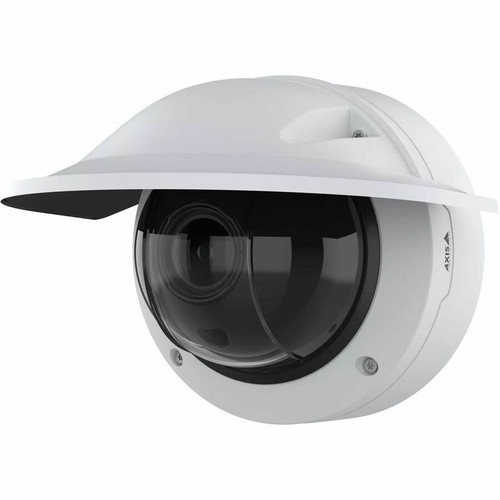

| Package Contents | Q3556-LVE Dome Camera Weathershield Installation Guide terminal Block Connectors Connector guard Cable Gaskets owner authentication key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP69 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution and frame rate does the AXIS Q3556-LVE support?
The camera captures 4-megapixel video at a maximum resolution of 2688 x 1512. It supports frame rates up to 120 frames per second, enabling clear recording of fast-moving subjects such as vehicles or people in motion.
Is this camera suitable for outdoor use in harsh weather?
Yes, the Q3556-LVE is rated IP66 and IP69 for dust and high-pressure water jet resistance, plus IK10 for impact protection. It operates in temperatures from -50°C to 55°C and humidity from 10% to 100%, making it reliable for year-round outdoor surveillance.
What night vision capabilities does it have?
Integrated infrared illumination provides night vision, and an automatic IR cut-off filter ensures accurate color reproduction during daytime. This allows the camera to maintain 24/7 monitoring in low-light or no-light conditions.
How is the camera powered and connected?
It supports Power over Ethernet (PoE 802.3af/at) for single-cable data and power delivery, or traditional 8-28V DC input. Connectivity is via Gigabit Ethernet (RJ-45) with support for IPv4/IPv6, RTSP, ONVIF, and secure protocols like HTTPS and TLS.
Does it include video analytics or smart detection features?
Yes, the camera runs AI-powered analytics directly on the device for human detection, face detection, and vehicle detection. It also includes active tampering alarm, 2D/3D digital noise reduction, and wide dynamic range to enhance surveillance accuracy.
What mounting options and installation accessories are included?
The camera supports bracket and junction box mounting for ceiling, wall, or pole installations. The package includes a weathershield, terminal block connectors, connector guard, cable gaskets, and an installation guide for straightforward setup.
How much memory is installed?
It includes 4 GB of memory to support responsive multitasking and daily workloads.
