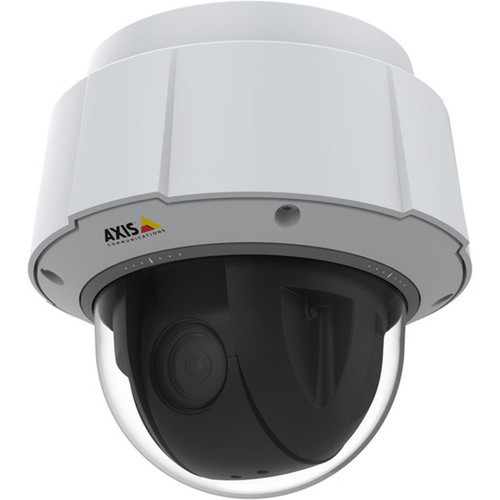

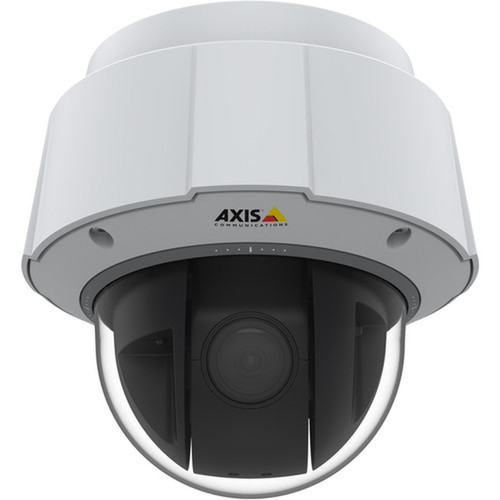

AXIS 01752-004 Q6075-E 2MP Outdoor PTZ Dome Network Camera - Full HD - 40x Optical Zoom - PoE - IP66/67 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Q6075-E utilizes a CMOS image sensor to capture 2-megapixel video at a maximum resolution of 1920 x 1080. It supports multiple video codecs including MJPEG, H.264, and H.265 for efficient bandwidth management and storage. The lens system offers a focal range from 4.3 mm to 170 mm, with an optical zoom of 40x and a field of view adjustable from 65.1° to 2.00° horizontally and 39.1° to 1.18° vertically.
Network connectivity is provided via a wired RJ-45 port with PoE support, enabling remote management and control. Local storage is available through an SD card slot, and the camera includes security features such as HTTPS encryption and password protection. Environmental specifications allow operation in temperatures from -4°F to 122°F and up to 100% humidity.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera combines high-performance imaging with rugged outdoor durability, making it a versatile choice for surveillance applications. The 40x optical zoom and PTZ capabilities allow operators to monitor large areas and zoom in on specific details without sacrificing image quality. Advanced video processing features ensure reliable performance in diverse conditions.
High-Definition Video
Delivers Full HD 1080p video at 60 fps for clear, smooth footage suitable for identification and analysis.
- 2MP resolution
- 60 fps frame rate
- H.265 compression
Flexible Installation
Supports ceiling, wall, pendant, and other mount types with PoE for simplified cabling and placement.
- Multiple mount options
- PoE power
- Weather-resistant design
Advanced Surveillance Features
Includes auto tracking, defog, and backlight compensation to enhance monitoring effectiveness in challenging environments.
- Auto tracking
- Defog function
- Enter/exit detection
Deployment / Use Cases
The AXIS Q6075-E is ideal for perimeter security, parking lots, industrial sites, and public spaces where detailed outdoor monitoring is required. Its PTZ functionality and zoom range make it suitable for both wide-area surveillance and focused observation of specific points of interest.
Common applications include monitoring entry points, tracking vehicle movement, and overseeing outdoor assets. The camera's weather resistance and temperature tolerance ensure reliable operation in seasonal climates, while PoE support facilitates integration into existing network infrastructure.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Perimeter Security
Monitor fences, gates, and boundaries with zoom capabilities to identify individuals or vehicles at a distance.
Large Area Coverage
Use PTZ and wide-angle views to oversee parking lots, courtyards, or industrial yards from a single installation point.
Physical Profile
The camera features a dome form factor with dimensions of 10.59" in height and 9.13" in diameter, finished in white for discreet outdoor blending. It weighs 8.27 pounds, providing a stable installation that resists wind and tampering. Multiple mounting options include ceiling, wall, pendant, recessed, pole, parapet, and corner mounts, offering flexibility for various architectural settings.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 10.59" (269 mm), 9.13" (232 mm), 8.27 lb (3750 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 9.13" (232 mm)
- Height
- 10.59" (269 mm)
- Weight
- 8.27 lb (3750 g)
- Length
- 4.3 mm (0.17")
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 2MP Full HD resolution at 60 fps for clear video
- 40x optical zoom with varifocal lens for flexible coverage
- PoE power simplifies installation and reduces cabling
- IP66/67 rated for outdoor weather resistance
- Supports multiple mount types for versatile placement
- Advanced features include auto tracking and defog
- CMOS sensor for efficient power use and HD video
- TAA compliant for government and regulated deployments
- 3-year limited warranty for reliability assurance
- Local storage via SD card for backup recording
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 01752-004 |
| Brand Name | AXIS |
| Product Series | Q60 |
| Product Model | Q6075-E |
| Product Name | Q6075-E PTZ Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 65.1°-2.00°, Vertical field of view: 39.1°-1.18° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | MJPEG,H.264/MPEG-4 AVC,H.265/MPEG-H HEVC,H.264 BP,H.264,H.264 HP,H.264 (MP) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.3 mm (0.17") |
| Maximum Focal Length | 170 mm (6.69") |
| Lens Included | Yes |
| Optical Zoom | 40x |
| Exposure | |
| Shortest Shutter Speed | 1/11000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Ceiling Mount,Pendant Mount,Recessed Mount,Wall Mount,Pole Mount,Parapet Mount,Corner Mount |
| Form Factor | Dome |
| Height | 10.59" (269 mm) |
| Width | 9.13" (232 mm) |
| Diameter | 9.13" (232 mm) |
| Weight (Approximate) | 8.27 lb (3750 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | SD Card Local Storage,Password Protection,PTZ,Back Light Compensation (BLC),Defog,HTTPS Encryption,Auto Tracking,Enter/Exit Detector,Day/Night |
| Indoor/Outdoor | Outdoor |
| Package Contents | Q6075-E PTZ Network Camera Axis High PoE 60 W SFP Midspan 1-Port RJ45 Push-Pull Connector (IP66) Sunshield Installation Guide Windows Decoder 1-User License |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the video resolution of the AXIS Q6075-E camera?
The camera captures 2-megapixel video at a maximum resolution of 1920 x 1080 Full HD. This provides detailed imagery suitable for identification and monitoring purposes, with support for 60 frames per second to ensure smooth motion capture.
Does this camera support Power over Ethernet (PoE)?
Yes, the Q6075-E is powered via PoE, which allows both data and power to be delivered through a single Ethernet cable. This simplifies installation by reducing the need for separate power wiring, making it ideal for remote or hard-to-reach locations.
What type of zoom does the camera have?
It features a 40x optical zoom with a varifocal lens that ranges from 4.3 mm to 170 mm in focal length. This allows operators to zoom in on distant objects without losing image quality, providing flexibility for both wide-area views and detailed close-ups.
Is the AXIS Q6075-E suitable for outdoor use?
Yes, this camera is designed for outdoor deployment with an IP66/67 ingress protection rating, making it resistant to dust and water. It operates in temperatures from -4°F to 122°F and up to 100% humidity, ensuring reliability in various weather conditions.
What mounting options are available for this dome camera?
The camera supports multiple mount types including ceiling, wall, pendant, recessed, pole, parapet, and corner mounts. This versatility allows for installation in diverse environments such as buildings, poles, or corners to achieve optimal surveillance angles.
Does the camera include local storage capabilities?
Yes, it includes an SD card slot for local storage, enabling video recording directly to a memory card. This provides a backup option or primary storage solution, complementing network-based recording systems for enhanced data security.
What processor does this product use?
AXIS 01752-004 Q6075-E 2MP Outdoor Full HD Network Dome Camera - White is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
