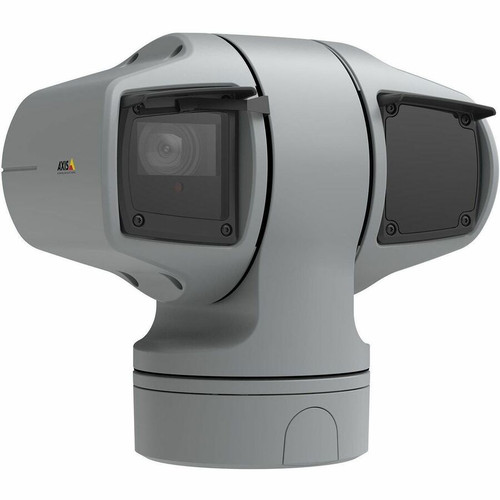

AXIS 02317-004 Q6225-LE 2MP Outdoor Network Camera - Full HD 1080p - 30x Zoom - 400m IR Night Vision - PTZ - IP66/IP68 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 1920 x 1080 pixels, supporting both H.264 and H.265 codecs for optimized bandwidth and storage. The 2-megapixel sensor delivers clear, detailed imagery suitable for identification and forensic analysis. The integrated infrared illuminators enable night vision up to 1312.34 feet (400 meters), maintaining surveillance capability around the clock.
Network connectivity is provided via a wired RJ-45 interface with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable. Remote management capabilities allow administrators to configure, monitor, and maintain the camera from a central location.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AXIS Q6225-LE stands out with its combination of long-range night vision, high optical zoom, and extreme environmental protection. These features make it an ideal choice for perimeter security and large-area monitoring where reliability and image clarity are critical.
Superior Night Vision
Infrared illumination reaches up to 400 meters, providing clear monochrome video in total darkness without additional lighting.
- 1312.34 ft range
- Infrared technology
- 24/7 operation
Industrial Durability
Rated IP66/IP68 for dust and water resistance and IK10 for impact protection, ensuring operation in rain, snow, and vandal-prone areas.
- IP66/IP68 sealed
- IK10 impact rating
- Weather-resistant construction
Advanced Imaging Features
PTZ (Pan-Tilt-Zoom) functionality, auto gain control, and a day/night mode adapt to changing lighting conditions for consistent video quality.
- PTZ control
- Auto gain adjustment
- Day/night switching
Deployment / Use Cases
This camera is designed for outdoor surveillance applications that require detailed video over long distances and in challenging environments. Its robust construction and advanced features support a wide range of security scenarios.
Typical deployments include perimeter fencing of industrial facilities, monitoring of large parking areas or storage yards, and securing remote infrastructure like utility substations or telecommunications towers. The bracket mount facilitates installation on walls, poles, or other structures, while PoE simplifies wiring in hard-to-reach locations.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Perimeter Security
Use the 30x zoom and long-range IR to monitor fence lines and entry points across expansive properties.
Critical Infrastructure
Deploy in harsh outdoor conditions at power plants, water treatment facilities, or transportation hubs where durability is essential.
Highlights
- 2-megapixel Full HD (1920 x 1080) resolution for clear video
- Long-range infrared night vision up to 1312.34 ft (400 m)
- 30x optical zoom lens with 31° to 60° field of view
- PTZ (Pan-Tilt-Zoom) functionality for flexible coverage
- IP66/IP68 and IK10 ratings for extreme weather and vandal resistance
- Power over Ethernet (PoE) for simplified installation
- H.264 and H.265 video compression for efficient storage
- Remote management capability for centralized control
- Outdoor-rated with bracket mount for versatile installation
- Integrated wiper and auto gain control for consistent performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02317-004 |
| Brand Name | AXIS |
| Product Model | Q6225-LE |
| Product Name | Q6225-LE Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 1312.34 ft (400 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Color Supported | Color |
| Field of View | 31° - 60° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,H.265 |
| Maximum Video Resolution | 1920 x 1080 |
| Lens | |
| Lens Type | Zoom |
| Optical Zoom | 30x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Bracket Mount |
| Durability | Weather Resistant,Water Resistant,Rain Resistant,Snow Resistant,Vandal Resistant |
| Miscellaneous | |
| Features | PTZ,Wiper,Auto Gain Control,Day/Night |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP68 |
User Manual
FAQ
What is the maximum video resolution of the AXIS Q6225-LE camera?
The camera supports a maximum video resolution of 1920 x 1080 pixels, which is Full HD (1080p). This resolution provides detailed imagery suitable for identification purposes and forensic review in surveillance applications.
How far does the night vision reach on this camera?
The infrared night vision has a range of up to 1312.34 feet (400 meters). This long-distance capability allows the camera to monitor large outdoor areas in complete darkness without requiring additional lighting infrastructure.
Does this camera support Power over Ethernet (PoE)?
Yes, the AXIS Q6225-LE is powered via PoE. This means both data and electrical power are delivered over a single Ethernet cable, simplifying installation and reducing wiring complexity in outdoor or hard-to-reach locations.
What environmental protections does the camera have?
The camera is rated IP66 and IP68 for dust and water resistance, making it dust-tight and capable of withstanding prolonged immersion. It also has an IK10 impact protection rating for vandal resistance and is built to endure weather, rain, snow, and other harsh outdoor conditions.
What type of lens and zoom capabilities does it feature?
It includes a zoom lens with 30x optical zoom, allowing you to closely inspect distant areas without losing image quality. The field of view is adjustable from 31° to 60°, providing flexibility in covering wide or narrow surveillance zones.
Can this camera be remotely managed?
Yes, the AXIS Q6225-LE supports remote management. Administrators can configure settings, view live feeds, and perform maintenance tasks from a central network location, enhancing operational efficiency for multi-camera deployments.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
