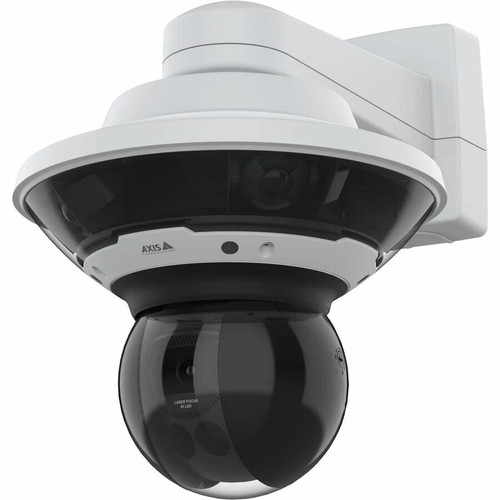

AXIS 02943-001 Q6300-E 5MP Indoor/Outdoor Network Camera - Color Dome - White - Infrared - 4-Sensor Panoramic - PoE - IP66/IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera delivers high-definition surveillance with a maximum resolution of 2592 x 1944 at 30 frames per second, ensuring crisp, real-time video. The fixed lens with a 3.7mm focal length and f/2.0 aperture is optimized for panoramic coverage, while the integrated infrared cut-off filter and infrared illumination enable clear monochrome imaging in low-light conditions. Audio support allows for integrated sound monitoring alongside video.
Network connectivity is handled via a Gigabit Ethernet port with support for a comprehensive suite of protocols including IPv4/IPv6, HTTP/HTTPS, RTSP, SNMP, and ONVIF for seamless integration into existing security systems. The camera includes 8 GB of internal memory for local storage backup and supports additional memory card storage.
This section brings together practical product details such as HD Recording, Night Vision Type, Camera Iris, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Q6300-E stands out with its multi-sensor panoramic design, providing a single-camera solution for wide-area monitoring that traditionally required multiple units. This reduces installation complexity, cabling, and overall system cost while delivering uninterrupted 360-degree coverage.
AI-Powered Analytics
Built-in intelligence enables automated detection of people, faces, and vehicles, reducing manual monitoring effort and triggering precise alerts for relevant events.
- Human Detection
- Face Detection
- Vehicle Detection
- Active Tampering Alarm
Environmental Durability
Rated IP66 for dust and water resistance and IK10 for impact protection, this camera is built to withstand harsh outdoor conditions and potential vandalism.
- IP66 Rated
- IK10 Rated
- -40°F to 122°F Operating Range
Efficient Video Management
Support for H.265/HEVC and Zipstream technology significantly reduces bandwidth and storage requirements without compromising video quality, optimizing network and storage resources.
- H.265/HEVC Support
- Zipstream Technology
- Multiple Video Formats
Deployment / Use Cases
Ideal for environments requiring extensive visual coverage without blind spots, the Q6300-E is perfectly suited for retail stores, warehouses, parking lots, transportation hubs, and corporate campuses. Its panoramic view makes it excellent for monitoring large open areas, aisles, entrances, and perimeter fencing where a traditional fixed or PTZ camera would leave gaps.
The indoor/outdoor rating and robust construction allow deployment in challenging locations such as industrial facilities, loading docks, and building exteriors. Integration with video management systems (VMS) and network video recorders (NVRs) is straightforward thanks to standard protocols, making it a flexible component in both new and upgraded security installations.
Large Area Surveillance
Monitor expansive indoor spaces like warehouses or outdoor areas like parking lots with a single camera, reducing hardware and installation costs.
Critical Infrastructure Protection
Deploy in harsh environments where durability and reliable 24/7 operation are essential, leveraging its wide temperature range and high ingress protection.
Physical Profile

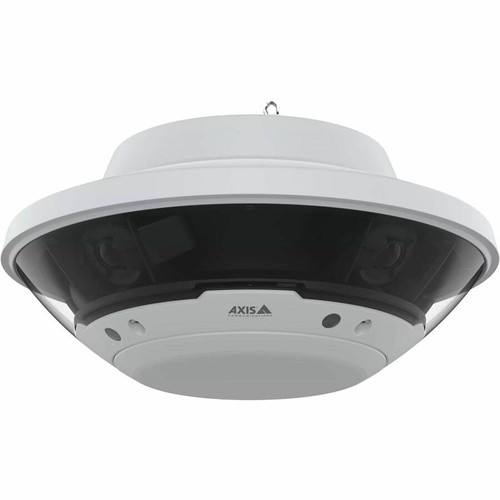

Housed in a discreet white dome form factor, the camera presents a low-profile appearance suitable for both public and private settings. The dome design helps conceal the camera's viewing direction, adding a deterrent effect. Weighing 8.82 pounds (4000 grams), it is a substantial unit designed for secure mounting on ceilings or walls, with the included adapter bracket facilitating flexible installation angles.
- Weight
- 8.82 lb (4000 g)
- Length
- 3.7 mm (0.15")
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include Q6300-E Panoramic Camera Adapter bracket installation guide Owner authentication key, Q6300-E Panoramic Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5-megapixel resolution for detailed HD surveillance video.
- Four-sensor panoramic design provides a complete 360° horizontal field of view.
- Infrared night vision ensures reliable monitoring in low-light and no-light conditions.
- IP66 and IK10 ratings for dust, water, and impact resistance in indoor/outdoor use.
- Power over Ethernet (PoE) simplifies installation by delivering power and data over a single cable.
- AI-powered analytics for automated human, face, and vehicle detection.
- Supports efficient H.265/HEVC and Zipstream video encoding to save bandwidth and storage.
- Wide operating temperature range from -40°F to 122°F (-40°C to 50°C).
- Gigabit Ethernet connectivity with extensive protocol support for easy network integration.
- Includes 8 GB internal memory and supports memory card storage for local recording.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02943-001 |
| Brand Name | AXIS |
| Product Series | Q63 |
| Product Model | Q6300-E |
| Product Name | Q6300-E Panoramic Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision Type | Infrared |
| Camera Iris | Fixed |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 360°, 108.4° for each sensor Vertical field of view: 84° |
| Effective Camera Resolution | 5 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,Zipstream,H.265,H.264 |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.7 mm (0.15") |
| Lens Included | Yes |
| Lens Mount Type | M14 |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMP (v1/v2/v3),SNMP (MIB-2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 8 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 103.40 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Polycarbonate,Aluminum |
| Form Factor | Dome |
| Weight (Approximate) | 8.82 lb (4000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,2D Digital Noise Reduction (2DNR),Wide Dynamic Range,Audio Compression,Human Detection,Face Detection,Vehicle Detection,Active Tampering Alarm |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | Q6300-E Panoramic Camera Adapter bracket installation guide Owner authentication key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the field of view of the AXIS Q6300-E camera?
The camera offers a panoramic 360-degree horizontal field of view, achieved through four separate sensors, each covering 108.4 degrees. The vertical field of view is 84 degrees, providing extensive coverage ideal for monitoring large areas like retail floors, warehouses, or parking lots with a single unit.
Does this camera support night vision?
Yes, it features infrared night vision capability. It includes an infrared cut-off filter and integrated IR illumination, allowing it to capture clear monochrome video in complete darkness or low-light conditions, ensuring 24/7 surveillance effectiveness.
What video resolutions and frame rates does it support?
The camera supports a maximum video resolution of 2592 x 1944 (5 megapixels) at up to 30 frames per second. This ensures high-definition, real-time video suitable for detailed identification and monitoring, with support for various formats including H.264, H.265, and Motion JPEG.
How is the camera powered?
It is powered via Power over Ethernet (PoE), which delivers both electrical power and network data over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera location. The maximum power consumption is 103.40 watts.
What are the environmental protection ratings?
The camera is rated IP66 for ingress protection, meaning it is dust-tight and protected against powerful water jets, making it suitable for outdoor use. It also has an IK10 impact protection rating, indicating high resistance to physical impacts and vandalism, ensuring durability in public or harsh environments.
What AI features does this camera include?
It includes AI-powered analytics for automated detection, specifically human detection, face detection, and vehicle detection. These features enable the camera to intelligently identify relevant objects and events, reducing false alarms and allowing for more efficient monitoring and alerting within security systems.
How much memory is installed?
It includes 8 GB of memory to support responsive multitasking and daily workloads.
