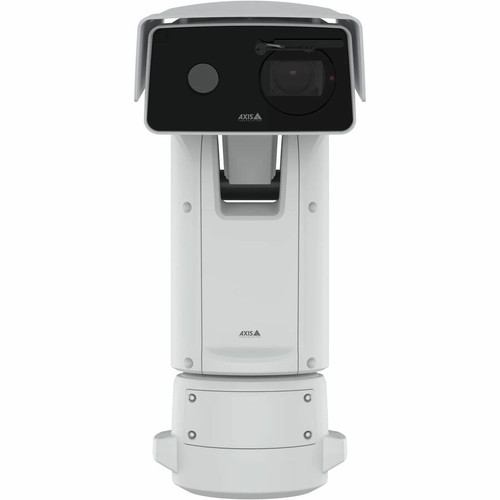

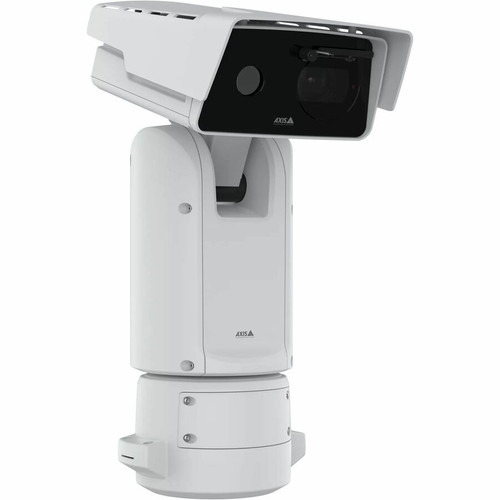

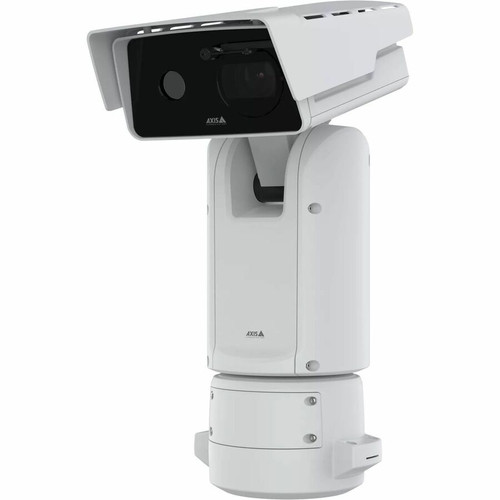

AXIS 03052-001 Q8752-E Mk II Outdoor Bispectral PTZ Network Camera - White - Full HD 1080p & 800 x 600 Thermal - 32x Optical Zoom - IP66/IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This bispectral camera integrates two independent sensors: a 1/2.8" CMOS sensor for Full HD color video and an uncooled microbolometer for 800x600 thermal imaging. The thermal channel operates at a 35 mm equivalent focal length with a 17° horizontal by 12.8° vertical field of view, complementing the optical sensor's adjustable field of view from 58.5° to 2.4° horizontally and 35° to 1.3° vertically.
Video encoding supports H.264, H.265, Motion JPEG, and Axis Zipstream profiles, including H.264H, H.264M, H.265 Main Profile, and H.264B variants. The camera's exposure control spans shutter speeds from 1/66500 second to 2 seconds, with an auto iris and f/1.4 to f/4 aperture range adapting to varying light conditions. Internal storage includes 2 GB of memory for local recording via removable media.
Key Product Advantages
Dual-Spectrum Monitoring
Simultaneous Full HD visual and 800x600 thermal imaging enables reliable detection in complete darkness, fog, smoke, or challenging lighting where conventional cameras may fail.
- Infrared night vision with IR cut-off filter
- Thermal detection independent of visible light
- 120 dB wide dynamic range for high-contrast scenes
Rugged Outdoor Design
IP66-rated against dust and water ingress, IK10-rated for impact resistance, and operable from -40°F to 140°F ensures continuous performance in harsh environmental conditions.
- Aluminum construction for durability
- Weather-resistant sealing
- Extended temperature and humidity tolerance
Advanced Analytics & Management
Integrated features include motion detection, vehicle detection, human detection, privacy masking, and HTTPS encryption with password protection for secure remote access and compliance.
- ONVIF profile support for interoperability
- Gigabit Ethernet with comprehensive protocol stack
- Remote management via web interface or VMS
Deployment / Use Cases
The AXIS Q8752-E Mk II is suited for perimeter security, critical infrastructure monitoring, transportation hubs, and industrial facilities where 24/7 surveillance under variable conditions is essential. Its bispectral capability allows operators to correlate thermal alerts with visual verification, reducing false alarms and enhancing situational awareness during low-visibility incidents.
Typical installations include fence lines, gatehouses, parking lots, ports, and remote sites requiring vandal-resistant hardware. The camera's preset PTZ functionality supports automated tours between high-value zones, while its Gigabit Ethernet connectivity ensures stable integration into existing IP video networks. Power over Ethernet (PoE) compatibility simplifies deployment by combining data and power over a single cable where supported by midspans or switches.
Physical Profile
Housed in a white aluminum enclosure, the camera weighs approximately 32.85 lb (14.9 kg) and is designed for fixed mounting on poles, walls, or structures. Its compact form factor accommodates the dual-sensor assembly and motorized PTZ mechanism while maintaining a low profile. The integrated lens system includes fixed/varifocal optics with manual or remote adjustment capabilities for precise field-of-view configuration.
- Weight
- 32.85 lb (14900 g)
- Length
- 4.3 mm (0.17")
Highlights
- Bispectral PTZ camera with Full HD 1080p and 800x600 thermal imaging
- 32x optical zoom lens with 4.3 mm to 137.6 mm focal range
- IP66 and IK10 ratings for dust, water, and impact resistance
- Infrared night vision with auto iris and IR cut-off filter
- Supports H.264, H.265, Motion JPEG, and Axis Zipstream encoding
- Wide dynamic range of 120 dB for high-contrast scenes
- Gigabit Ethernet connectivity with comprehensive network protocols
- Operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Integrated analytics: motion, vehicle, and human detection
- TAA compliant for government and public sector procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03052-001 |
| Brand Name | AXIS |
| Product Model | Q8752-E Mk II |
| Product Name | Q8752-E Mk II Bispectral PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | Auto |
| Wide Dynamic Range Detail | 120 dB |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Polish,Portuguese,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Color Supported | Color |
| Field of View | Horizontal field of view: 58.5°-2.4°, Vertical field of view: 35°-1.3°, Thermal 35 mm: Horizontal field of view: 17°, Vertical field of view: 12.8° |
| Number of Sensors | 2 |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG,Zipstream,H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,H.264B (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Thermal Video Resolution | 800 x 600 |
| Maximum Frame Rate | 8 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed/Varifocal |
| Minimum Focal Length | 4.3 mm (0.17") |
| Maximum Focal Length | 137.6 mm (5.42") |
| Lens Included | Yes |
| Minimum Aperture | f/4 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 32x |
| Maximum Thermal Focal Length | 1.38" (35 mm) |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTCP,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT,MQTT v3.1.1,Syslog,ZeroConf,IEEE 802.1AR,IEEE 802.1X (EAP-TLS),ONVIF,mDNS (Bonjour) |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 2 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 185 W |
| Input Voltage | 52 V DC,58 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum |
| Durability | Weather Resistant |
| Weight (Approximate) | 32.85 lb (14900 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Day/Night,Ingress Protection,Motion Detection,Vehicle Detection,Human Detection,HTTPS Encryption,Password Protection,Privacy Masking,Wide Dynamic Range,White Balance,SD Card Local Storage |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
User Manual
FAQ
What is the difference between the visual and thermal imaging capabilities?
The visual channel uses a 1/2.8" CMOS sensor to capture Full HD 1080p color video, while the thermal channel employs an uncooled microbolometer to detect heat signatures at 800x600 resolution. This dual-spectrum approach allows the camera to provide detailed visual identification alongside thermal detection that works independently of visible light, making it effective in total darkness or obscured conditions.
How does the 32x optical zoom perform in practical surveillance scenarios?
The 32x optical zoom provides a focal length range from 4.3 mm (wide-angle) to 137.6 mm (telephoto), enabling operators to monitor broad areas or zoom in on specific details without losing image quality. This is particularly useful for identifying license plates, facial features, or other critical details at distance, and the preset PTZ modes allow quick repositioning to predefined points of interest.
What environmental protections does the IP66 and IK10 rating provide?
IP66 indicates complete protection against dust ingress and powerful water jets from any direction, making the camera suitable for outdoor use in rain or high-pressure cleaning. IK10 denotes resistance to mechanical impacts of up to 20 joules, equivalent to a 5 kg mass dropped from 40 cm, providing vandal resistance for public or high-risk installations.
Can this camera operate in extreme temperatures?
Yes, the AXIS Q8752-E Mk II is designed for continuous operation in temperatures from -40°F to 140°F (-40°C to 60°C), with storage tolerance from -40°F to 149°F (-40°C to 65°C). It also handles humidity from 10% to 100% condensing and 5% to 95% non-condensing, ensuring reliability in diverse climates from arctic cold to desert heat.
What video compression formats are supported for bandwidth efficiency?
The camera supports H.264, H.265, Motion JPEG, and Axis Zipstream, including specific profiles like H.264H, H.264M, H.265 Main Profile, and H.264B. H.265 and Zipstream technologies significantly reduce bandwidth and storage requirements while maintaining video quality, making it ideal for networks with limited capacity or long-term recording needs.
How is the camera powered and what are its connectivity options?
It is powered by 52-58 V DC input with a maximum consumption of 185 watts, and it includes a Gigabit Ethernet RJ-45 port for network connectivity. While not explicitly listed as PoE, it can be used with compatible PoE midspans or switches. The camera supports a wide range of protocols including IPv4/IPv6, ONVIF, HTTPS, and SNMP for seamless integration into existing security and management systems.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
