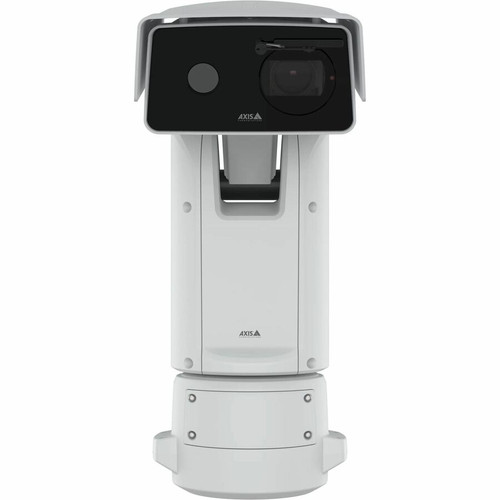

AXIS 03053-001 Q8752-E Mk II Outdoor Bispectral PTZ Network Camera - Full HD 1080p - 32x Optical Zoom - Infrared & Thermal Night Vision - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Q8752-E Mk II leverages a 1/2.8" CMOS image sensor and an uncooled microbolometer thermal sensor to capture simultaneous visual and thermal video streams. It records at up to 30 frames per second in Full HD 1920x1080 resolution for visual imaging and 640x480 for thermal imaging. The camera's wide dynamic range of 120 dB ensures clear footage in high-contrast lighting, while its auto iris and electronic image stabilization contribute to consistent image quality.
Network connectivity is handled through a Gigabit Ethernet port with support for IPv4, IPv6, and a broad range of protocols including ONVIF, RTSP, and SNMP for seamless integration into existing security systems. The camera includes 2 GB of internal memory and supports external storage via memory card. Power is supplied via 52-58 V DC, with a maximum consumption of 185 watts under full operational load.
Key Product Advantages
This camera stands out with its bispectral imaging capability, combining visual and thermal sensors in a single unit to enhance detection accuracy in challenging environments. The 32x optical zoom provides exceptional detail capture at long distances, while the rugged IP66/IK10-rated housing ensures durability against harsh weather and physical impacts.
Advanced Night Vision
Infrared and thermal night vision enable reliable surveillance in total darkness, with an IR cut-off filter for accurate color reproduction during daytime operation.
- Infrared illumination
- Uncooled microbolometer thermal sensor
- Day/night functionality
Intelligent Video Features
Built-in analytics support motion detection, vehicle detection, and human detection, reducing false alarms and focusing attention on relevant events.
- Motion Detection
- Vehicle Detection
- Human Detection
Secure Remote Management
HTTPS encryption, password protection, and privacy masking ensure secure access and data integrity, with remote management capabilities for easy maintenance.
- HTTPS Encryption
- Password Protection
- Privacy Masking
Deployment / Use Cases
The Q8752-E Mk II is designed for perimeter security, critical infrastructure monitoring, and large-scale outdoor surveillance where both visual detail and thermal detection are essential. Its PTZ functionality with preset points allows automated scanning of predefined areas, making it ideal for monitoring fences, gates, parking lots, and industrial facilities.
In transportation hubs, ports, or energy plants, the camera's thermal imaging can detect heat signatures from vehicles or equipment, while its visual stream provides identifiable footage. The weather-resistant construction and wide operating temperature range enable deployment in extreme climates, from arctic cold to desert heat, without compromising performance.
Perimeter Security
Monitor fences, gates, and boundaries with dual-sensor detection to identify intrusions day or night, leveraging the 32x zoom for detailed observation.
Critical Infrastructure
Secure power plants, water treatment facilities, and communication towers with thermal imaging for equipment monitoring and visual verification of activities.
Physical Profile
The camera features a robust white exterior made from aluminum, glass, and germanium, weighing approximately 32.85 lbs (14.9 kg) for stable mounting. Its design supports preset PTZ movements, with a varifocal lens system that adjusts from 4.3 mm to 137.6 mm focal length. The housing is rated IP66 for dust and water resistance and IK10 for impact protection, ensuring longevity in exposed outdoor locations.
- Weight
- 32.85 lb (14900 g)
- Length
- 4.3 mm (0.17")
What's in the Box
The package includes the Q8752-E Mk II Bispectral PTZ Camera, an installation guide, and a connector kit for straightforward setup and integration.
Package contents include Q8752-E Mk II Bispectral PTZ Camera Installation Guide Connector kit, Q8752-E Mk II Bispectral PTZ Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Bispectral imaging with visual and thermal sensors for enhanced detection
- Full HD 1080p resolution at 30 fps for clear video surveillance
- 32x optical zoom with varifocal lens for detailed long-range observation
- Infrared and thermal night vision for 24/7 operation in darkness
- IP66 and IK10 ratings for weather and vandal resistance
- Gigabit Ethernet with support for ONVIF, H.265, and Zipstream
- Built-in analytics including motion, vehicle, and human detection
- Wide operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Secure features: HTTPS encryption, password protection, privacy masking
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03053-001 |
| Brand Name | AXIS |
| Product Model | Q8752-E Mk II |
| Product Name | Q8752-E Mk II Bispectral PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Camera Iris | Auto |
| Wide Dynamic Range Detail | 120 dB |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Polish,Portuguese,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Color Supported | Color |
| Field of View | Visual: Horizontal field of view: 58.5°-2.4°Vertical field of view: 35°-1.3, Thermal 35 mm: Horizontal field of view: 17°Vertical field of view: 12.8° Vertical field of view: 13.5°-4.5° |
| Number of Sensors | 2 |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG,Zipstream,H.265 (MPEG-H Part 2/HEVC) Main Profile,H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264B (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Thermal Video Resolution | 640 x 480 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed/Varifocal |
| Minimum Focal Length | 4.3 mm (0.17") |
| Maximum Focal Length | 137.6 mm (5.42") |
| Lens Included | Yes |
| Minimum Aperture | f/4 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 32x |
| Maximum Aperture (Lens 2) | f/1.2 |
| Maximum Thermal Focal Length | 1.38" (35 mm) |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| PTZ Modes | Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTCP,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT,MQTT v3.1.1,Syslog,ZeroConf,IEEE 802.1AR,IEEE 802.1X (EAP-TLS),ONVIF,mDNS (Bonjour) |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 2 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 185 W |
| Input Voltage | 52 V DC,58 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum,Glass,Germanium |
| Durability | Weather Resistant,Vandal Resistant |
| Weight (Approximate) | 32.85 lb (14900 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Day/Night,Ingress Protection,Motion Detection,Vehicle Detection,Human Detection,HTTPS Encryption,Password Protection,Privacy Masking,Wide Dynamic Range,White Balance,SD Card Local Storage,Electronic Image Stabilization |
| Indoor/Outdoor | Outdoor |
| Package Contents | Q8752-E Mk II Bispectral PTZ Camera Installation Guide Connector kit |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum video resolution of the AXIS Q8752-E Mk II camera?
The camera supports a maximum video resolution of 1920 x 1080 (Full HD) for its visual sensor, providing clear and detailed footage suitable for identification and monitoring purposes in surveillance applications.
Does this camera include night vision capabilities?
Yes, the Q8752-E Mk II features both infrared and thermal night vision. The infrared illumination supports low-light visibility, while the uncooled microbolometer thermal sensor detects heat signatures, enabling reliable surveillance in complete darkness.
What is the optical zoom range of this PTZ camera?
This camera offers a 32x optical zoom, with a focal length range from 4.3 mm (wide-angle) to 137.6 mm (telephoto). This allows for detailed close-up views of distant subjects without sacrificing image quality.
Is the AXIS Q8752-E Mk II suitable for outdoor installation?
Absolutely. The camera is designed for outdoor use with an IP66 rating for dust and water resistance and an IK10 impact protection rating. It operates in temperatures from -40°F to 140°F (-40°C to 60°C), making it durable in harsh environments.
What video formats does this network camera support?
It supports H.264, H.265, Motion JPEG, and Zipstream video formats. H.265 and Zipstream help reduce bandwidth and storage usage while maintaining high video quality, which is beneficial for large-scale surveillance systems.
What is included in the package with the camera?
The package includes the Q8752-E Mk II Bispectral PTZ Camera, an installation guide, and a connector kit. This provides all necessary components for basic setup and integration into your surveillance network.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
