AXIS 02712-001 TP1602-E Mounting Box for Network Camera - IK10 Impact & IP66 Outdoor Rated - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TP1602-E mounting box delivers robust physical protection through its IK10 impact rating, which certifies protection against 20 joules of impact energy equivalent to 5 kg mass dropped from 400 mm. Combined with the IP66 rating, this ensures complete protection against dust ingress and powerful water jets from any direction, making it suitable for exposed outdoor locations.
The enclosure supports standard network camera mounting interfaces and includes provisions for conduit connections, allowing for secure cable management and protection. The white finish provides a neutral appearance that blends with most architectural surfaces while offering UV resistance for long-term outdoor durability.
This section brings together practical product details such as Device Supported, Features, Ingress Protection (IP) Rating, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TP1602-E mounting box offers distinct advantages for surveillance system installers seeking reliable outdoor protection for network camera installations.
Dual Protection Certification
IK10 impact resistance protects against vandalism and accidental impacts, while IP66 weatherproofing guards against dust and water ingress in all outdoor conditions.
- 20 joule impact protection
- Complete dust tightness
- Powerful water jet resistance
Camera-Specific Compatibility
Designed specifically for Axis network cameras including the P14 and Q19 series, ensuring proper fitment and mounting alignment for optimal camera performance.
- Direct P14 series compatibility
- Q19 series support
- Secure mounting interface

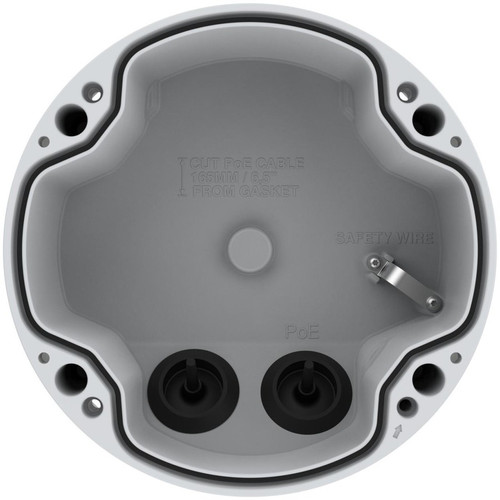

Integrated Conduit Management
Built-in conduit entry points allow for protected cable routing from the camera to network infrastructure, maintaining signal integrity and installation cleanliness.
- Organized cable management
- Weather-sealed conduit ports
- Professional installation appearance
Deployment / Use Cases
The TP1602-E mounting box serves critical roles in outdoor surveillance deployments where environmental protection and secure mounting are essential for system reliability.
Ideal for perimeter security applications, the enclosure protects camera connections at building exteriors, fence lines, and gate entries where cameras face exposure to weather and potential physical contact. The conduit-ready design supports both surface-mounted and partially concealed installations, allowing installers to maintain clean cable runs while meeting electrical code requirements for outdoor wiring protection.
Commercial Building Security
Protect network cameras mounted on building facades, parking structures, and loading docks where cameras face weather exposure and potential impact from equipment or vehicles.
Perimeter & Gate Surveillance
Secure camera installations at fence lines, gate entries, and property boundaries where cameras require both weather protection and impact resistance against accidental or intentional contact.
Highlights
- IK10 impact resistance protects against vandalism and accidental damage
- IP66 weatherproof rating ensures operation in harsh outdoor environments
- Specifically compatible with Axis P14 and Q19 series network cameras
- Integrated conduit entry points for protected cable management
- White UV-resistant finish blends with architectural surfaces
- Designed for outdoor surveillance installations
- Supports both camera mounting and conduit connections
- Maintains network integrity in exposed locations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02712-001 |
| Brand Name | AXIS |
| Product Model | TP1602-E |
| Product Name | TP1602-E Mounting Box |
| Product Type | Mounting Box |
| Product Information | |
| Device Supported | Network Camera,Conduit |
| Features | IK10 |
| Ingress Protection (IP) Rating | IP66 |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Miscellaneous | |
| Application/Usage | Outdoor |
| Compatibility | Axis Network Cameras: P1455-LE P1455-LE-3 P1465-LE P1467-LE P1468-LE Q1951-E Q1952-E |
FAQ
What cameras are compatible with the TP1602-E mounting box?
The TP1602-E mounting box is specifically designed for Axis network cameras including the P1455-LE, P1455-LE-3, P1465-LE, P1467-LE, P1468-LE, Q1951-E, and Q1952-E models. These cameras feature mounting interfaces that align with the enclosure's internal mounting points, ensuring secure installation and proper weather sealing around the camera body.
What does the IK10 impact rating mean for this mounting box?
The IK10 impact rating indicates the mounting box provides protection against impacts of 20 joules, equivalent to a 5 kg mass dropped from 400 mm height. This level of impact resistance protects the enclosed camera and connections from vandalism, accidental bumps from equipment, or falling debris in outdoor environments, making it suitable for exposed surveillance locations.
How does the IP66 rating protect network cameras in outdoor installations?
The IP66 rating ensures complete protection against dust ingress and powerful water jets from any direction. This means the mounting box maintains a dust-tight seal while withstanding heavy rain, hose-directed water, or other water exposure common in outdoor environments. The protection allows network cameras to operate reliably in exposed locations without moisture or dust compromising camera electronics or connections.
Can this mounting box accommodate conduit connections?
Yes, the TP1602-E mounting box includes provisions for conduit connections, allowing installers to run protected cabling from the camera to network infrastructure. The conduit-ready design supports standard electrical conduit fittings, enabling professional cable management that meets electrical code requirements for outdoor wiring while maintaining weather protection at connection points.
Is this mounting box suitable for direct sunlight exposure?
The white finish provides UV resistance for long-term outdoor durability in direct sunlight. The polycarbonate or ABS construction maintains structural integrity and appearance despite continuous UV exposure, preventing yellowing or degradation that could compromise the enclosure's protective capabilities or aesthetic integration with building surfaces.
What types of surveillance installations benefit most from this mounting box?
Perimeter security, building exterior monitoring, and gate surveillance installations benefit most from the TP1602-E mounting box. These applications typically expose cameras to weather elements and potential physical contact, requiring both IP66 weatherproofing and IK10 impact resistance. The enclosure's conduit support also facilitates clean installations where cables must be protected according to electrical codes.
