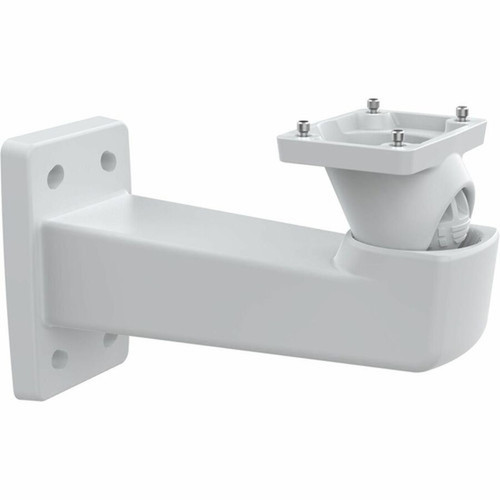

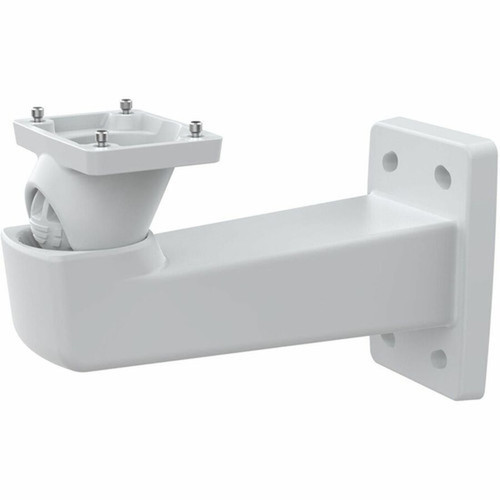

AXIS 02567-001 TQ1003-E Wall Mount for Camera - Housing - Back Box - White - 15. 43 lb - 7000 g Load Capacity - PVC & Chromate Aluminum
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount features precise adjustment capabilities, including ±5° rotation and 10° tilt, allowing for fine-tuning of camera angles after installation. The fixed mount profile ensures stability, while integrated cable management keeps wiring organized and protected.

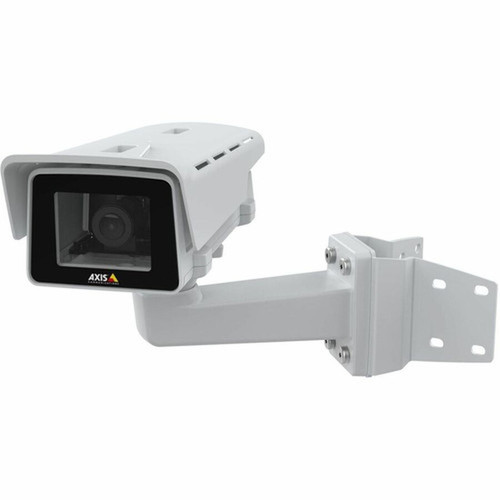

With an IK10 impact resistance rating, it withstands significant mechanical stress, enhancing the durability of your surveillance setup. The mount supports various Axis camera models, including the M1135-E MK II, M1137-E MK II, P1375-E, P1377-LE, P1378-LE, Q1615-LE Mk III, and Q1656 series.
This section brings together practical product details such as Device Supported, Maximum Load Capacity, Features, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TQ1003-E wall mount delivers reliable performance through its combination of high load capacity, durable materials, and flexible adjustment options. It simplifies installation and maintenance while ensuring long-term stability for critical surveillance equipment.
High Load Capacity
Supports up to 15.43 lb (7000 g), accommodating heavier cameras and enclosures without compromise.
- Ideal for advanced camera models
- Reduces risk of sagging or failure
Robust Construction
Made from PVC and chromate aluminum, offering corrosion resistance and impact protection.
- Suitable for harsh environments
- Extends equipment lifespan
Flexible Adjustment
Provides ±5° rotation and 10° tilt for precise camera positioning after mounting.
- Enhances field of view optimization
- Simplifies alignment during setup
Deployment / Use Cases
This mount is designed for wall-mounted surveillance deployments in both commercial and residential settings. Its indoor/outdoor suitability makes it versatile for applications ranging from retail storefronts to perimeter security.
Common use cases include mounting Axis cameras in lobbies, parking lots, warehouses, and entryways where reliable installation and environmental durability are essential. The cable management feature is particularly useful in organized installations where neat wiring supports maintenance and aesthetics.
This section brings together practical product details such as Device Supported, Maximum Load Capacity, Features, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Security
Deploy in offices, retail spaces, or industrial sites for continuous monitoring with stable mounting.
- Handles frequent adjustments
- Withstands high-traffic areas
Outdoor Surveillance
Use in weather-exposed locations thanks to robust materials and IK10 rating.
- Resists moisture and impacts
- Maintains performance in varied climates
Physical Profile
The mount has a compact footprint with dimensions of 5.50" height, 3.10" width, and 8.30" depth, allowing it to fit discreetly in tight spaces. Its lightweight design at 1.53 lb simplifies handling during installation while maintaining structural integrity. The white color and clean lines ensure it complements modern building aesthetics without drawing unnecessary attention.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.50" (139.70 mm), 3.10" (78.74 mm), 8.30" (210.82 mm), 1.53 lb (695 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.10" (78.74 mm)
- Depth
- 8.30" (210.82 mm)
- Height
- 5.50" (139.70 mm)
- Weight
- 1.53 lb (695 g)
Highlights
- Supports cameras, housings, and back boxes with a 15.43 lb (7000 g) load capacity
- Constructed from durable PVC and chromate aluminum for long-term reliability
- Features ±5° rotation and 10° tilt for precise camera angle adjustment
- IK10 impact resistance rating protects against mechanical stress
- Integrated cable management keeps wiring organized and secure
- Suitable for both indoor and outdoor wall-mounted applications
- Compatible with a wide range of Axis camera models including M1135-E MK II and Q1656 series
- White finish blends with modern architectural designs
- Compact dimensions (5.50" H x 3.10" W x 8.30" D) for discreet installation
- Fixed mount profile ensures stable and vibration-resistant mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02567-001 |
| Brand Name | AXIS |
| Product Model | TQ1003-E |
| Product Name | TQ1003-E Wall Mount |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | Camera,Housing,Back Box |
| Maximum Load Capacity | 15.43 lb (7000 g) |
| Features | Robust,Rotate,±5° Rotation,Flexible,IK10,Pan Adjustment,10° Tilt,Cable Management |
| Mount Profile | Fixed |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Polyvinyl Chloride (PVC),Chromate Aluminum |
| Form Factor | Wall Mountable |
| Height | 5.50" (139.70 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 8.30" (210.82 mm) |
| Weight (Approximate) | 1.53 lb (695 g) |
| Miscellaneous | |
| Application/Usage | Wall,Indoor/Outdoor,Cable Management |
| Compatibility | Axis Cameras M1135-E MK II M1137-E MK II P1375-E P1377-LE P1378-LE Q1615-LE Mk III Q1656-BE Q1656-BLE Q1656-DLE Q1656-LE |
User Manual
FAQ
What is the maximum weight this wall mount can support?
The AXIS TQ1003-E wall mount supports a maximum load capacity of 15.43 lb (7000 g). This capacity accommodates various Axis cameras, housings, and back boxes, ensuring stable installation even for heavier surveillance equipment.
Is this mount suitable for outdoor use?
Yes, this mount is designed for both indoor and outdoor applications. Its construction from PVC and chromate aluminum provides corrosion resistance, and the IK10 rating offers protection against environmental impacts, making it durable in varied weather conditions.
What adjustment capabilities does this mount offer?
This mount provides ±5° rotation and 10° tilt adjustment, allowing fine-tuning of camera angles after installation. These adjustments help optimize the field of view and ensure precise alignment for effective surveillance coverage.
Which Axis camera models are compatible with this mount?
The mount is compatible with multiple Axis camera models, including the M1135-E MK II, M1137-E MK II, P1375-E, P1377-LE, P1378-LE, Q1615-LE Mk III, and the Q1656 series (Q1656-BE, Q1656-BLE, Q1656-DLE, Q1656-LE).
What materials is the mount made from?
The mount is constructed from Polyvinyl Chloride (PVC) and chromate aluminum. These materials offer a balance of durability, lightweight design, and resistance to corrosion, ensuring reliable performance in surveillance installations.
Does this mount include cable management features?
Yes, the AXIS TQ1003-E includes integrated cable management. This feature helps organize and secure wiring, reducing clutter and protecting cables from damage, which simplifies maintenance and enhances installation aesthetics.
What connectivity or interface options are available?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
