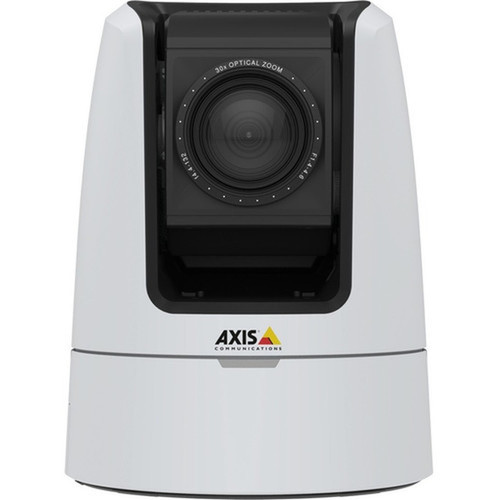

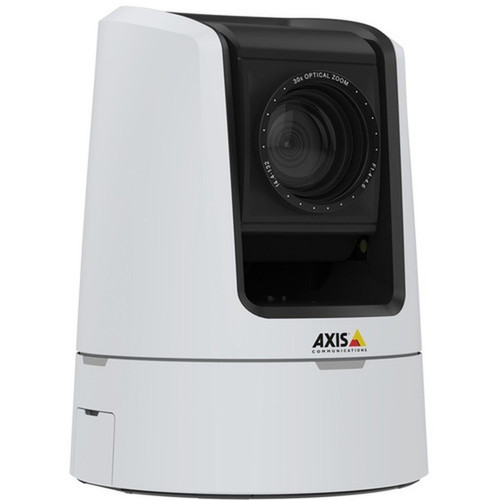

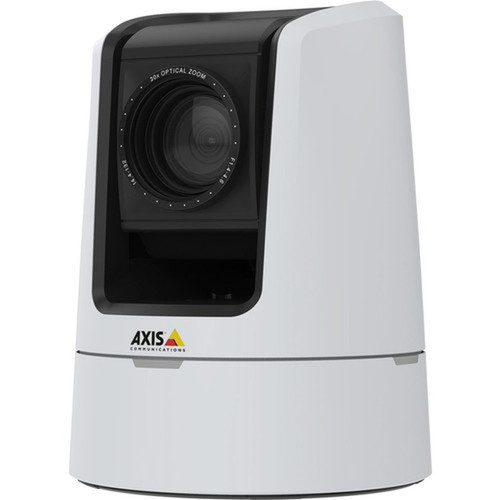

AXIS 01966-004 V5925 PTZ Network Camera - 2 Megapixel Full HD - 30x Optical Zoom - Indoor - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The V5925's imaging system features a varifocal lens with a focal range from 4.4 mm to 132 mm, providing wide-angle coverage and detailed telephoto views. The f/1.4 to f/4.6 aperture range ensures good low-light performance, while shutter speeds from 1/10000 second to 1 second accommodate both fast motion and low-light scenes.

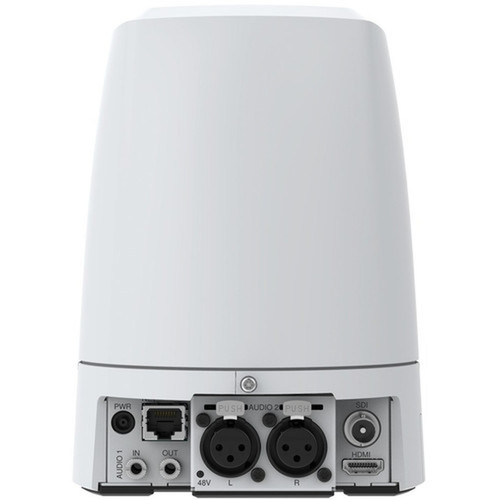

Network connectivity is handled through a wired RJ-45 interface, supporting remote management and real-time monitoring. The camera includes HDMI and 3G-SDI outputs for local viewing and integrates with SD card storage for onboard recording.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The V5925 stands out with its combination of high-resolution imaging, extensive zoom capability, and robust feature set designed for professional surveillance environments.
High-Performance Zoom
The 30x optical zoom allows operators to capture detailed views of distant subjects without sacrificing image quality, making it ideal for monitoring large indoor spaces.
- 4.4 mm to 132 mm focal range
- Maintains Full HD resolution throughout zoom range
Advanced Video Processing
Support for H.265 and H.264 compression reduces bandwidth and storage requirements while delivering smooth 60 fps video for real-time monitoring.
- Multiple codec options including Motion JPEG
- Efficient bandwidth utilization
Comprehensive Security Features
Built-in security measures including password protection, HTTPS encryption, and removable storage options ensure surveillance data remains protected.
- SD card local storage
- Encrypted communication channels
Deployment / Use Cases
The AXIS V5925 is specifically designed for indoor surveillance applications where detailed monitoring of large areas is required. Its PTZ capabilities and high zoom ratio make it suitable for environments where camera placement flexibility is limited but coverage needs are extensive.
Common deployment scenarios include retail stores, warehouses, corporate offices, educational facilities, and healthcare environments. The camera's auto-tracking and motion detection features enhance its effectiveness in monitoring high-traffic areas or securing sensitive locations.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail Security
Monitor cash registers, entrances, and high-value merchandise areas with the ability to zoom in on suspicious activity while maintaining wide-area coverage.
Corporate Monitoring
Secure lobbies, data centers, and restricted access areas with detailed video evidence collection and remote management capabilities.
Physical Profile
The V5925 features a compact white housing measuring 7.09 inches in height and 5.35 inches in diameter, designed for discreet installation in indoor environments. The camera supports both wall and ceiling mounting with included hardware, providing flexible placement options. The 3.31-pound weight ensures stable operation while allowing for secure mounting on various surfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.09" (180 mm), 3.31 lb (1500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 7.09" (180 mm)
- Weight
- 3.31 lb (1500 g)
- Length
- 4.4 mm (0.17")
What's in the Box
The camera ships with all necessary components for immediate deployment in typical surveillance installations.
Highlights
- 2-megapixel Full HD resolution at 60 fps
- 30x optical zoom with varifocal lens
- H.265 and H.264 video compression support
- PTZ control with auto-tracking capability
- Day/night operation with removable IR filter
- SD card local storage option
- Wall and ceiling mounting flexibility
- Password protection and HTTPS encryption
- HDMI and 3G-SDI video outputs
- 5-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 01966-004 |
| Brand Name | AXIS |
| Product Series | V59 |
| Product Model | V5925 |
| Product Name | V5925 PTZ Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 62°-2.3° - Vertical field of view: 37°-1.3° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC),H.264,H.264 (MP),H.264 BP,H.264 HP,H.265 (MPEG-H Part 2/HEVC),H.265,H.265 (MP),Motion JPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 132 mm (5.20") |
| Lens Included | Yes |
| Minimum Aperture | f/4.6 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 30x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 13 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount,Ceiling Mount |
| Height | 7.09" (180 mm) |
| Diameter | 5.35" (136 mm) |
| Weight (Approximate) | 3.31 lb (1500 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Features | PTZ,Day/Night,Removable IR Cut-off Filter,White Balance,Defog,Microphone In,Password Protection,HTTPS Encryption,SD Card Local Storage,Motion Detection,Auto Tracking |
| Indoor/Outdoor | Indoor |
| Package Contents | V5925 PTZ Camera Power Supply Wall/Ceiling Mount Terminal Connector for I/O Installation Guide Windows Decoder User License Camstreamer 3-Month Trial |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum resolution of the AXIS V5925 camera?
The AXIS V5925 captures video at 2-megapixel resolution, which translates to 1920 x 1080 pixels in Full HD format. This resolution provides clear, detailed imagery suitable for identifying subjects and reading text in surveillance applications. The camera maintains this resolution throughout its 30x optical zoom range.
Does this camera support remote management and monitoring?
Yes, the V5925 supports full remote management through its wired network connection. Administrators can control PTZ functions, adjust settings, and view live video feeds from any network-connected device. The camera includes password protection and HTTPS encryption to secure remote access sessions.
What type of storage does the V5925 support for video recording?
The camera supports local storage via memory cards, allowing for onboard recording without requiring a separate network video recorder. This provides redundancy and quick access to recent footage. The V5925 is also compatible with network-attached storage solutions and video management systems for centralized recording.
Can the V5925 operate in low-light conditions?
Yes, the camera features day/night functionality with a removable IR cut-off filter, allowing it to capture usable imagery in various lighting conditions. The f/1.4 maximum aperture enhances low-light performance, while adjustable shutter speeds from 1/10000 second to 1 second accommodate different lighting scenarios.
What mounting options are available for this camera?
The V5925 supports both wall and ceiling mounting, with all necessary hardware included in the package. The compact white housing measures 7.09 inches in height and 5.35 inches in diameter, making it suitable for discreet installation in indoor environments. The 3.31-pound weight ensures stable mounting on various surfaces.
What video compression formats does the camera support?
The V5925 supports multiple video compression formats including H.265 (HEVC), H.264 (AVC), and Motion JPEG. H.265 provides approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements while maintaining image quality. This flexibility allows administrators to optimize for either bandwidth efficiency or compatibility with existing systems.
