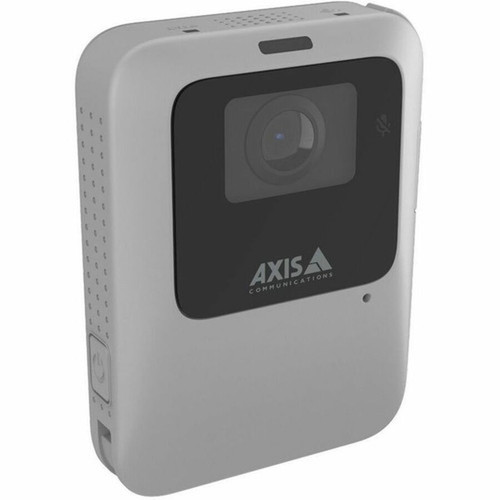

AXIS 02644-024 W110 Body Worn Camera - 5-Pack - Full HD 1080p - Wireless - IP54/IP67 - Gray
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AXIS W110 captures Full HD video at 1920 x 1080 resolution with a maximum frame rate of 30 fps, ensuring smooth, detailed recordings. It utilizes an RGB CMOS image sensor measuring 1/2.8" for enhanced light sensitivity and color accuracy. The fixed lens has a focal length of 1.9 mm (0.07") with a maximum aperture of f/2.2, providing a wide field of view of 140° horizontally and 91° vertically for comprehensive coverage.
Video compression is handled by H.264H (MPEG-4 Part 10/AVC), optimizing bandwidth and storage efficiency without compromising quality. Exposure control ranges from a shortest shutter speed of 1/22000 second to a longest of 1/25 second, accommodating varying lighting conditions. The camera supports dual sensors and includes electronic image stabilization and wide dynamic range (WDR) to improve image clarity in high-contrast environments.
Key Product Advantages
The AXIS W110 stands out with its integrated wireless capabilities and rugged design, offering practical benefits for mobile security operations. Its combination of high-definition video, built-in audio, and robust construction makes it a versatile tool for capturing critical incidents with clarity and reliability.
Wireless Flexibility
Wi-Fi and Bluetooth connectivity enable untethered operation, allowing users to move freely without being constrained by cables. This supports real-time streaming and remote management, enhancing operational efficiency and deployment options in field settings.
- Supports IEEE 802.1X authentication
- HTTPS encryption for secure data transmission
- Remote management capability
Built-in Audio Features
Equipped with a built-in microphone and speaker, the W110 facilitates two-way audio communication and audio recording. This adds an extra layer of context to video footage, useful for interviews, commands, or ambient sound capture during monitoring.
- Integrated microphone for clear audio pickup
- Speaker for playback or communication
- Enhances evidence quality with synchronized audio
Durability and Compliance
With IP54 and IP67 ratings, the camera is protected against dust ingress and water immersion, suitable for outdoor or harsh environments. It is TAA compliant and meets environmental standards like RoHS and REACH, ensuring regulatory adherence and sustainable use.
- Rugged construction for field durability
- TAA compliant for government procurement
- Environmentally friendly materials
Deployment / Use Cases
The AXIS W110 Body Worn Camera is tailored for scenarios where mobile, high-quality video surveillance is critical. Its wireless design and body-worn form factor make it particularly effective for personnel who need to document activities hands-free while maintaining mobility and situational awareness.
In law enforcement and security operations, the camera provides reliable evidence collection during patrols, arrests, or public events, with features like vibration detection alerting to potential tampering. For industrial and inspection roles, it enables visual documentation of equipment checks, safety audits, or remote site assessments, with its wide temperature range supporting use in varied climates. Event management teams can leverage it for crowd monitoring, incident response, or staff coordination, benefiting from the built-in audio for communication and the magnet mount for easy attachment to uniforms or gear.
Public Safety and Law Enforcement
Ideal for police officers, security guards, and emergency responders needing to record interactions, gather evidence, or monitor situations in real-time. The wireless connectivity allows for immediate data upload and remote oversight.
Industrial and Field Inspections
Suited for inspectors, maintenance crews, or quality assurance personnel who require visual documentation of work sites, machinery, or safety protocols. The IP ratings ensure performance in dusty or wet industrial environments.
Physical Profile
The AXIS W110 features a compact, lightweight design weighing approximately 3 oz (85 g), making it comfortable for extended wear without causing fatigue. Its gray color provides a professional, low-profile appearance suitable for uniform integration. The included AXIS TW1106 magnet mount offers versatile attachment options, allowing secure placement on clothing, helmets, or equipment for stable video capture during movement.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3 oz (85 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 3 oz (85 g)
- Length
- 1.9 mm (0.07")
What's in the Box
Each unit includes the essential components for immediate deployment, ensuring a complete out-of-the-box solution for body-worn surveillance.
Highlights
- Full HD 1080p video at 30 fps for clear, detailed recordings
- Wireless connectivity with Wi-Fi and Bluetooth for flexible, cable-free operation
- Built-in microphone and speaker for audio capture and two-way communication
- IP54 and IP67 ingress protection against dust and water
- Wide 140° horizontal field of view for comprehensive coverage
- Electronic image stabilization and wide dynamic range for improved video quality
- TAA compliant and meets RoHS/REACH environmental standards
- 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02644-024 |
| Brand Name | AXIS |
| Product Model | W110 |
| Product Name | W110 Body Worn Camera |
| Packaged Quantity | 5 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Camera Iris | Fixed |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 140° Vertical field of view: 91° |
| Number of Sensors | 2 |
| Video | |
| Video Formats | H.264H (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.9 mm (0.07") |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/22000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wireless |
| Remote Management | Yes |
| Wireless Technology | Bluetooth,Wi-Fi |
| Protocols | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2),IEEE 802.1AR,IEEE 802.1X,TLS v1.2,TLS v1.3 |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Weight (Approximate) | 3 oz (85 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Built-in Microphone,Built-in Speaker,Electronic Image Stabilization,Wide Dynamic Range,Ingress Protection,HTTPS Encryption,Vibration Detection |
| Package Contents | W110 Body Worn Camera AXIS TW1106 Magnet Mount |
| Ingress Protection Rating | IP54,IP67 |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What video resolution does the AXIS W110 support?
The AXIS W110 captures Full HD video at a maximum resolution of 1920 x 1080 pixels. This ensures high-definition footage with clear details, suitable for evidence collection and monitoring applications where visual clarity is critical.
Is the AXIS W110 camera wireless?
Yes, the AXIS W110 features wireless connectivity through Wi-Fi and Bluetooth technologies. This allows for cable-free operation, enabling greater mobility and flexibility during deployment, with support for remote management and secure data transmission via protocols like IEEE 802.1X and HTTPS encryption.
What is the field of view of this body worn camera?
The camera offers a wide field of view of 140° horizontally and 91° vertically. This broad coverage helps capture comprehensive scenes without needing to adjust position frequently, making it effective for monitoring dynamic environments or wide areas.
How durable is the AXIS W110 for outdoor use?
The AXIS W110 is built for durability with ingress protection ratings of IP54 and IP67, meaning it is dust-protected and water-resistant. It operates in temperatures from -4°F to 113°F (-20°C to 45°C) and up to 100% humidity, making it suitable for harsh outdoor or industrial conditions.
Does the AXIS W110 include audio capabilities?
Yes, the camera has a built-in microphone and speaker, allowing for audio recording and two-way communication. This enhances the context of video footage and supports interactive use cases like interviews or remote instructions during surveillance operations.
What is included in the package for the AXIS W110 5-pack?
The 5-pack includes five sets, each containing a W110 Body Worn Camera and an AXIS TW1106 magnet mount. This provides all necessary components for immediate deployment, ensuring users can quickly equip personnel with a complete body-worn surveillance solution.
What display size or resolution is listed?
It features a display specification of 1920 x 1080, giving you clear visuals for work and media use.
