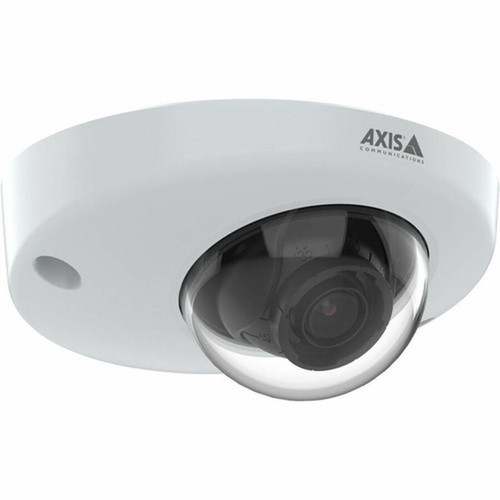

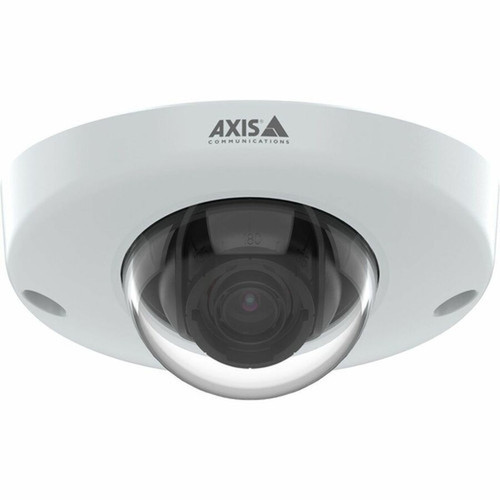

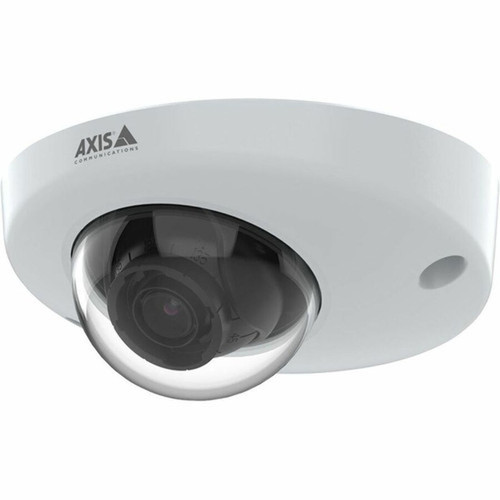

AXIS 02501-001 WizMind M3905-R Outdoor Dome Network Camera - 2MP Full HD - Color - PoE - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video in H.264, H.265, and Motion JPEG formats, offering flexibility for storage and bandwidth optimization. The fixed 3.6 mm lens provides a wide 88° horizontal field of view, covering broad areas with minimal distortion. Exposure control ranges from 1/19000 to 1/5 second, allowing crisp imaging in varying light conditions, supported by 3D digital noise reduction and backlight compensation.
Network connectivity is via Fast Ethernet with an RJ-45 port, supporting remote management for configuration and monitoring. Storage options include local memory card support, enabling on-device recording without additional network video recorder (NVR) dependencies. The camera operates on wired connectivity, ensuring stable, uninterrupted video streams for continuous surveillance.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Image Sensor Size, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The M3905-R combines high durability with advanced video intelligence, making it a standout choice for outdoor security deployments. Its IP67 and IK10 ratings ensure resistance to dust, water, and physical impacts, allowing it to withstand harsh weather and potential vandalism. This resilience, paired with a wide operating temperature range from -22°F to 131°F, guarantees reliable performance in extreme climates.
Advanced Video Analytics
Includes motion detection, face detection, and alarm triggering for proactive security monitoring.
- Motion Detection
- Face Detection
- Privacy Masking
- Region of Interest
Enhanced Imaging Features
Technologies like defog, built-in HLC (Highlight Compensation), and day/night functionality improve image clarity in challenging conditions.
- Defog
- Built-in HLC
- Day/Night Mode
- 3D Noise Reduction
Deployment / Use Cases
Ideal for outdoor surveillance where environmental toughness and high-quality video are paramount. Common applications include securing commercial properties, industrial sites, educational campuses, and public infrastructure. The dome design offers a discreet profile, reducing visual obtrusiveness while providing vandal resistance.
In retail environments, this camera supports loss prevention by monitoring entrances, parking areas, and loading docks. For critical infrastructure, such as transportation hubs or utilities, its TAA compliance ensures it meets regulatory requirements for government and public-sector deployments. The PoE capability simplifies installation in hard-to-wire locations, like high ceilings or exterior walls, making it a practical solution for both new builds and retrofits.
Perimeter Security
Monitor fences, gates, and boundaries with wide-angle coverage and night vision.
Public Safety
Deploy in parks, streets, or buildings for general surveillance and incident documentation.
Physical Profile
The dome form factor measures 1.97" (50 mm) in height and 4.33" (110 mm) in diameter, offering a compact, low-profile design suitable for ceiling or wall mounting. Its lightweight construction at 8.50 oz (241 g) facilitates easy installation without requiring heavy-duty supports. The housing is built to endure outdoor elements, with an ingress protection rating of IP67 for dust and water resistance and an impact protection rating of IK10 for mechanical robustness.
- Height
- 1.97" (50 mm)
- Weight
- 8.50 oz (241 g)
- Length
- 3.6 mm (0.14")
Highlights
- 2-megapixel Full HD resolution for clear, detailed surveillance video
- Outdoor-rated with IP67 and IK10 protection against dust, water, and impacts
- Power over Ethernet (PoE) simplifies installation and reduces cabling
- Wide 88° horizontal field of view covers expansive areas
- Advanced features include motion detection, face detection, and privacy masking
- TAA compliant for use in government and public-sector projects
- Operates in temperatures from -22°F to 131°F (-30°C to 55°C)
- Supports H.264, H.265, and Motion JPEG video formats
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02501-001 |
| Brand Name | AXIS |
| Product Line | WizMind |
| Product Model | M3905-R |
| Product Name | M3905-R Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.9" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 88° Vertical field of view: 47° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/19000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Form Factor | Dome |
| Height | 1.97" (50 mm) |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 8.50 oz (241 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Motion Detection,Audio Compression,Built-in IR LED,Day/Night,3D Digital Noise Reduction,Region of Interest,Defog,Privacy Masking,Alarm Triggering,Face Detection,Back Light Compensation (BLC),Built-in HLC |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| TAA Compliant | Yes |
FAQ
What is the resolution of this AXIS camera?
The AXIS WizMind M3905-R offers 2-megapixel resolution, delivering Full HD video at 1920 x 1080 pixels. This provides sharp, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage.
Is this camera suitable for outdoor use?
Yes, this camera is designed for outdoor deployment with an IP67 rating for dust and water resistance and an IK10 impact protection rating. It operates in temperatures from -22°F to 131°F (-30°C to 55°C) and includes built-in IR LEDs for night vision, making it durable in harsh environments.
How is the camera powered?
It uses Power over Ethernet (PoE), which allows both data and power to be delivered through a single Ethernet cable. This simplifies installation by eliminating the need for a separate power source near the camera, ideal for remote or hard-to-access locations.
What video formats does the camera support?
The camera supports H.264, H.265, and Motion JPEG video formats. H.265 offers efficient compression for reduced bandwidth and storage needs, while H.264 ensures compatibility with most recording systems. Motion JPEG provides high-quality still images.
Does this camera include advanced surveillance features?
Yes, it includes features like motion detection, face detection, privacy masking, and alarm triggering. These intelligent analytics help automate monitoring, reduce false alarms, and enhance security by focusing on relevant events and areas of interest.
What is the field of view for this camera?
The fixed 3.6 mm lens provides an 88° horizontal and 47° vertical field of view. This wide angle allows coverage of large areas such as parking lots or building facades, minimizing the number of cameras needed for comprehensive surveillance.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
