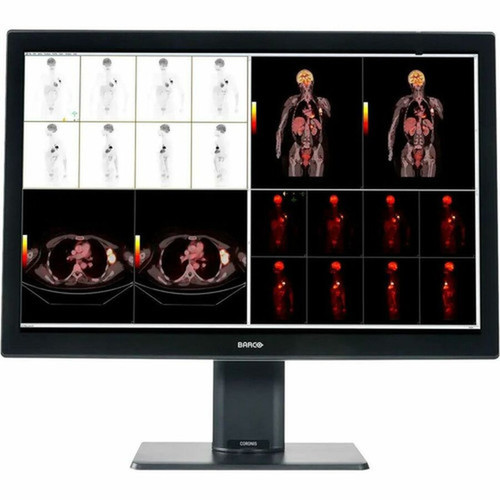

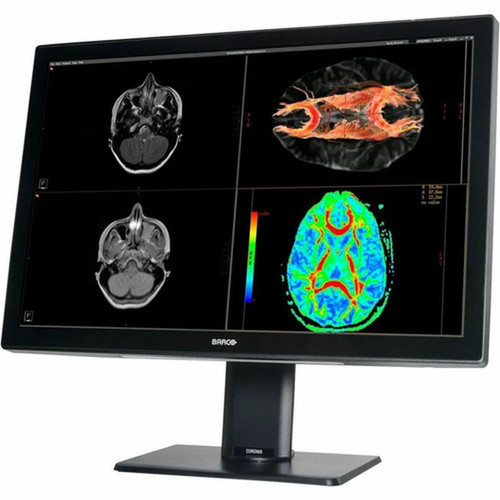

Barco Coronis Fusion MDCCâ€'6530 30" Class WQSXGA LED Monitor - 16:10 - Black, White - 30.4" Viewable - In-plane Switching (K9602958)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Coronis Fusion MDCC-6530 Widescreen LED Monitor
- User Guide
- Documentation Disc
- System Sheet
- Video Cables
- Mains Cables
- USB Cable
Number of Screens: 1
Screen Size Class: 30"
Viewable Screen Size: 30.4"
Screen Mode: WQSXGA
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 18 ms
Response Time Details: 18 ms (Tr+Tf)/2
Aspect Ratio: 16:10
Pixel Pitch: 0.19950 mm x 0.19950 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Features: Digital Uniformity Correction,SteadyColor Calibration Technology,Ambient Light Sensor,I-Guard,Integrated Front Sensor (IFS),Anti-reflective,Protective Glass,Wide Viewing Angle,Picture Archiving and Communication System (PACS),Ambient Light Compensation (ALC)
Adjustable Stand: Yes
Stand Adjustments: Swivel,Height,Tilt
Active Display Area (H x V): 25.75" (654 mm) x 16.10" (409 mm)
Maximum Resolution: 3280 x 2048
Contrast Ratio: 2,000:1
Brightness: 1050 cd/m²
USB: Yes
DisplayPort: Yes
Number of DisplayPorts: 3
Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Number of USB 2.0 Upstream Ports: 1
Number of USB 2.0 Downstream Ports: 3
Built-in Devices: USB Hub
Operating Temperature Range: 32°F (0°C) to 95°F (35°C)
Operating Humidity Range: 20% to 85% (Non-condensing)
Maximum Power Consumption: 80 W
VESA Mount Compatible: Yes
Color Family: Dual Color
Product Color: Black,White
Height: 18.82" (478 mm)
Width: 28.11" (714 mm)
Depth: 2.91" (74 mm)
Height with Stand: 24.57" (624 mm)
Width with Stand: 28.11" (714 mm)
Depth with Stand: 9.45" (240 mm)
Weight (Approximate): 28.88 lb (13100 g)
Weight with Stand (Approximate): 39.02 lb (17700 g)
Compressed Height with Stand: 20.63" (524 mm)
Extended Height with Stand: 24.57" (624 mm)
Package Contents:
Application/Usage: Hospital
Environmental Compliance: Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS),China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 5 Year
- 30.4" viewable screen size enhances clarity and depth for immersive playback of movies, games, and high-resolution media
- LED backlight technology enhances brightness and contrast while using less power for vivid visuals and energy-efficient performance
- 18 ms response time minimizes flicker and motion artifacts, maintaining consistent clarity during rapid scene changes
- The 16:10 aspect ratio provides extra vertical space, making it ideal for multitasking, document editing, and creative workflows
- 1050 cd/m² brightness delivers vibrant screen visibility in bright rooms, ensuring clear content even under direct lighting
- Digital Uniformity Correction feature enhances stability and system control for consistent, uninterrupted performance
- 3280 x 2048 maximum resolution delivers razor-sharp detail and stable image performance
- LED Monitor ensures consistent operation during extended sessions across diverse usage scenarios
- The 30.4" monitor highlights WQSXGA display with resolution up to 3280 x 2048 pixels for ultra-wide, high-density visuals
- VESA mount support enables secure, space-saving installation on walls or arms to suit your preferred viewing setup
[custom-specifications]
| Specifications | |
| Manufacturer | Barco |
| Manufacturer Part Number | K9602958 |
| Manufacturer Website Address | http://www.barco.com |
| Brand Name | Barco |
| Product Line | Coronis Fusion |
| Product Model | MDCCâ€'6530 |
| Product Name | Coronis Fusion MDCC-6530 Widescreen LED Monitor |
| Product Type | LED Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 30" |
| Viewable Screen Size | 30.4" |
| Screen Mode | WQSXGA |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 18 ms |
| Response Time Details | 18 ms (Tr+Tf)/2 |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.19950 mm x 0.19950 mm |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Features | Digital Uniformity Correction,SteadyColor Calibration Technology,Ambient Light Sensor,I-Guard,Integrated Front Sensor (IFS),Anti-reflective,Protective Glass,Wide Viewing Angle,Picture Archiving and Communication System (PACS),Ambient Light Compensation (ALC) |
| Adjustable Stand | Yes |
| Stand Adjustments | Swivel,Height,Tilt |
| Active Display Area (H x V) | 25.75" (654 mm) x 16.10" (409 mm) |
| Video | |
| Maximum Resolution | 3280 x 2048 |
| Contrast Ratio | 2,000:1 |
| Brightness | 1050 cd/m² |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of DisplayPorts | 3 |
| Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 2.0 Upstream Ports | 1 |
| Number of USB 2.0 Downstream Ports | 3 |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 95°F (35°C) |
| Operating Humidity Range | 20% to 85% (Non-condensing) |
| Power Description | |
| Maximum Power Consumption | 80 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Color Family | Dual Color |
| Product Color | Black,White |
| Height | 18.82" (478 mm) |
| Width | 28.11" (714 mm) |
| Depth | 2.91" (74 mm) |
| Height with Stand | 24.57" (624 mm) |
| Width with Stand | 28.11" (714 mm) |
| Depth with Stand | 9.45" (240 mm) |
| Weight (Approximate) | 28.88 lb (13100 g) |
| Weight with Stand (Approximate) | 39.02 lb (17700 g) |
| Compressed Height with Stand | 20.63" (524 mm) |
| Extended Height with Stand | 24.57" (624 mm) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Hospital |
| Environmental Compliance | Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS),China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
