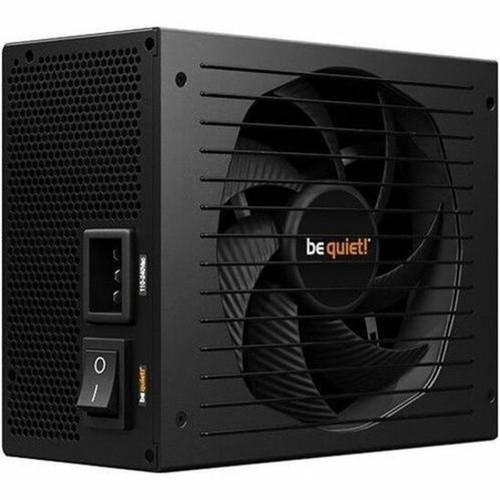

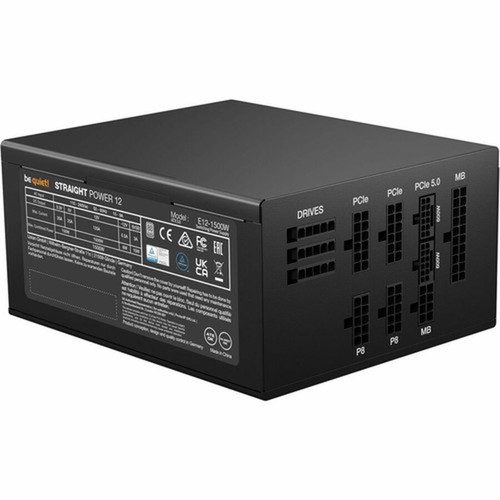

Be Quiet STRAIGHT Power 12 Internal Supply Black High Capacity Modular Design Input AC DC V BN518
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- STRAIGHT POWER 12 1500W Power Supply
- Screws
- Cable Ties
- User Manual
Specification Compliance: EPS12V v2.92,ATX 3.0
Efficiency: 93.9%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Fluid Dynamic Bearing
Fan Diameter: 135 mm (5.31")
Protection Type: Over Temperature,Over Current,Over Power,Over Voltage,Short Circuit,Under Voltage,Surge,Inrush Current,Overload
Modular: Yes
MTBF: 100000 Hour
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 25 A,5 V DC @ 25 A,5 V DC @ 3 A,12 V DC @ 125 A,-12 V DC @ 0.5 A
Output Power: 1.50 kW
Number of SATA Power Connectors: 9
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 4
Number of (4+4 pin) CPU Power Connectors: 1
Color Family: Black
Product Color: Black
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Weight (Approximate): 3.88 lb (1760 g)
Minimum Operating Temperature: 77°F (25°C)
Maximum Operating Temperature: 104°F (40°C)
Package Contents:
Energy Star: Yes
Energy Efficiency Certification: 80 Plus Platinum,ENERGY STAR 8.0
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Listan GmbH & Co. |
| Manufacturer Part Number | BN518 |
| Manufacturer Website Address | http://www.listan.de |
| Brand Name | be quiet! |
| Product Line | STRAIGHT POWER 12 |
| Product Model | Straight Power 12 1500W |
| Product Name | STRAIGHT POWER 12 1500W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | EPS12V v2.92,ATX 3.0 |
| Efficiency | 93.9% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 135 mm (5.31") |
| Protection Type | Over Temperature,Over Current,Over Power,Over Voltage,Short Circuit,Under Voltage,Surge,Inrush Current,Overload |
| Modular | Yes |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 25 A,5 V DC @ 25 A,5 V DC @ 3 A,12 V DC @ 125 A,-12 V DC @ 0.5 A |
| Output Power | 1.50 kW |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 9 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Weight (Approximate) | 3.88 lb (1760 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 77°F (25°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Energy Efficiency Certification | 80 Plus Platinum,ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 10 Year |
